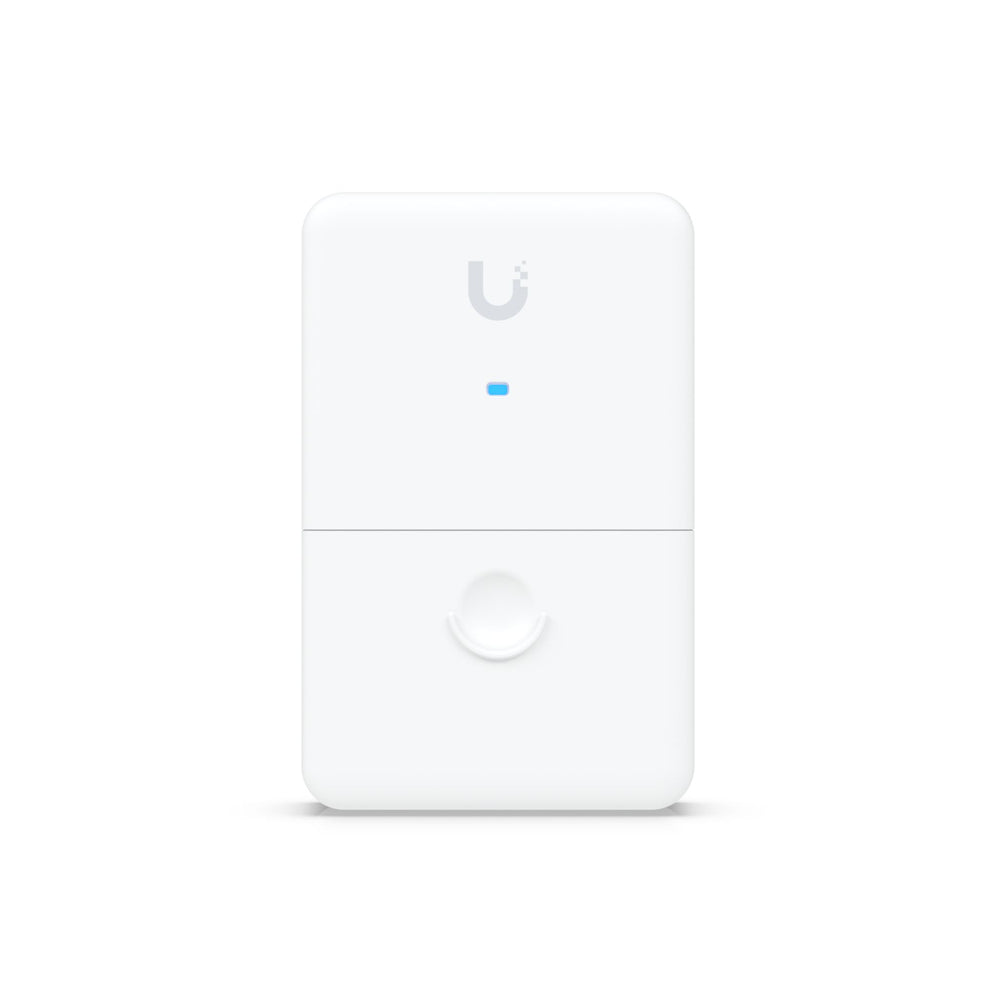

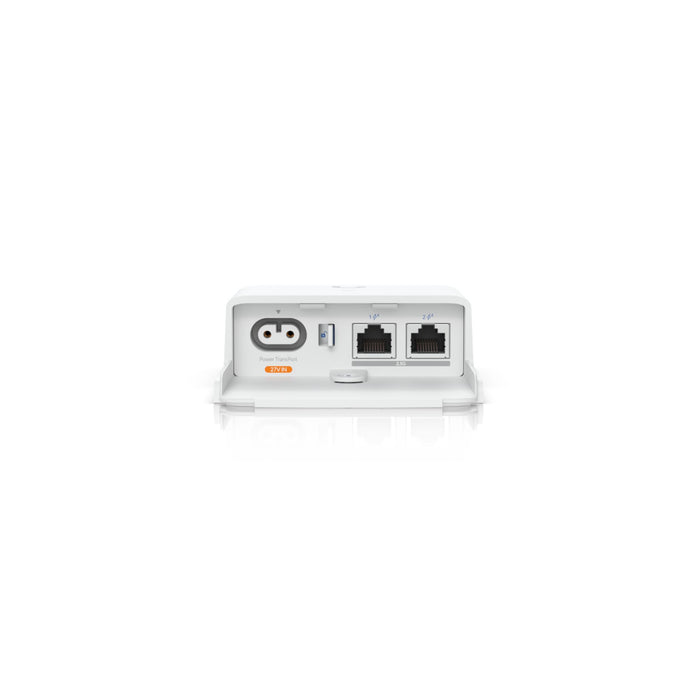

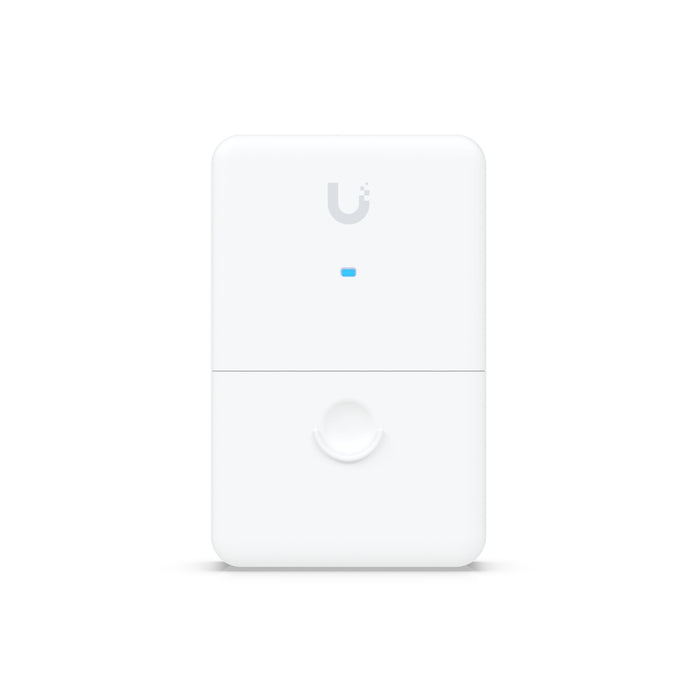

Ubiquiti UISP Dual-Power Injector
UISP Dual-Power Injector – 2-Port 100W PoE Adapter for UISP Wave Devices
The UISP Dual-Power Injector is a high-power, weatherproof PoE adapter designed to deliver up to 100W across two 2.5 GbE RJ45 ports with 48V passive PoE. It provides a reliable and flexible power solution for any UISP Wave model, supporting dual device operation from a single source.
Housed in a durable enclosure, the injector is ideal for outdoor deployments and can be pole or wall-mounted using the included hardware. Its 2.5 GbE connectivity ensures high-speed data transfer, making it perfect for long-range wireless installations, backhaul links, or point-to-point networks.
Tech Specs
Click here to view the UISP Dual-Power Injector datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 145.5 x 95.5 x 44 mm (5.7 x 3.8 x 1.7") |
| Weight | 280 g (9.9 oz) |
| Enclosure Material | UV-stabilized polycarbonate |
| Wind Survivability | Up to 200 km/h (125 mph) |
| Wind Loading | 10.5 N at 200 km/h (2.4 lbf at 125 mph) |
| Mounting |
Pole mount: 35 to 60 mm (1.37 to 2.36") on pipe outer diameter Wall mount |
| Weatherproofing | IPX5 |
| Hardware | |
| Networking Interface | (2) 2.5 GbE RJ45 ports |
| Power Method | (1) Power TransPort DC input 27V DC, 4.44A |
| Power Supply |
120W Power TransPort Adapter (not included) UISP Power UISP Power Pro |
| Output Voltage | 48V DC |
| Max. Output | Total 100W |
| LEDs | Blue: Power On |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Compatibility | |
| Supported Models |
Wave AP Wave AP Micro Wave Long-Range Wave Nano Wave Pro Wave Pico |
