Ubiquiti UniFi G3 Starter Kit Pro
UniFi G3 Starter Kit Pro – Complete UniFi Access Control Starter Bundle

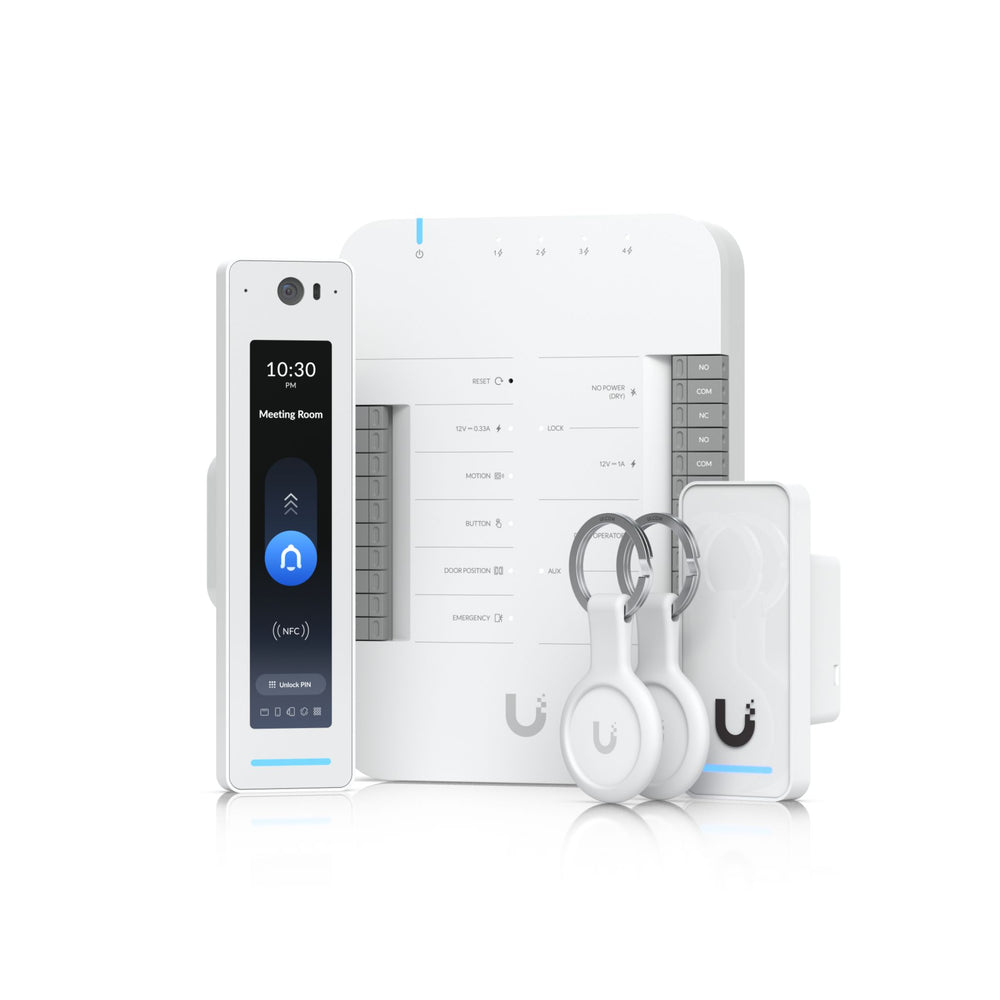

The UniFi G3 Starter Kit Pro provides everything needed to set up entry and exit control for a single door, making it the ideal starting point for secure access management. It includes a Door Hub, a G3 Reader Pro, and a G3 Reader for exit use (or entry for an additional door with a second Hub).
Designed for simple deployment, the kit also comes with two Pocket Keyfobs and support for Touch Pass credentials. To get started quickly, 10 free one-year Touch Passes are included, enabling mobile-based access for staff or visitors.
Seamlessly integrated with the UniFi Access platform, the G3 Starter Kit Pro delivers scalable, centralised access management for offices, retail, and enterprise facilities.
Tech Specs
| Device Specifications | |
|---|---|

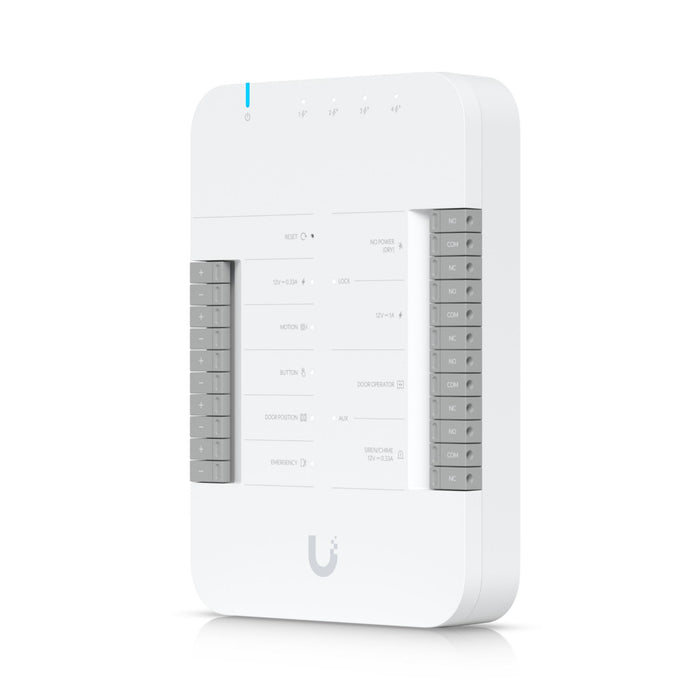

| Door Hub | |
| Dimensions | 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") |
| Supported Doors | 1 |
| Maximum User Count | 6,000 |
| Input Terminals | (2) Door exit request (1) Door position (1) Emergency |
| Power Method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weight | 363 g (12.8 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Mounting | DIN-rail (Included) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |

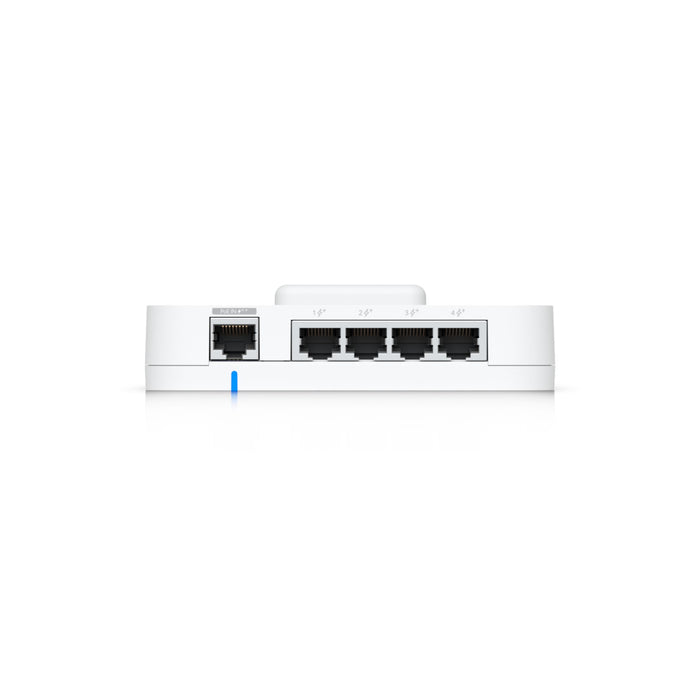

| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated) |
| Max. Power Consumption | 30W (Without PoE output) 50W (With PoE output) |
| Digital Input | Request to exit, request to enter, remote release, door position sensor |
| Dry Output Relay | Lock: 30V DC, 1A Aux: 30V DC, 1A |
| Powered Output Relay | Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A |
| LEDs | B/W |
| Button | (1) Factory-reset |
| Recommend Max. Cable Length | UA-Lock-Electric (400mA): 24 AWG 25 m, 22 AWG 42 m, 20 AWG 66 m, 18 UACC-Cable-DoorLockRelay 100 m UA-Lock-Magnetic-540kg (500mA): 24 AWG 20 m, 22 AWG 32 m, 20 AWG 51 m, 18 UACC-Cable-DoorLockRelay 80 m UA-Lock-Magnetic-270kg (800mA): 24 AWG 12 m, 22 AWG 20 m, 20 AWG 30 m, 18 UACC-Cable-DoorLockRelay 46 m Other locks (1A): 24 AWG 9 m, 22 AWG 15 m, 20 AWG 24 m, 18 UACC-Cable-DoorLockRelay 36 m |
| PoE Cabling Requirements | Cat 5e minimum 26 AWG for patch cords; 24 AWG for horizontal or riser cable |
| UL 294 Statement | Compliance with IEEE 802.3 (at or af) not verified as part of UL 294. Intended to comply with NEC, ANSI/NFPA 70, Article 725.121 |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number | UA-Hub-Door002, V01 |

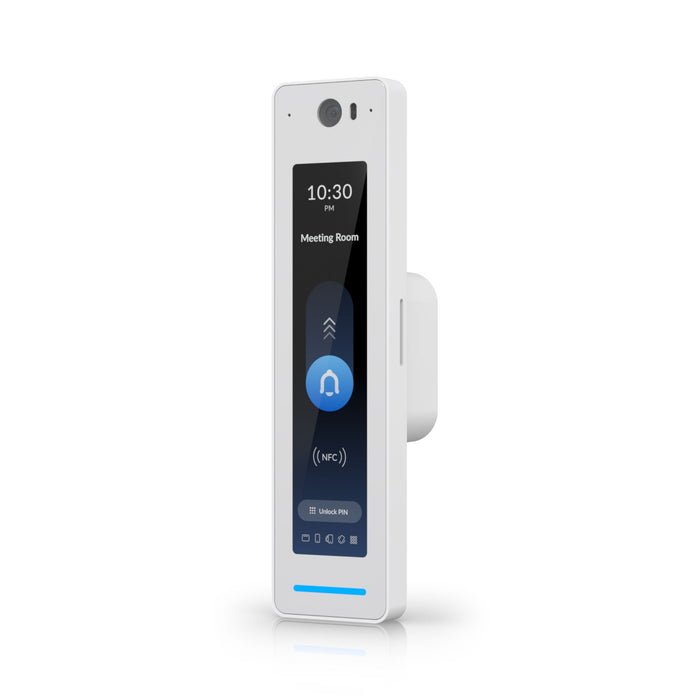

| G3 Reader Pro | |
| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| Integrated Camera | ✓ |
| NFC Card & Keyfob Access | ✓ |
| PIN Access | ✓ |
| Apple/Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| Two-Way Intercom & Doorbell Access | ✓ |
| Weatherproofing | IP55 |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | Wall, gang-box mount (Included) Angle mount, junction box (Optional) |
| Indoor and Outdoor Use | ✓ |
| Ambient Operating Temperature | Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor |
| Display | 120 mm (4.7") diagonal, Capacitive touch, 480 nits, Portrait, Resolution: 1280 x 286 px |
| Microphone | ✓ |
| Speaker | (1) Yes, 1.5W |
| LEDs | R/G/B/W/Amber |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T-T5T ECP 2.0 |
| PoE Cabling Requirements | Cat 5e minimum 26 AWG for patch cords; 24 AWG for horizontal or riser cable |
| UL 294 Statement | Compliance with IEEE 802.3 not verified as part of UL 294. Intended to comply with NEC, ANSI/NFPA 70, Article 725.121 |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number | UA-G3-Pro-W/UA-G3-Pro-B, V01 |

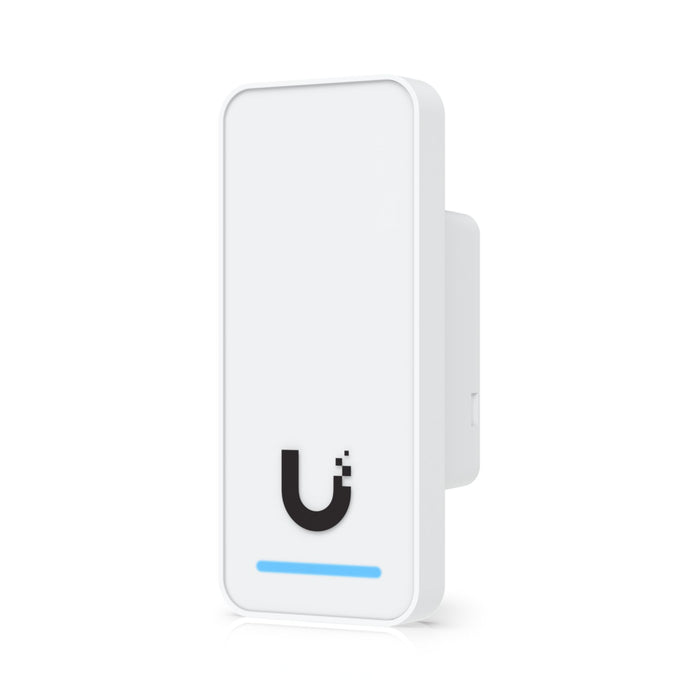

| G3 Reader | |
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
| NFC Card & Keyfob Access | ✓ |
| Apple/Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| Handwave Request to Exit | ✓ |
| Weatherproofing | IP55 |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | In-wall, gang box (Included) Junction box (Optional) |
| Indoor and Outdoor Use | ✓ |
| Ambient Operating Temperature | -30 to 45° C (-22 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor |
| Speaker | (1) Yes, 0.7W |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T-T5T ECP 2.0 |
| PoE Cabling Requirements | Cat 5e minimum 26 AWG for patch cords; 24 AWG for horizontal or riser cable |
| UL 294 Statement | Compliance with IEEE 802.3 not verified as part of UL 294. Intended to comply with NEC, ANSI/NFPA 70, Article 725.121 |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number | UA-G3, V01 |
| Pocket Keyfob | |
| Dimensions | 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29") |
| Weight | 16 g (0.56 oz) |
| Enclosure Material | Polycarbonate, stainless steel, silicone rubber |
| Weatherproofing | IP54 |
| NDAA Compliant | ✓ |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
| NFC Frequency | 13.56 MHz |
| NFC Technology | ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol |
| Certification | CE |
FAQs
Q: What is the Ubiquiti UA-G3-SK-Pro used for?
A: The UA-G3-SK-Pro is a professional mounting kit designed for UniFi G3 cameras, providing secure and adjustable installation for both indoor and outdoor environments.
Q: Is the UA-G3-SK-Pro suitable for outdoor installations?
A: Yes, it is weather-resistant and built to withstand outdoor conditions, protecting the camera while ensuring stable mounting.
Q: What mounting options does the UA-G3-SK-Pro support?
A: The kit supports pole, wall, and corner mounting, allowing flexible placement for optimal camera coverage.
Q: Does the UA-G3-SK-Pro allow camera angle adjustment?
A: Yes, it provides tilt and rotation adjustments, enabling precise positioning to achieve the desired field of view.
Q: Can the UA-G3-SK-Pro be used with other UniFi cameras?
A: It is specifically designed for UniFi G3 cameras; compatibility with other models may be limited depending on size and mounting requirements.
