Ubiquiti UniFi Gateway Max
UniFi Cloud Gateway Max – Compact 2.5G UniFi Gateway with Multi-WAN and NVR Storage
The UniFi Cloud Gateway Max is a compact UniFi OS Console that delivers full-stack network and application management in a space-saving form factor. Supporting over 30 UniFi devices and 300+ clients, it’s ideal for small business networks, branch offices, and advanced home setups requiring enterprise-grade control.
With 2.3 Gbps routing performance including IDS/IPS, it provides high-speed connectivity with enhanced security. Multi-WAN load balancing offers increased uptime and bandwidth optimisation, while the built-in 512 GB NVMe SSD enables UniFi Protect NVR functionality for local video recording.
A 0.96" LCM display provides real-time system status, and the unit is powered via USB-C with an adapter included for simple deployment. Running the full UniFi application suite, the Cloud Gateway Max offers a versatile solution for managing wired, wireless, and security devices in one platform.
Tech Specs
Click here to see the Ubiquiti Gateway Max datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 141.8 x 127.6 x 30 mm |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |

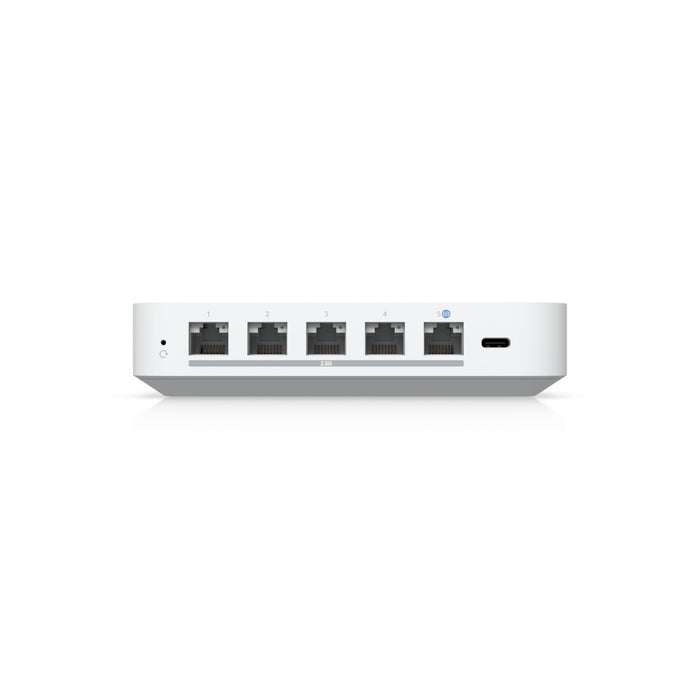

| Port Layout | 2.5 GbE RJ45 5 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ With CyberSecure |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | Site Magic ✓ |
| IPsec | ✓ |
| OpenVPN | ✓ |
| VPN Server | Teleport Zero-Configuration VPN ✓ WireGuard ✓ OpenVPN ✓ L2TP ✓ |
| VPN Client | OpenVPN ✓ WireGuard ✓ |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing | OSPF ✓ |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT | SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT ✓ |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| MAC Address Table Size | 2,000 |
| Hardware | |
| Max. Power Consumption | 9.6W |
| Power Method | USB type C (5V DC/3A) |
| Power Supply | USB type C (5V DC/3A) (Adapter included) |
| Supported Voltage Range | 100—240V AC |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 2 GB |
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| Management | Ethernet Bluetooth |
| LEDs | Ethernet ✓ System ✓ |
| Button | (1) Factory-reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements | UniFi Network Version 8.1.113 and later |
FAQs
Q: What is the Ubiquiti UXG-Max and what is it designed for?
A: The UXG-Max is a high-performance UniFi Next-Gen Gateway for enterprise networks, offering advanced routing, security, and dual-WAN connectivity.
Q: What are the WAN and LAN capabilities of the UXG-Max?
A: It includes dual 2.5 GbE RJ45 WAN ports, dual 2.5 GbE RJ45 LAN ports, and dual 10G SFP+ ports, enabling flexible and high-speed network design.
Q: Does the UXG-Max support advanced network security features?
A: Yes, it includes firewall protection, IDS/IPS, VLANs, VPN services, and deep packet inspection to safeguard against cyber threats.
Q: Can the UXG-Max be used without running UniFi Network on the device?
A: Yes, unlike the UDM series, the UXG-Max is a dedicated gateway that requires an external UniFi Network controller for management.
Q: How is the UXG-Max managed and monitored?
A: It’s managed via the UniFi Network application, either on a UniFi Cloud Key, UniFi OS Console, or self-hosted controller, with full remote access.
