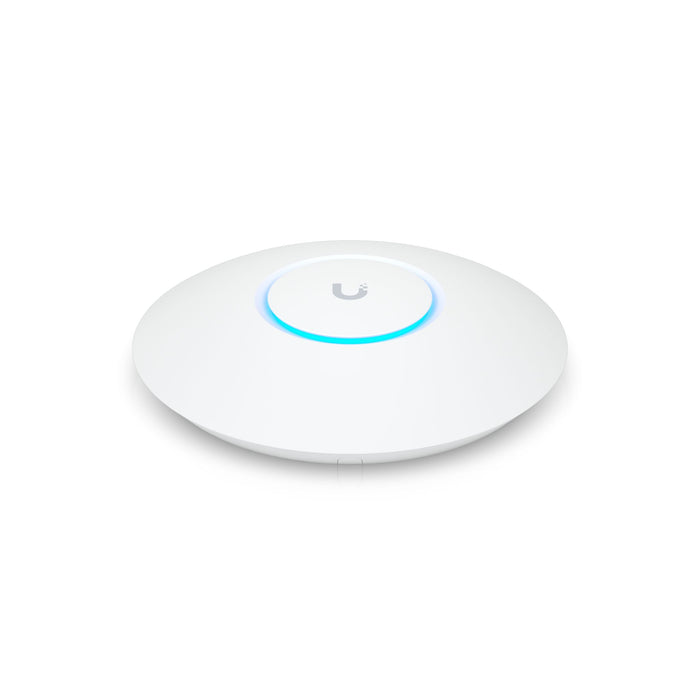

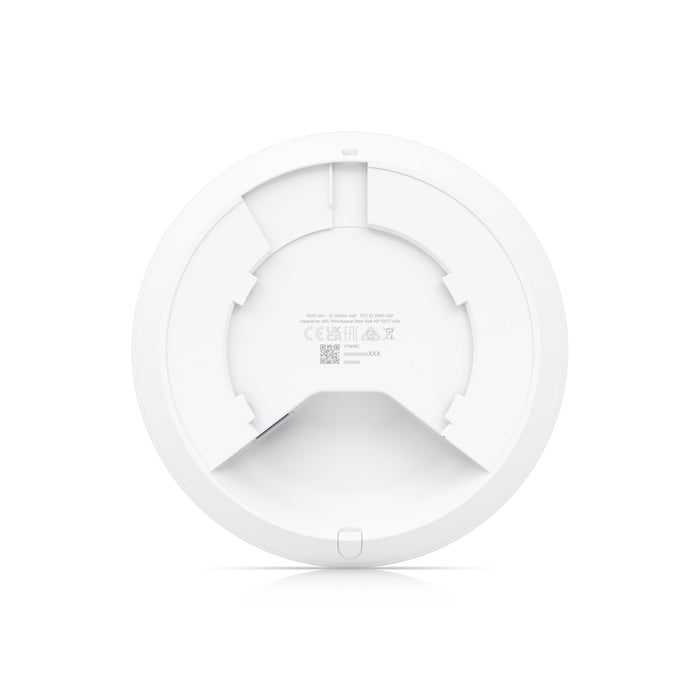

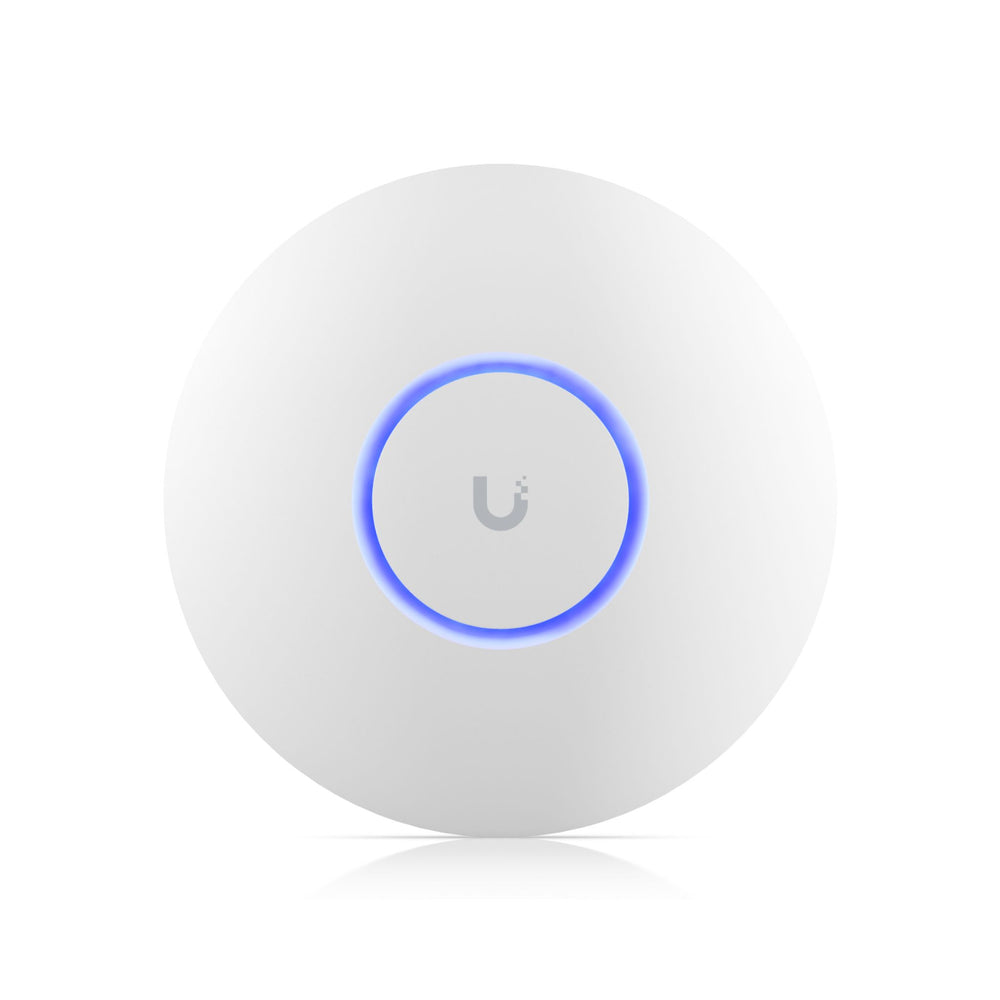

UniFi U6+ – Compact Ceiling-Mount WiFi 6 Access Point for High-Density Networks
The UniFi U6+ is a compact, ceiling-mounted WiFi 6 access point that delivers higher performance than the U6 Lite, with four spatial streams and dual-band WiFi 6 support for faster, more efficient connectivity. Providing coverage up to 140 m² (1,500 ft²) and supporting over 300 connected devices, it’s ideal for small to medium-sized business environments, shared workspaces, and hospitality venues.
Powered via PoE and featuring a GbE uplink, the U6+ is easy to deploy and integrates seamlessly into UniFi-managed networks. It offers improved capacity and throughput for high-density client environments, ensuring stable performance for modern applications including video conferencing, cloud collaboration, and IoT devices.
Designed for centralised management through the UniFi Network application, the U6+ combines enterprise-grade wireless capability with a discreet, space-saving form factor.
Tech Specs
Click here to see the Ubiquiti U6+ Datasheet.
| Device Specifications | |
|---|---|
| Overview | |

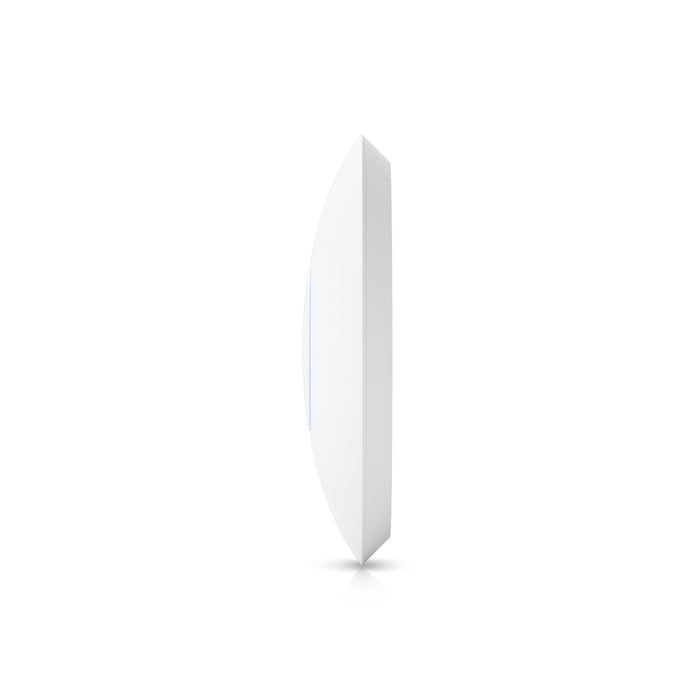

| Dimensions | Ø160 x 33 mm (Ø6.3 x 1.3") |
| WiFi Standard | WiFi 6 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | GbE |
| Mounting | Ceiling, Wall (Mounts Included) |
| Power Method | PoE |
| Performance | |
| MIMO | 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 2.4 Gbps (BW160) 2.4 GHz: 573.5 Mbps (BW40) |
| Antenna Gain | 5 GHz: 5.4 dBi 2.4 GHz: 3 dBi |
| Max. TX Power | 5 GHz: 23 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k RRM | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 9W |
| Supported Voltage Range | 44—57V DC |

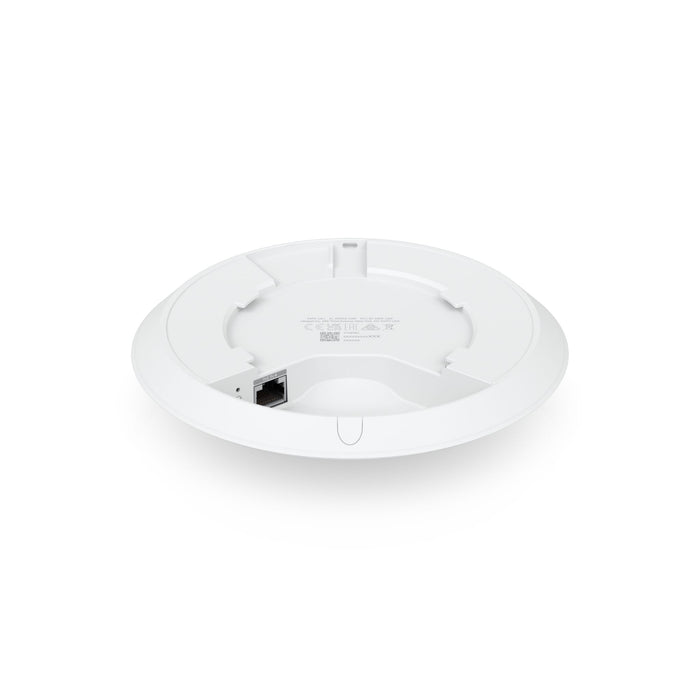

| Networking Interface | (1) GbE RJ45 port |
| Weight | Device: 338 g (11.9 oz) With mount: 413 g (14.6 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | ABS, SGCC steel |
| LEDs | System: White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel, SRRC |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network Version 7.3.76 and later |
FAQs
Q: What is the Ubiquiti U6+ and who is it designed for?
A: The UniFi U6+ is a compact WiFi 6 access point with 2×2 MU‑MIMO that’s ideal for homes, small offices, or any indoor space needing fast and efficient wireless coverage.
Q: What wireless performance does the U6+ deliver?
A: The U6+ supports up to 573.5 Mbps on 2.4 GHz and up to 2.4 Gbps on 5 GHz using OFDMA, MU‑MIMO, and 160 MHz channel width for low-latency, high-throughput connections.
Q: How many users can the UniFi U6+ support at once?
A: The U6+ can handle over 300 concurrent wireless clients, making it well suited for busy environments like classrooms, cafés, and conference spaces.
Q: What type of wired connection and power input does the U6+ require?
A: It features a single 1 GbE RJ45 uplink and is powered by 802.3af PoE. It works with any UniFi PoE switch or a compatible injector (not included).
Q: Does the U6+ support mounting flexibility and UniFi Controller integration?
A: Yes, it comes with wall and ceiling mounting kits and integrates seamlessly with UniFi Network Controller for easy centralised configuration and monitoring.
