Ubiquiti UniFi U7 Mesh
Please contact us for stocking information.

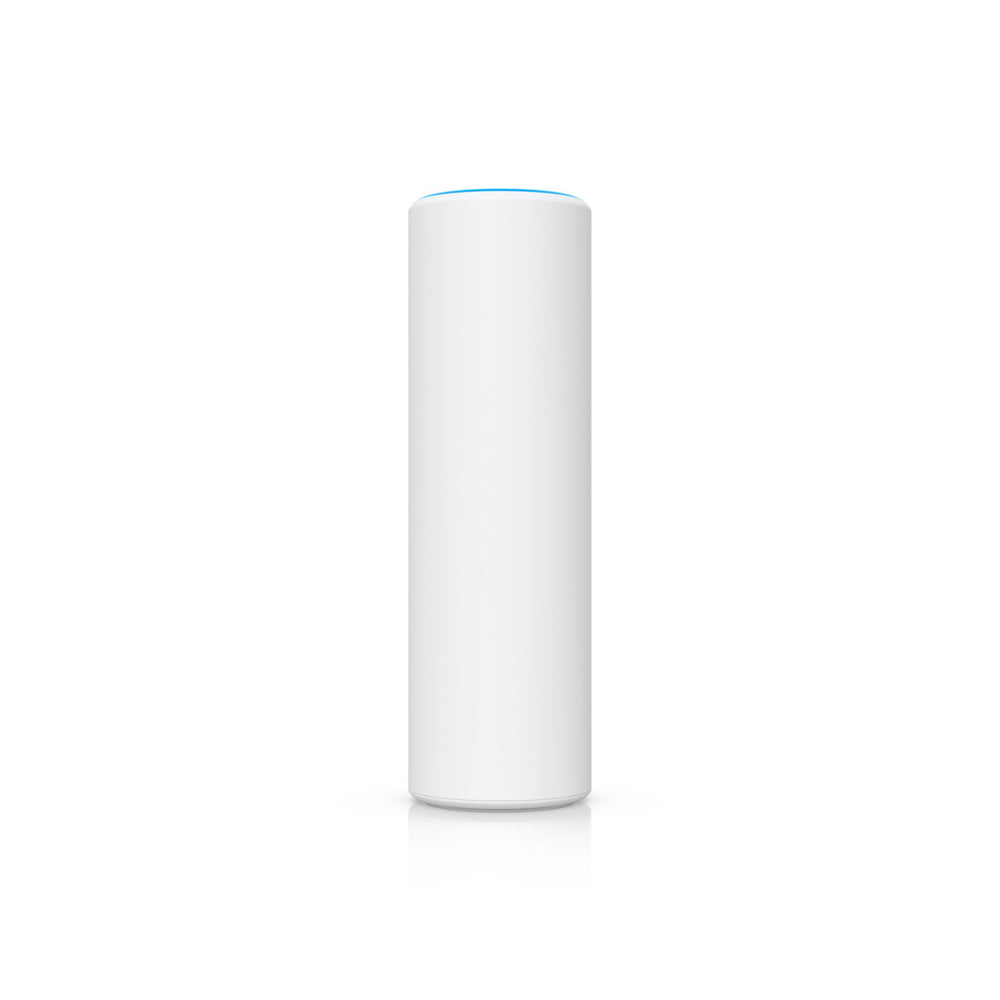

Ubiquiti UniFi U7 Mesh – Indoor/Outdoor WiFi 7 Access Point with 2.5 GbE PoE
The Ubiquiti UniFi U7 Mesh is a compact indoor and outdoor WiFi 7 access point designed to deliver fast, reliable wireless connectivity with flexible deployment options. Its cylindrical design integrates long-range antennas to provide consistent coverage across indoor spaces and outdoor environments.
Supporting dual-radio WiFi 7 with four spatial streams, the U7 Mesh can connect over 200 devices while maintaining strong throughput and low latency. A 2.5 GbE PoE-in RJ45 port provides high-speed wired backhaul and simplifies installation by delivering both power and data through a single cable.
With an IPX6 weatherproof rating, the UniFi U7 Mesh is built for dependable operation in exposed environments. It can be mounted on a wall or pole, or placed on a tabletop, making it well suited to extending wireless coverage across homes, offices, hospitality spaces, and outdoor areas.
Tech Specs
View the full Ubiquiti UniFi U7 Mesh datasheet here.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | ⌀48.5 x 159.5 mm (⌀1.9 x 6.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Wall Pole Table stand (Mounts included) |
| Weatherproofing | IPX6 (Installed with the outdoor mount) |
| Power Method | PoE |
| Performance | |
| MIMO | 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: Omnidirectional 6 dBi 5 GHz: Directional 10 dBi 2.4 GHz: 3 dBi |
| Max. TX Power | 5 GHz: 24 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | Custom Branding Landing Page: ✓ Voucher Authentication: ✓ Payment-Based Authentication: ✓ External Portal Server Support: ✓ Password Authentication: ✓ Guest Network Isolation: ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 13W |
| Includes PoE Adapter | ✓ |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g (11 oz) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |
| LEDs | System: W/B |
| Channel Bandwidth | HT 20/40 VHT 20/40/80/160 HE 20/40/80/160 EHT 20/40/80/160/240 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | Mobile App UniFi iOS™: Version 10.32.1 and later Android™: Version 10.35.1 and later |
FAQs
Q1. What is the Ubiquiti U7 Mesh (U7-Mesh) used for?
A. The Ubiquiti U7 Mesh (U7-Mesh) is a high-performance WiFi 7 mesh access point designed to extend wireless coverage across indoor and outdoor environments. It provides fast, reliable connectivity for homes, businesses, and campus networks while supporting seamless roaming between UniFi access points.
Q2. Does the U7-Mesh support WiFi 7 and high-density client environments?
A. Yes. The Ubiquiti U7 Mesh (U7-Mesh) supports the latest WiFi 7 standard, delivering improved throughput, lower latency, and better performance in high-density environments. This makes it ideal for offices, hospitality venues, and public spaces with many connected devices.
Q3. How does the U7-Mesh integrate with the UniFi Network platform?
A. The Ubiquiti U7 Mesh (U7-Mesh) integrates fully with the UniFi Network application, allowing administrators to configure wireless networks, monitor performance, manage connected clients, and deploy firmware updates from a centralized interface.
Q4. Can the U7-Mesh be used for both indoor and outdoor deployments?
A. Yes. The U7-Mesh features a durable, weather-resistant enclosure designed for both indoor and outdoor use. It is suitable for mounting on walls, poles, or outdoor structures to extend WiFi coverage across larger areas.
Q5. How is the U7-Mesh powered and installed?
A. The Ubiquiti U7 Mesh (U7-Mesh) is powered using Power over Ethernet (PoE), allowing both power and data to be delivered through a single Ethernet cable. This simplifies installation and makes it ideal for flexible mounting locations.
