Ubiquiti UniFi U7 Outdoor
UniFi U7 Outdoor – All-Weather WiFi 7 Access Point with Directional and Omni Antennas
The UniFi U7 Outdoor is a weatherproof WiFi 7 access point built for high-performance wireless coverage in outdoor environments. With four spatial streams and an integrated directional super antenna, it delivers up to 465 m² (5,000 ft²) of open space coverage, making it ideal for outdoor venues, campuses, marinas, and industrial sites.

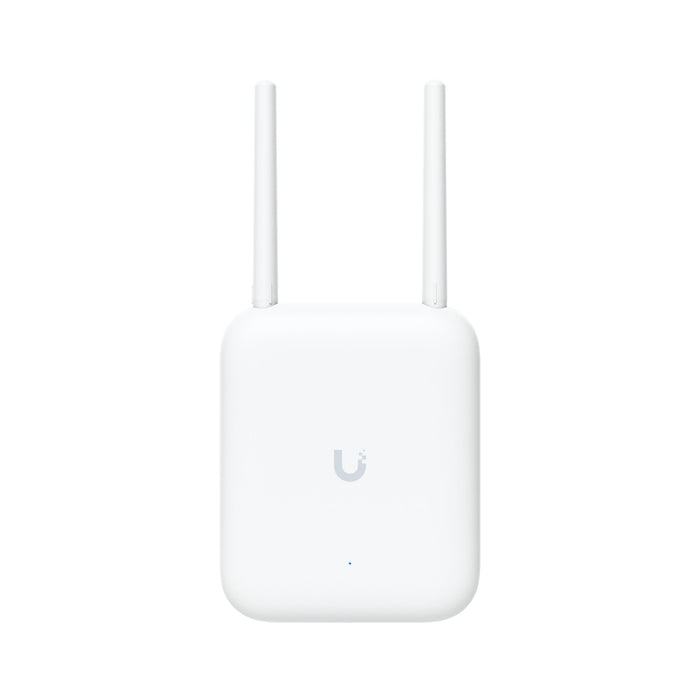

For deployment flexibility, the U7 Outdoor can be switched in software from the internal directional antenna to the included external omni antennas, allowing you to adapt coverage patterns as needed. Supporting over 250 connected devices, it features a 2.5 GbE uplink for high-speed backhaul and is powered via PoE+ for easy installation.
Its durable, weatherproof design and versatile wall or pole mounting make the U7 Outdoor a robust solution for reliable outdoor connectivity in challenging environments.
Tech Specs
Click here to see the Ubiquiti UniFi U7 Outdoor datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 170 x 208 x 54.5 mm |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 250+ |
| Uplink | 2.5 GbE |
| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX6 |
| Power Method | PoE+ |
| Performance | |
| MIMO | 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 5 GHz: Directional internal: 12.5 dBi, 45° x 45° External omni: 4 dBi, 360° x 30° 2.4 GHz: Directional internal: 8 dBi, 90° x 90° External omni: 3 dBi, 360° x 30° |
| Max. TX Power | 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | ✓ |
| Custom Branding Landing Page | ✓ |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 19W |
| Supported Voltage Range | 42.5—57V DC |

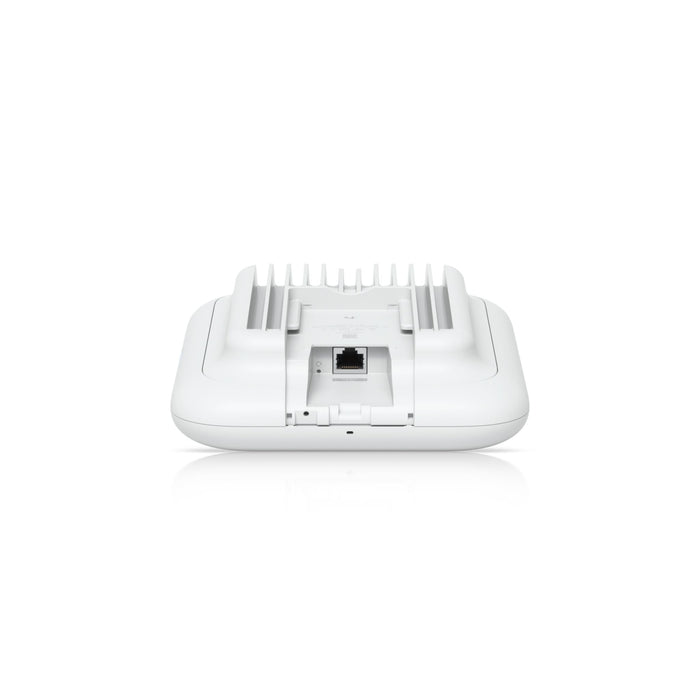

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | 1.2 kg (2.6 lb) |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.36" (25–60 mm) |

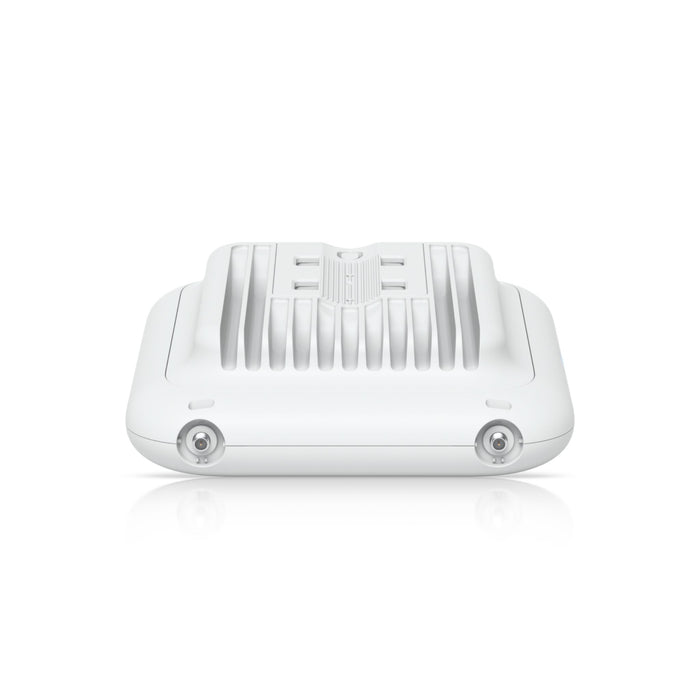

| Antennas | (1) Directional internal antenna (2) External omni antennas (2) RP-SMA connectors for external antenna |
| Antenna Beamwidth | 5 GHz: 45° 2.4 GHz: 90° |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, SGCC steel |
| LEDs | (1) Power: White/Blue (1) System: White/Blue (4) Mesh Signal: Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| Application Requirements | UniFi Network Version 8.2.93 and later |
FAQs
Q: What is the Ubiquiti U7‑Outdoor and where should it be deployed?
A: The U7‑Outdoor is a high-performance outdoor WiFi 7 access point, designed for deployment in gardens, campuses, stadiums, or any high-density outdoor environment.
Q: What wireless features does the U7‑Outdoor support?
A: It supports tri-band WiFi 7 with 2.4 GHz, 5 GHz, and 6 GHz radios, Multi-Link Operation (MLO), 4×4 MU‑MIMO, and 320 MHz channel width for ultra-fast wireless speeds and low latency.
Q: How is the U7‑Outdoor powered and connected?
A: The device includes a 2.5 GbE uplink and is powered via 802.3at PoE+ or higher. It supports standard Ethernet for backhaul and simple deployment.
Q: How many clients can the U7‑Outdoor support at once?
A: The U7‑Outdoor can handle over 500 concurrent clients, making it suitable for ultra-dense deployments like stadiums, public squares, or large outdoor venues.
Q: Is the U7‑Outdoor weatherproof and suitable for harsh conditions?
A: Yes, it features an IP67-rated housing to withstand rain, dust, and extreme temperatures, ensuring reliable outdoor operation year-round.
