Ubiquiti UniFi XG 6 Port PoE Switch (Gen1)

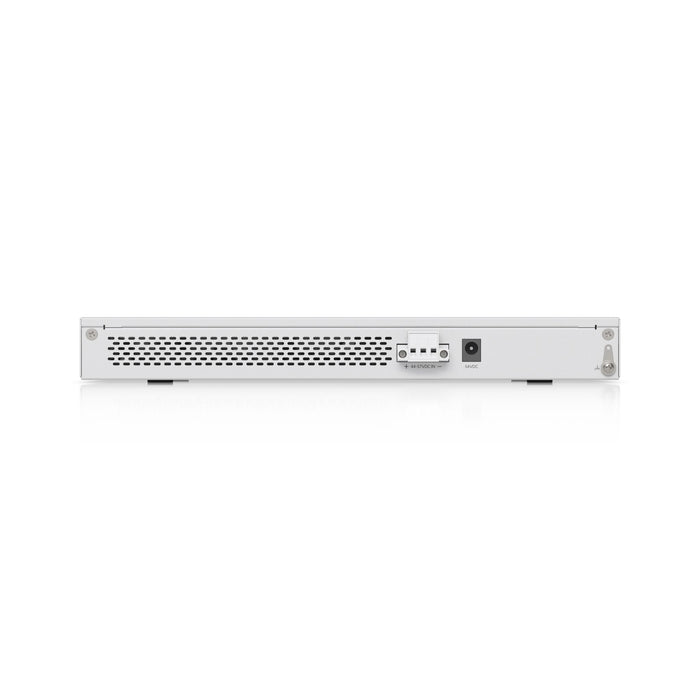

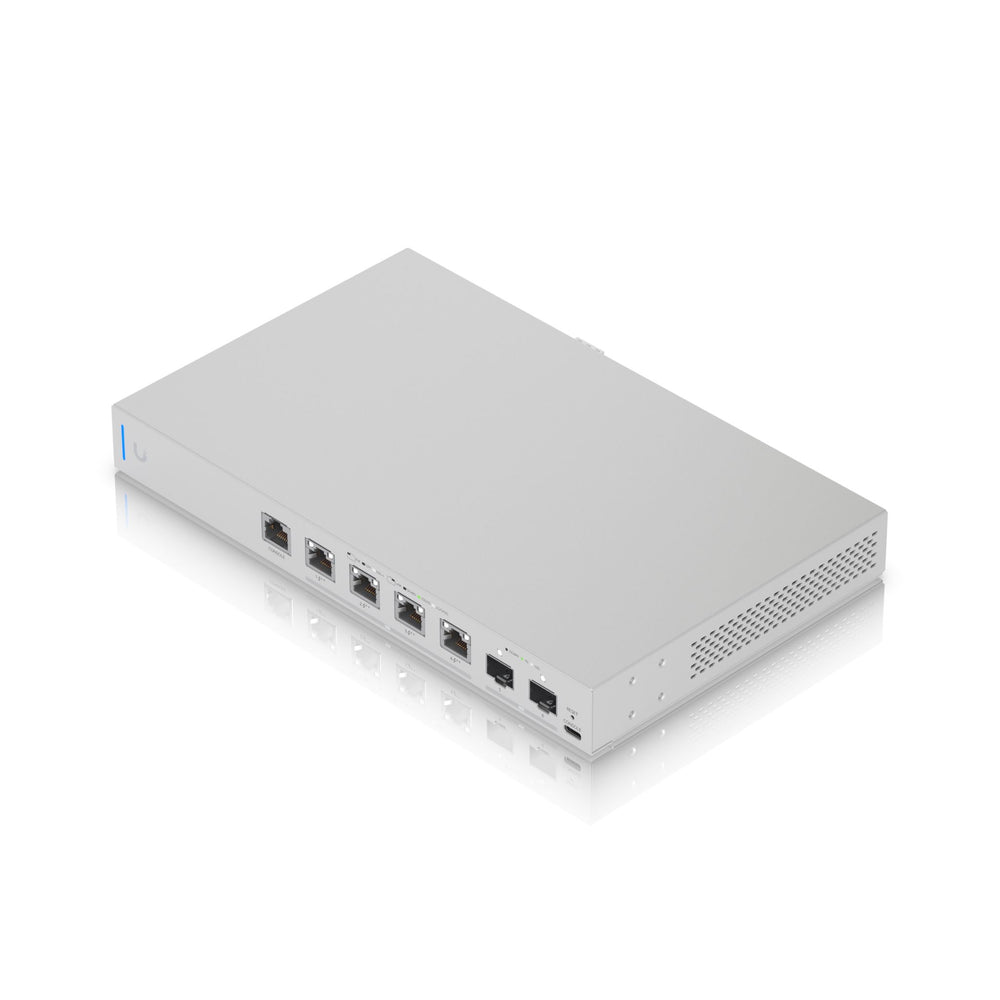

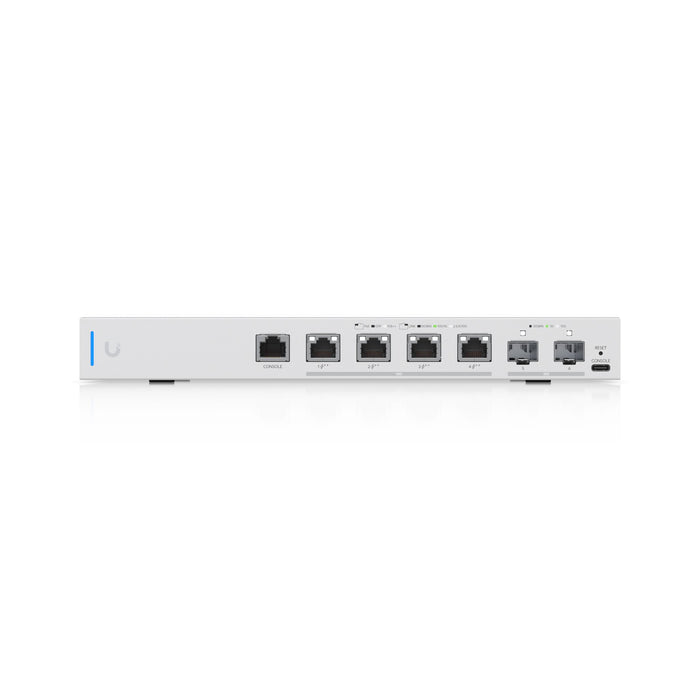

The US-XG-6POE switch, managed by the Cloud-Based UniFi Controller from Ubiquiti, is their first model to offer PoE++ (802.3bt) output. It has 4x 10G Ethernet Ports that can supply auto-sensing 802.3bt PoE and 2x SFP+ ports for optical connectivity. With rubber feet and a quiet fan system, this switch can be placed on a table or shelf, but it also includes mounting brackets for installation in a standard 1U rack. It is powered by the included power cable and can also use a DC input, providing the flexibility to connect a stand-alone or redundant power source with a minimum requirement of 40w and 44-57VDC.
Tech Specs
Click here for the UniFi XG 6 Port PoE Switch datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 165 x 268.1 x 31.8 mm (6.5 x 10.6 x 1.3") |
| Weight | 1.3 kg (2.9 lb) |
| Enclosure Material | SGCC steel |
| Hardware | |
| Management Interface | Ethernet In-Band |
| Networking Interface | (4) 1/2.5/5/10 GbE RJ45 ports (2) 10G SFP+ ports |
| PoE Interface | (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total Non-Blocking Throughput | 60 Gbps |
| Switching Capacity | 120 Gbps |
| Forwarding Rate | 89.3 Mpps |
| Power | |
| Power Method | (1) 54V DC, 3.88A power adapter (Included) (1) DC input with terminal block |
| Power Supply | External AC/DC adapter (Included), DC power source |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 40W (Excluding PoE output) |
| Total Available PoE | 170W |
| Max. PoE Wattage per Port by PSE | PoE++: 60W |
| Voltage Range PoE Mode | PoE: 44—57V PoE+/PoE++: 50—57V |
| ESD/EMP Protection | Air: ± 18kV, Contact: ± 12kV |
| Button | Factory reset |
| Environmental | |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE, Link/speed/activity |
| SFP+ | Link/activity |
FAQs
Q: What is the Ubiquiti US-XG-6POE and what is it designed for?
A: The US-XG-6POE is a fully managed Layer 3 UniFi switch featuring four 10GbE PoE++ (802.3bt) ports and two 10G SFP+ uplink ports. It's designed for high-performance network environments requiring multi-gigabit connectivity and robust power delivery.
Q: What are the performance specifications of the US-XG-6POE?
A:
-
Switching Capacity: 120 Gbps
-
Non-Blocking Throughput: 60 Gbps
-
Forwarding Rate: 89.3 Mpps
-
MAC Address Table Size: 32,000 entries
-
Packet Buffer Size: 2 MB
-
Supported VLANs: 1,000
Q: What are the PoE capabilities and power budget of the US-XG-6POE?
A: The switch provides four 10GbE PoE++ ports, each capable of delivering up to 60W, with a total PoE power budget of 240W. It is powered via an external 54V DC, 3.88A adapter (included) or through a DC input with terminal block (DC power source not included).
Q: What design features enhance its usability?
A: The US-XG-6POE features a fanless design for silent operation, a compact form factor suitable for desktop or wall mounting, and Etherlighting™ visual indicators for port status. It weighs 1.3 kg (2.9 lb) and is constructed from SGCC steel with a polycarbonate mount.
Q: What are the environmental and compliance specifications?
A:
-
Operating Temperature: -5 to 45°C (23 to 113°F)
-
Operating Humidity: 5–95% non-condensing
-
Certifications: CE, FCC, IC
-
NDAA Compliant: Yes
