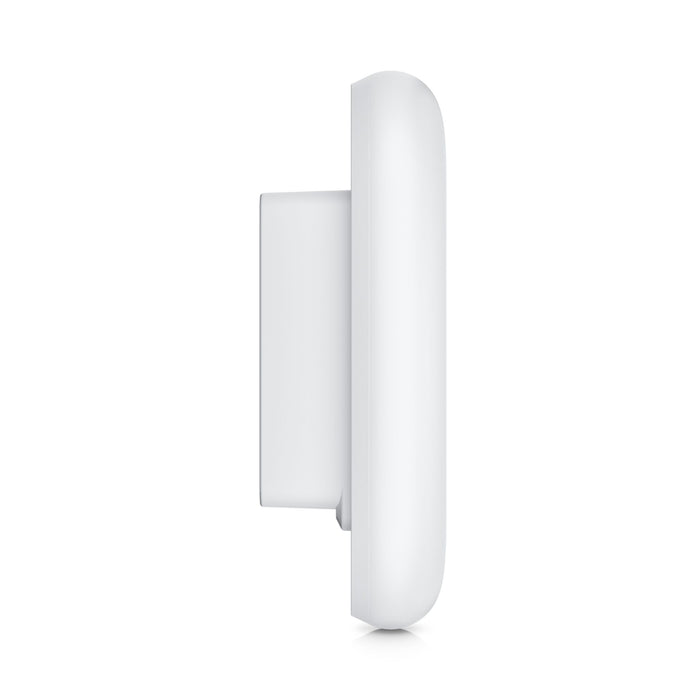

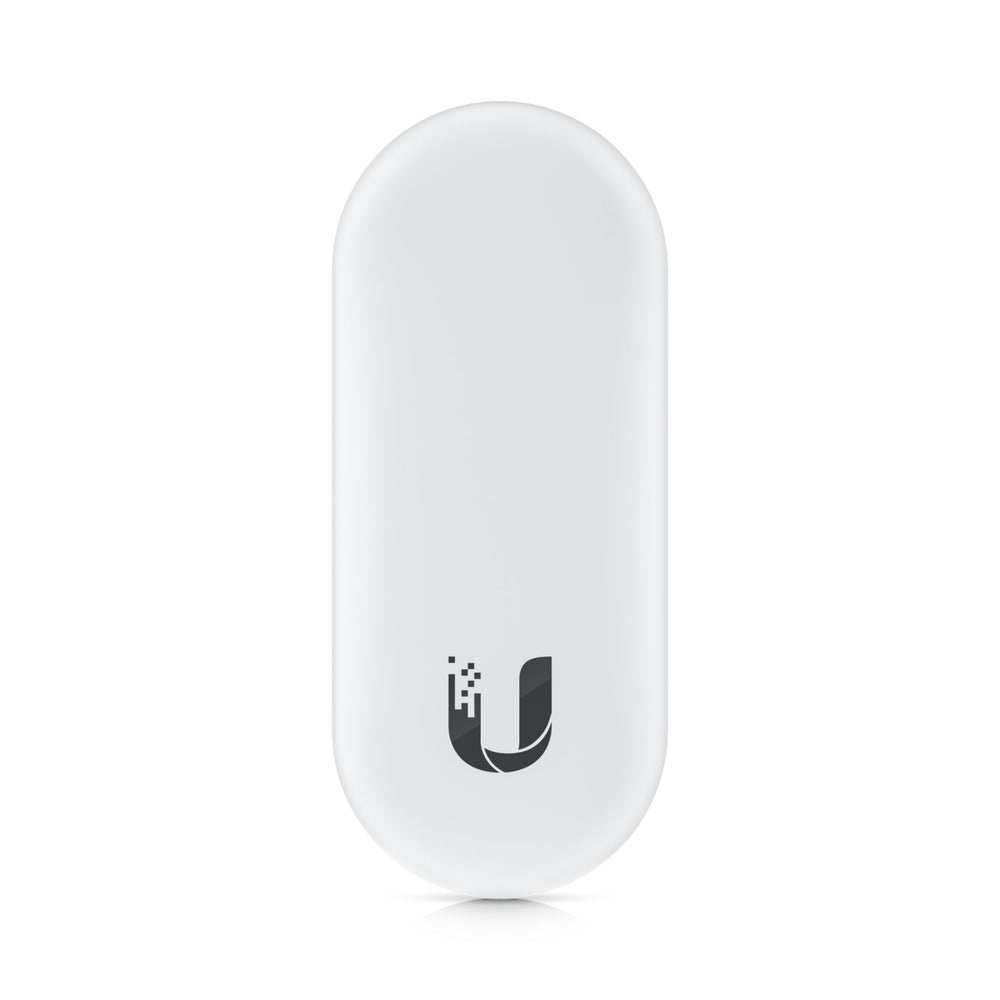

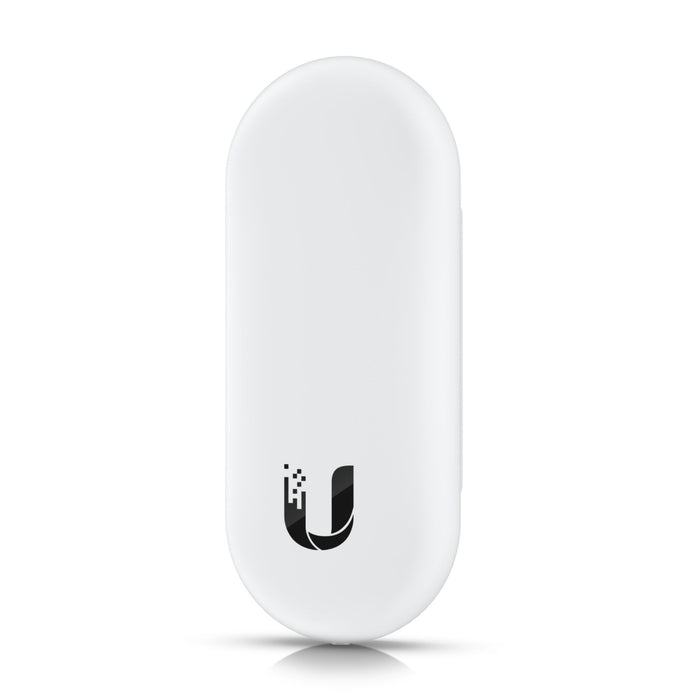

Ubiquiti UniFi Access Reader Lite
The Ubiquiti Access Reader Lite offers handwave door unlocking and supports NFC reader. Unlocking can be done with an NFC card or UniFi Identity mobile app, and the reader can be connected to the UniFi Access Hub using PoE. Additionally, it features additional handwave unlock functionality.
Tech Specs
Click here for the UniFi Access Reader Lite datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 94.9 x 40 x 31.1 mm (3.7 x 1.6 x 1.2") |
| NFC Card & Keyfob Access | ✓ |
| Mobile Unlock | ✓ |
| Handwave Request to Exit | ✓ |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weatherproofing | IP54 |
| Mechanical | |
| Weight | 67 g (2.4 oz) |
| Enclosure Material | Polycarbonate |
| Mounting | Wall-mount, gang box mount (Included) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |

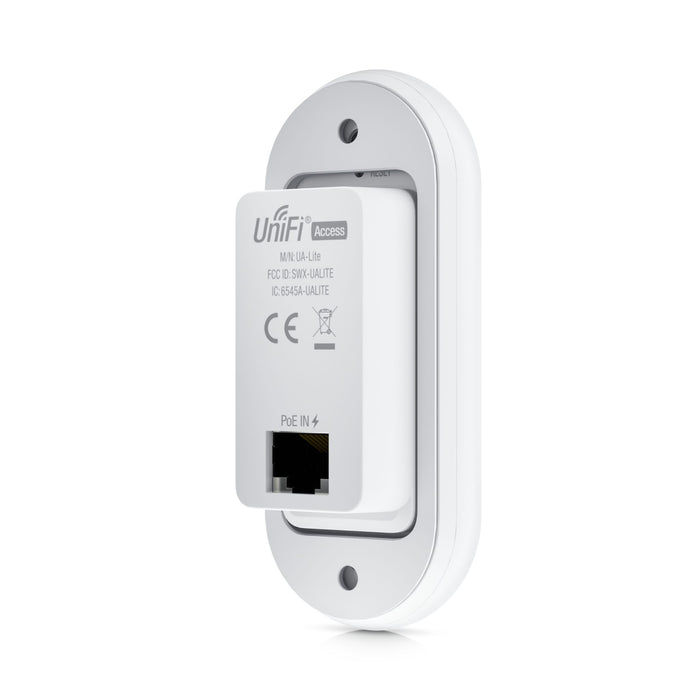

| Networking Interface | (1) 10/100 MbE port |
| Connectivity | BLE 4.1, Ethernet |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 44—57V DC |
| LEDs | B/W Learn More |
| Button | (1) Factory-reset |
| NFC | |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Technology | ISO 14443A, 14443B, 15693 NFC Tag 1, 2, 3, 4, 5 MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire |
| PoE Cabling Requirements | Cat 5e minimum recommended. Conductor gauge: 26 AWG for patch cords; 24 AWG for horizontal/riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 not verified. Intended to comply with National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, Anatel, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document Number & Version | UA-Reader Lite, V02 |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
FAQs
Q. What type of device is the Ubiquiti UA-Reader Lite?
A: The UA-Reader Lite is a compact PoE door access reader designed to provide secure entry management with UniFi Access.
Q. What authentication methods does the UA-Reader Lite support?
A: It supports RFID keycards and mobile credentials through UniFi Access for flexible and secure access control.
Q. How does the UA-Reader Lite integrate with UniFi Access?
A: The reader integrates seamlessly with UniFi Access, allowing centralised control, real-time monitoring, and event logging.
Q. What networking and power options are available for the UA-Reader Lite?
A: The UA-Reader Lite uses Gigabit Ethernet with PoE (Power over Ethernet), providing both data and power over a single cable for easy installation.
Q. What installation environments are supported by the UA-Reader Lite?
A: The device is designed for indoor use, with a durable enclosure suitable for commercial and light-duty installations.
