Ubiquiti UniFi Access Button
Please contact us for stocking information.
UniFi Access Button – Push-to-Exit Button for UniFi Access Systems
The UniFi Access Button is a simple, reliable push-to-exit button designed for use with UniFi Access Hubs. It provides a clean and intuitive way to trigger door releases, making it ideal for offices, commercial spaces, and secure facility exits.

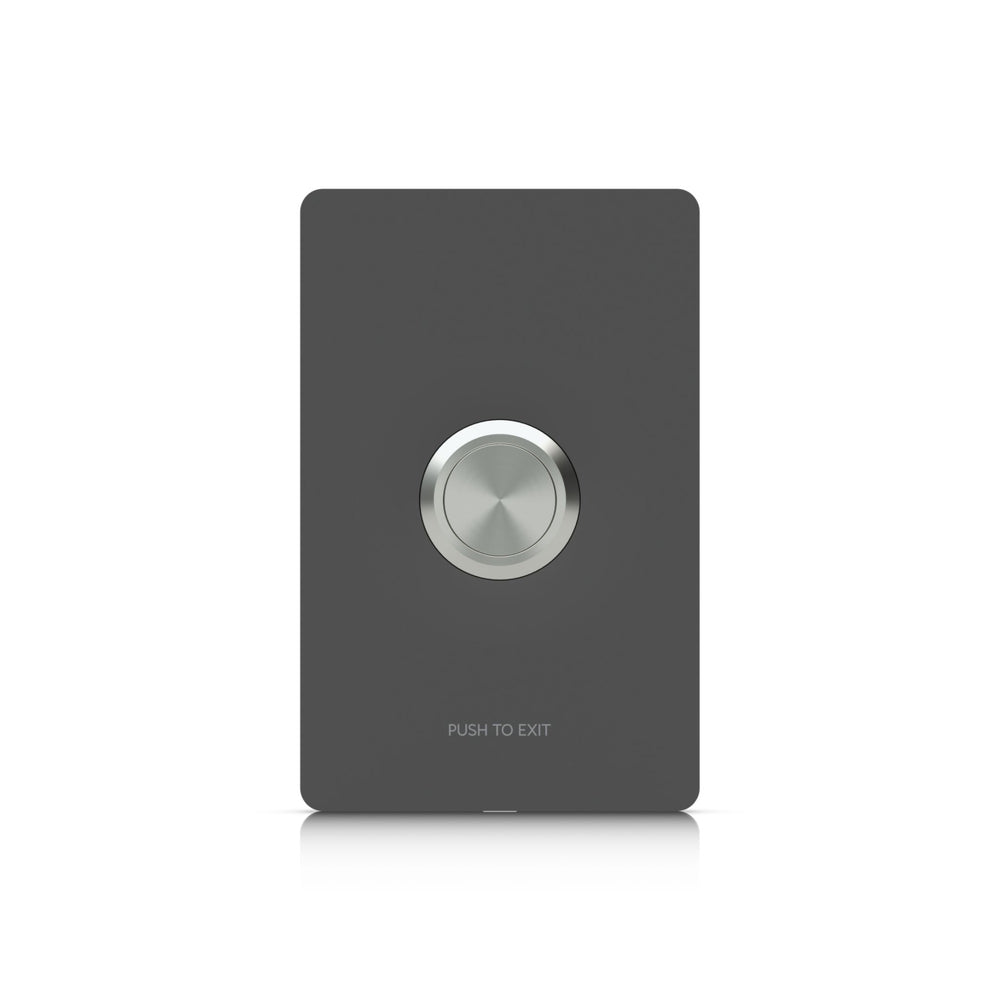

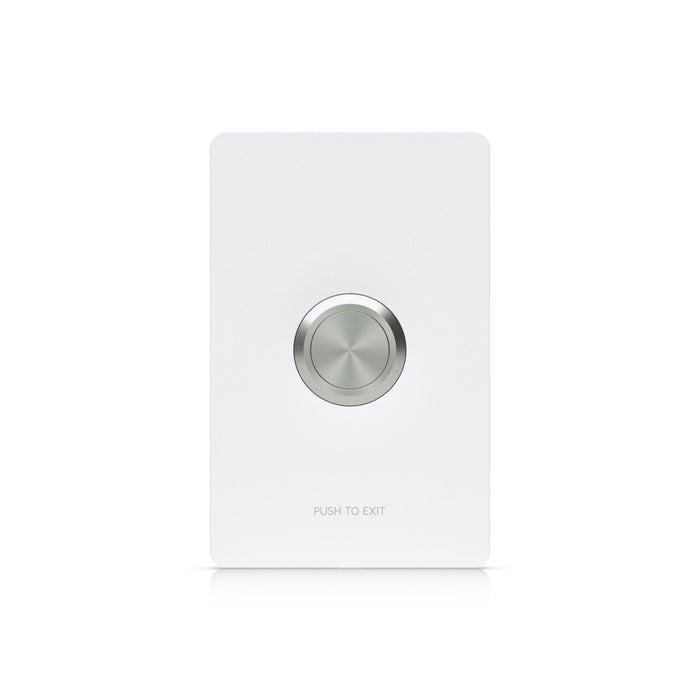

The Access Button includes interchangeable black and white faceplates to match different environments, ensuring both functionality and a professional finish.
Tech Specs
Click here to view the Ubiquiti UniFi Access Button datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 137 x 88 x 38.1 mm (5.4 x 3.5 x 1.5") |
| Weight | 180 g (6.3 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate, SGCC steel |
| Available Colors | Black, white |
| Indoor and Outdoor Use | Indoor only |
| Hardware | |
| Mechanical Life | 1,000,000 clicks |
| Power Method | UniFi Access Hubs UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Contact Type | (1) Normal open |
| Contact Rating | 30V DC, 2A |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: 1 |
| Document Number | UA-Button, V01 |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Storage Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, UL 294, CAN/ULC-60839-11-1 |
FAQs
Q: What is the Ubiquiti UA-Button used for?
A: The UA-Button is a network management accessory designed to allow users to reset or configure Ubiquiti devices quickly and easily.
Q: Which devices are compatible with the UA-Button?
A: It is compatible with a range of Ubiquiti access points, switches, and other network devices that support physical reset or configuration via a button interface.
Q: Can the UA-Button be used for device recovery?
A: Yes, it allows for safe resetting of devices to factory defaults in case of misconfiguration or troubleshooting needs.
Q: Is the UA-Button suitable for indoor or outdoor use?
A: It is primarily intended for indoor use, typically near network devices or enclosures, though it can be installed in weather-protected outdoor housings.
Q: How does the UA-Button simplify network management?
A: By providing a single-button interface for resetting or initiating configuration, it reduces the need for complex procedures or direct software access.
