Tycon Systems DC PoE Injector, 9-36VDC IN, 48V 24W GigE Passive PoE OUT - TP-DCDC-1248G
The TP-DCDC-1248G by Tycon Power is a cost-effective and efficient way to provide Passive Power over Ethernet from a 12VDC or 24VDC source. It includes a POE injector for power and data delivery through CAT5/6 Ethernet cables, with regulated and protected output. It also offers dual power source support and multiple protections. An industrial model with a metal enclosure is available.
Tech Specs
Click here for the Tycon Power TP-DCDC-1248G datasheet.
| Device Specifications | |
|---|---|
| Tycon DC PoE Injector 48V 20W | |
| DC Input Voltage | 9VDC – 36VDC |
| DC Input Current | 1.85A @ 12V 0.9A @ 24V |

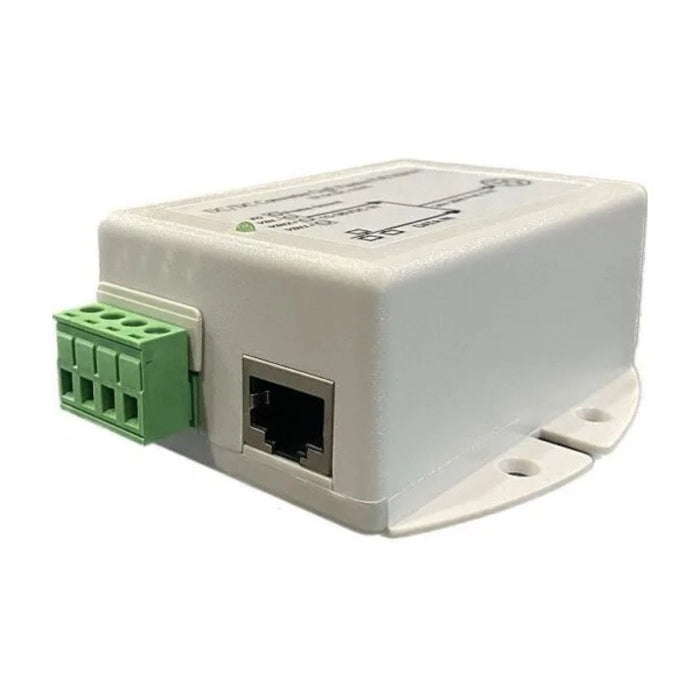

| DC Input Connector | Removable screw-type compression wire terminal (12 AWG max) |
| DC Output Voltage | 48V (Passive) |

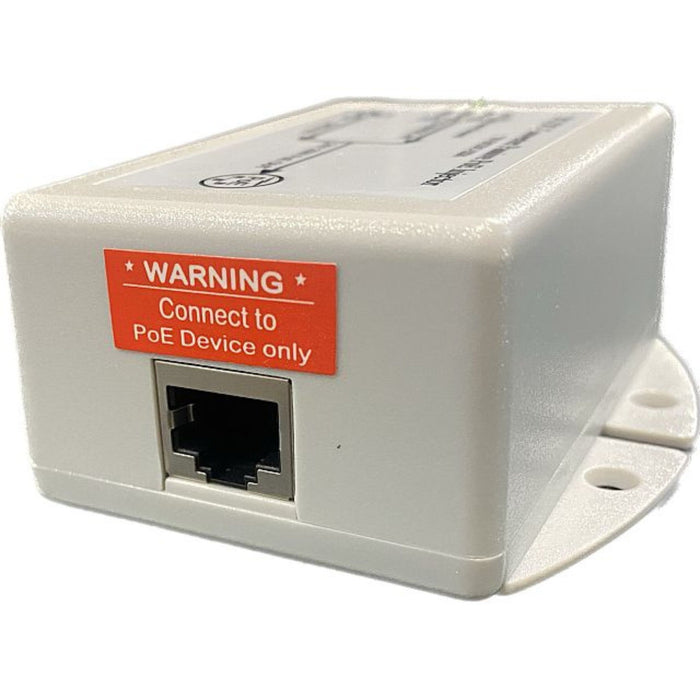

| Data In & Data/PoE Output Connector | RJ45 (Shielded) |
| Output Current (Max) | 0.42 A |
| Output Power (Max) | 20 W |
| Self Consumption Power | 1 W |
| Efficiency (Min) | 75% |
| Line Regulation | 1% |
| Load Regulation | 5% |
| Ripple | 1% |
| Noise | 1% |
| EMC Standards | FCC Class B EN 55022 Class B |
| Safety Standards | CSA 22.2 & TÜV EN60950 |
| Operating Temperature | -30 to +60°C (-22 to +140°F) |
| Operating Humidity | 5% – 90% |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| MTBF | 166,000 hours |
| Dimensions (L × W × H) | 85 x 76 x 36 mm (3.4 x 3 x 1.4”) |
| Weight | 134 g (4.7 oz) |
FAQs
Q1: What is the Tycon TP-DCDC-1248G PoE Injector and what is it used for?
A: The Tycon TP-DCDC-1248G is a DC-powered PoE injector that converts a wide 9–36 V DC input into 48 V Passive PoE output, providing both power and network data over a single Ethernet cable to compatible PoE network devices.
Q2: What power output does the TP-DCDC-1248G deliver?
A: This PoE injector delivers 48 V Passive PoE with up to 24 W of power, making it suitable for powering devices such as wireless access points, PoE cameras, and other passive PoE-compatible equipment.
Q3: What input voltage range does the TP-DCDC-1248G accept?
A: The injector supports a wide DC input range from 9 V up to 36 V, allowing it to be used with vehicle power systems, battery banks, solar power systems, and other DC-powered infrastructures.
Q4: How is the Tycon TP-DCDC-1248G installed and powered?
A: The unit connects directly to a DC power source using secure connectors or terminal blocks. It then delivers power and data over the Ethernet cable to the connected PoE device, simplifying installation where AC power is unavailable.
Q5: What applications is the TP-DCDC-1248G PoE Injector suitable for?
A: It is ideal for outdoor and industrial network deployments, transportation systems, and remote sites where infrastructure relies on DC power. Its Passive PoE output supports devices needing robust power delivery without IEEE PoE standards.
