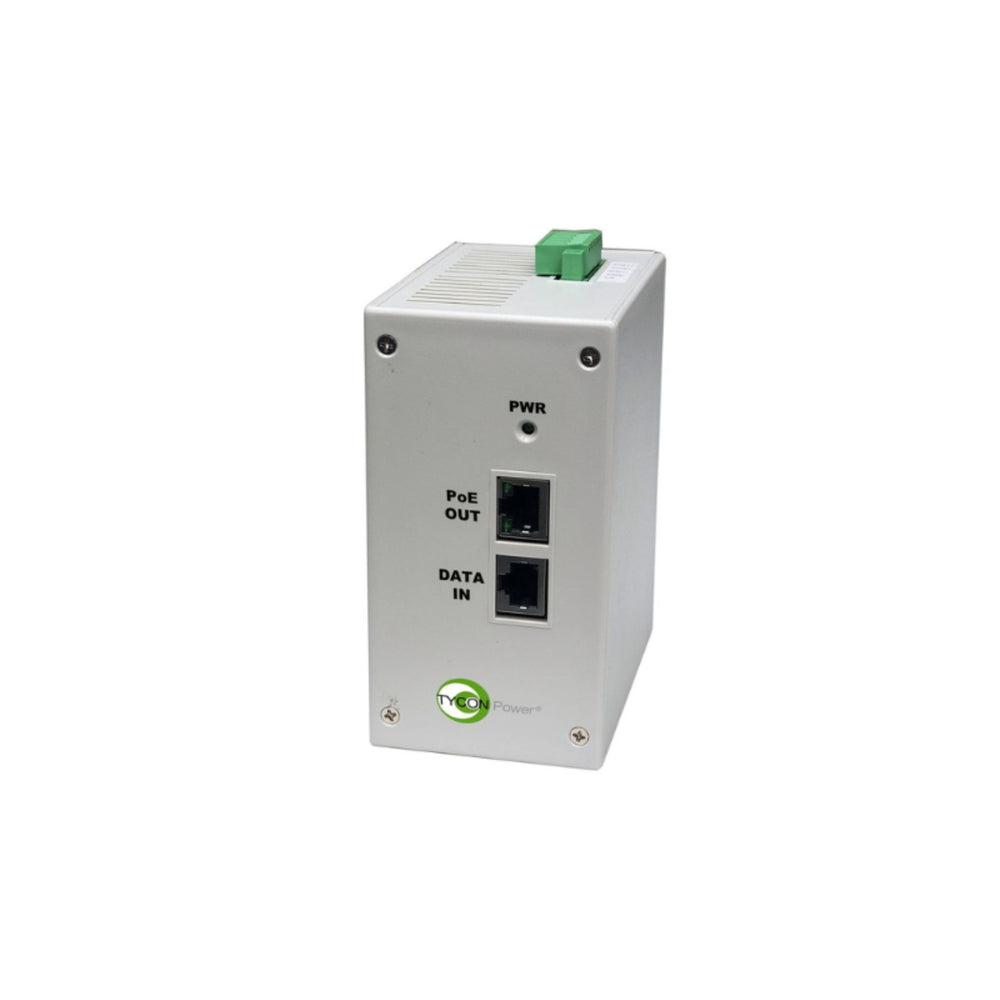

Tycon Systems DC PoE Injector, 11-60VDC IN, 56V 90W 5G 802.3bt PoE OUT, Din Mount - TPDIN-1256GD-BT
The TPDIN-1256GD-BT from Tycon Systems is a powerful DCDC converter and PoE injector, providing high power output (up to 90W) with a wide voltage input range (11-60VDC) and a wide operating temperature range (-40 to +70C). It features dual DC inputs for primary and backup power sources, as well as isolation between input and output, allowing for compatibility with legacy telecom systems (-48VDC input).
The unit is fan-less and designed for natural cooling, and can be mounted on a standard DIN Rail commonly used in industrial installations. Additionally, the green DC connector has a locking mechanism and can accommodate wires up to 12AWG, while the "FG" input is utilised for providing chassis or earth ground.
Tech Specs
Click here for the Tycon TPDIN-1256GD-BT datasheet.
| Device Specifications | |
|---|---|
| Power & Electrical | |
| Input Voltage | 11V to 60VDC, Dual Inputs |
| Input Current | 9.86A @ 11VDC (Full Load) 4.446A @ 24VDC (Full Load) 2.26A @ 48VDC (Full Load) |
| Output Voltage | IEEE 802.3bt 56VDC Load Regulation: 5% Line Regulation: 1% |
| Output Current / Power | 1.67A / 95W (34–60VDC Input) 1.43A / 80W (11–33VDC Input) |
| Efficiency | >90% @ 34–60VDC Input >86% @ 11–33VDC Input |
| Ripple & Noise | 1% |
| Protection & Safety | |
| Protections | Short Circuit Reverse Voltage Over Current Protection (802.3bt Class 8 – 96.6W) Low Voltage Detect (Stops draw below 8–9VDC) |
| Data & Interfaces | |
| Data PassThrough | 10/100/1000/5000 Mbps (Gigabit) |
| Data Protection | Pin-to-Pin (1-2, 3-6, 4-5, 7-8) Clamp Voltage: 3.3V ESD: IEC61000-4-2 ±30kV (Air & Contact) EFT: IEC61000-4-4 40A (5/50µs) Lightning: IEC61000-4-5 15A (8/20µs) |
| Physical & Environmental | |
| Connections | Removable Wire Terminal (12 AWG Max) |
| LED Indicators | Green Power LED: Input power OK RJ45 Green LED: 802.3bt negotiation and output OK |
| Mounting | DIN Rail |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 90% non-condensing |
| Dimensions (L × W × D) | 125 × 66 × 102 mm (4.9 × 2.6 × 4 in) |
| Weight | 0.6 kg (1.30 lb) |
FAQs
Q1: What is the Tycon TPDIN-1256GD-BT and what is it used for?
A: The Tycon TPDIN-1256GD-BT is a DC-powered PoE injector that converts a wide 11–60 V DC input into 56 V Power over Ethernet output compliant with 802.3bt (PoE++), supplying both power and data to high-power network devices such as 5G routers, access points, and cameras.
Q2: What power output does the TPDIN-1256GD-BT provide?
A: This PoE injector delivers up to 90 W of PoE++ power, making it suitable for powering devices that require higher power levels than standard PoE or PoE+ injectors can provide.
Q3: What input voltage range does the TPDIN-1256GD-BT support?
A: The unit supports a wide DC input range from 11 V up to 60 V, enabling flexible use with a variety of DC power sources such as batteries, solar systems, industrial DC panels, or telecom power feeds.
Q4: How is the Tycon TPDIN-1256GD-BT installed and powered?
A: The injector mounts securely using a DIN mounting bracket, simplifying installation inside control cabinets or network racks. It connects to a DC power source and then delivers both power and Ethernet data over a single cable to connected PoE devices.
Q5: What applications is the TPDIN-1256GD-BT PoE Injector suitable for?
A: It is ideal for industrial networks, outdoor PoE deployments, 5G infrastructure, wireless access point installations, and high-power surveillance systems where robust, high-wattage PoE power delivery is required from a DC-powered source.
