Teltonika TSW210
Please contact us for stocking information.

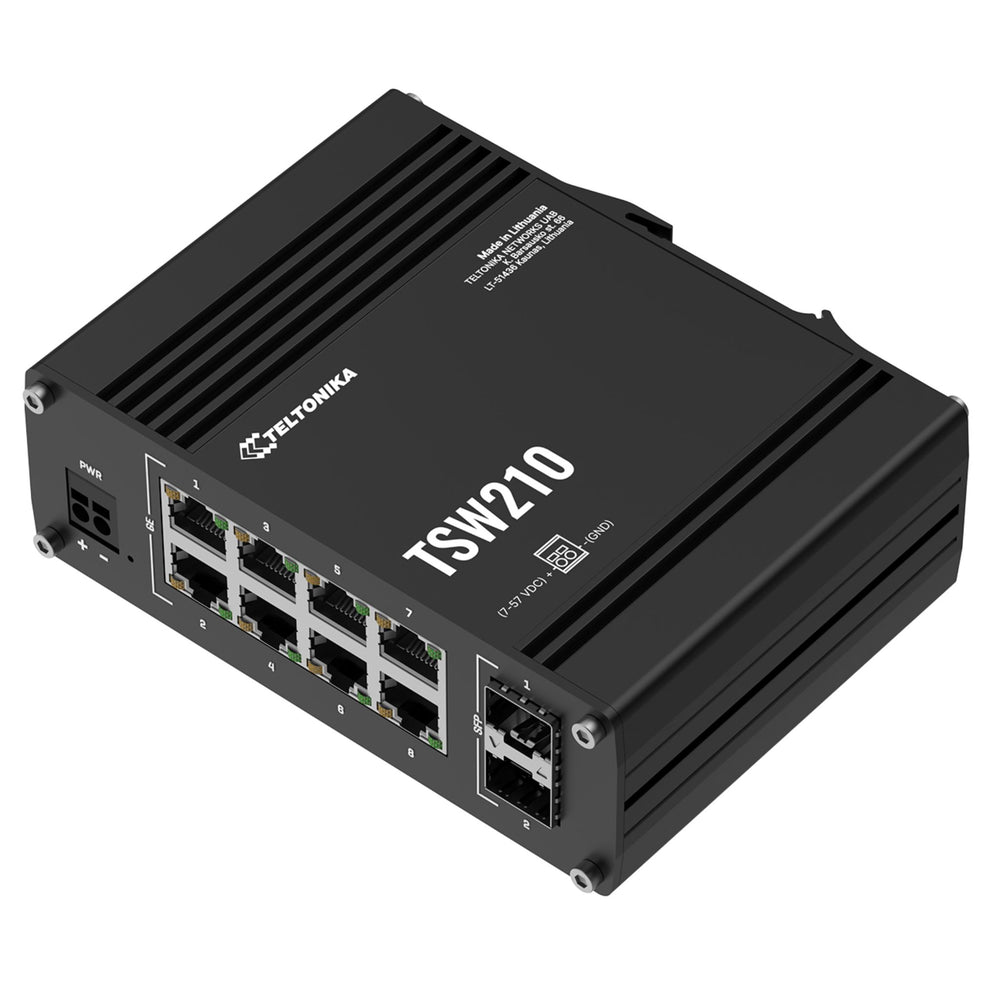

TSW210 is an Ethernet switch that provides an optimal blend of Gigabit Ethernet and SFP capabilities. With eight Ethernet ports, users can effortlessly connect multiple devices to the network without any additional setup. SFP technology also facilitates distant connections while ensuring fast speeds and dependable connections.
Tech Specs
Click here for the Teltonika TSW210 datasheet.
| Device Specifications | |
|---|---|
| Industrial Protocols | |
| Profinet | Profinet Class A conformance (available with optional order code) |
| Ethernet | |
| Ports | 8 x ETH ports, 10/100/1000 Mbps Supports auto MDI/MDIX crossover |
| Fibre | |
| Ports | 2 x SFP ports |
| IEEE 802.3 Series Standards | |
| Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC |
| Power consumption | Idle: ~1.03 W Max: 3.71 W |
| Physical Interfaces | |

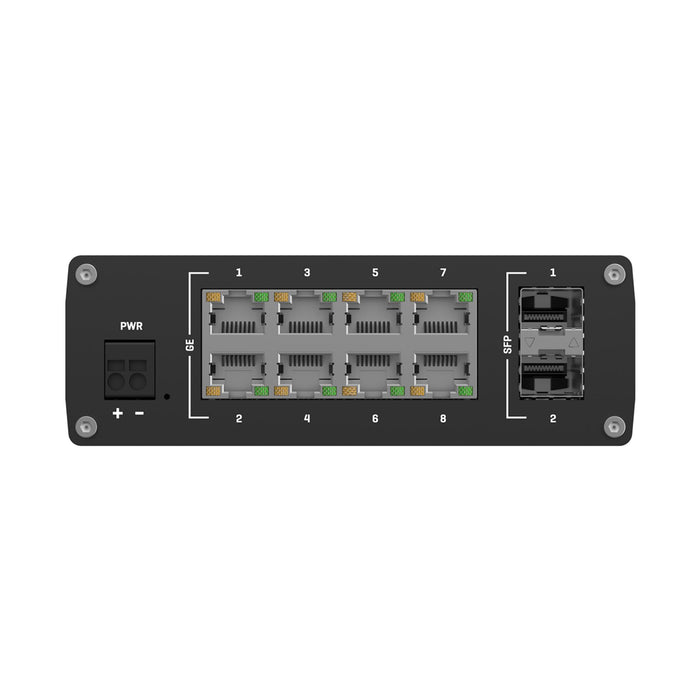

| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports |
| Status LEDs | 1 x Power LED 16 x ETH status LEDs 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Full aluminum housing |
| Dimensions (W × H × D) | 132 x 44.2 x 95.1 mm |
| Weight | 500 g |

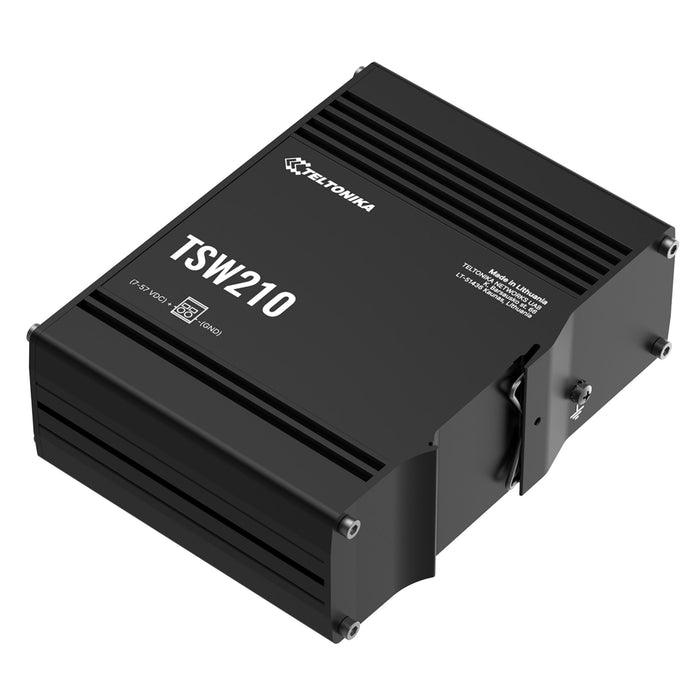

| Mounting options | Integrated DIN rail bracket Wall mount and flat surface (additional kit required) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress protection rating | IP30 |
| Regulatory & EMC | |
| Regulatory | CE, UKCA, CITC, ANRT, FCC, IC, RCM, CB, EAC, Kenya, NOM, UL/CSA, Japan, SDPPI (POSTEL) |
| EMC Standards | EN 55032:2015 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 + A1:2021 EN 61000-3-3:2013 + A1:2019 |
| Immunity | ESD: EN 61000-4-2:2009 EFT: EN 61000-4-4:2012 Surge: EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 DIP: EN IEC 61000-4-11:2020 |
| Safety | |
| Standards | IEC 62368-1:2018 EN IEC 62368-1:2020 + A11:2020 |
| Performance Specifications | |
| Bandwidth (non-blocking) | 20 Gbps |
| Packet buffer | 128 KB |
| MAC address table | 2K entries |
| Jumbo frame support | 9216 bytes |
| Safety (Hazardous Locations) | |
| Standards | UL 62368-1 CAN/CSA C22.2 No. 62368-1-19 |
FAQs
Q1: What is the Teltonika TSW210 and where is it used?
A: The Teltonika TSW210 is an industrial unmanaged Ethernet switch designed for plug-and-play connectivity. It is ideal for automation systems, industrial control networks, and cabinet installations requiring reliable wired connections.
Q2: How many ports does the Teltonika TSW210 have and what speeds do they support?
A: The TSW210 includes 8 Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports and 2 SFP fibre slots, supporting high-speed wired networking for both copper and fibre connections.
Q3: What are the performance specifications of the Teltonika TSW210?
A: This switch delivers non-blocking bandwidth up to 20 Gbps, supports 9216‑byte jumbo frames, includes a 2 K MAC address table, and a 128 KB packet buffer for efficient traffic handling under heavy network loads.
Q4: What are the power requirements and indicators of the Teltonika TSW210?
A: The TSW210 is powered via a 2‑pin industrial DC socket with a wide input range of 7–57 VDC. It features LEDs for power and individual port status to monitor connectivity and activity.
Q5: What physical and environmental features does the Teltonika TSW210 offer?
A: The switch has a rugged aluminium housing, supports DIN-rail or surface mounting, operates from –40 °C to +75 °C, and has an IP30 protection rating for use in harsh industrial environments.
