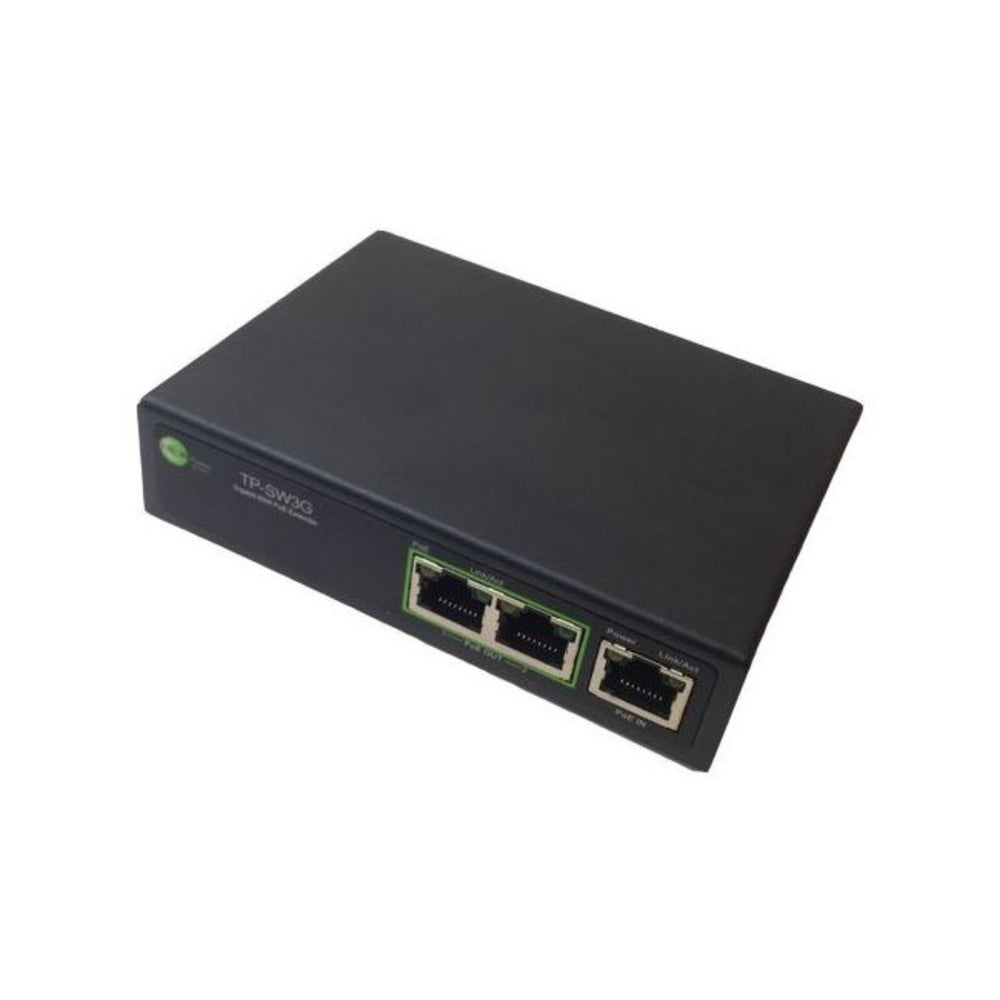

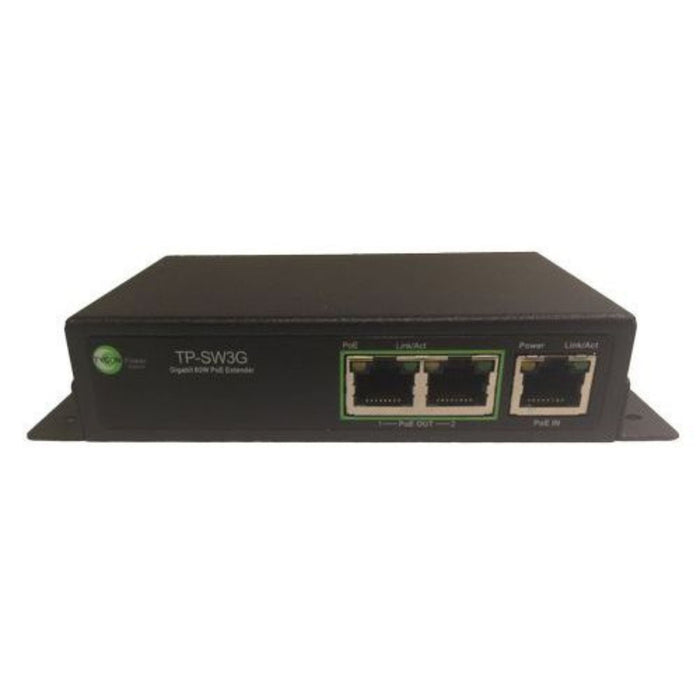

Tycon Systems PoE Extender, 3 Port 60W GigE 802.3af/at - TP-SW3G
The TP-SW3G PoE 3 Port Gigabit switches from Tycon offer high speed, automatic Ethernet switching with up to 30W of PoE power per port. No extra power needed and compatible with Cat5 or higher cables. With 15kV surge protection and conformal coating, they're ideal for outdoor and industrial use.
Tech Specs
Click here for the Tycon Power TP-SW3G datasheet.
| Device Specifications | |
|---|---|
| Ports | 1 Data/PoE Input and 2 Data/PoE Outputs Automatic crossover and polarity |
| Transmission Speed | 1000 Mbps (Gigabit) / 100 Mbps / 10 Mbps Auto-negotiation |
| Connections | Shielded RJ45, grounded to case |
| PoE Input Port | Vin 44VDC to 57VDC PoE Pinout: 1,2(V-); 3,6(V+) and/or 7,8(V-); 4,5(V+) |
| PoE Output Ports | Vout 42VDC to 55VDC Pin assignment: V-(1,2), V+(3,6) |
| PoE Output Power | 30W per port Maximum, 60W Total |
| PoE Compatibility | IEEE802.3af (PoE), IEEE802.3at (PoE+), 802.3at 4 Pairs (60W) High PoE |
| PoE Protections | Over Temperature, Over Current, Short Circuit |
| Surge Protection | IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50 ns) |
| Self Consumption | <1.5 W Typical |
| LEDs | Link (Green On), Activity (Green Blinking), PoE Detect (Yellow On) |
| Switch Technology | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE802.3x (full-duplex), Back Pressure (half-duplex) |
| Data Transmission Rate | 148800 pps, 14880 pps |
| Address Table | 1K MAC, self-learning |
| Operating Temperature | -30 to +60°C (-22 to 140°F) |
| Operating Humidity | 5% – 90% (non-condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Dimensions (L × W × H) | 119 × 85 × 28 mm (4.7 × 3.3 × 1.1”) |
| Weight | 280 g (9.9 oz) |
FAQs
Q1: What is the Tycon TP‑SW3G PoE Extender and what is it used for?
A: The Tycon TP‑SW3G is a PoE extender that increases the reach of Power over Ethernet networks by providing additional Gigabit PoE ports beyond the original switch, enabling more devices to be powered and connected without extra mid‑span injectors.
Q2: How many network and PoE ports does the TP‑SW3G provide?
A: It offers three Gigabit Ethernet ports that support 802.3af/at PoE Pass‑Through, allowing both network data and power to be extended to connected devices such as PoE cameras or wireless access points.
Q3: What PoE standards and power capacity does the TP‑SW3G support?
A: The extender supports 802.3af (PoE) and 802.3at (PoE+) devices with a total capacity of up to 60 W, making it suitable for powering multiple compliant network endpoints from one extender.
Q4: How does the Tycon TP‑SW3G extend PoE networks?
A: The device receives PoE power and data from an upstream PoE source and passes both along through its three output ports. This effectively extends the number of PoE‑powered devices that can be connected without additional PoE switches.
Q5: What applications is the TP‑SW3G PoE Extender suitable for?
A: It’s ideal for expanding PoE coverage in installations with surveillance cameras, wireless access points, VoIP phones, and other powered network devices where more ports or greater reach is needed without running separate power.
