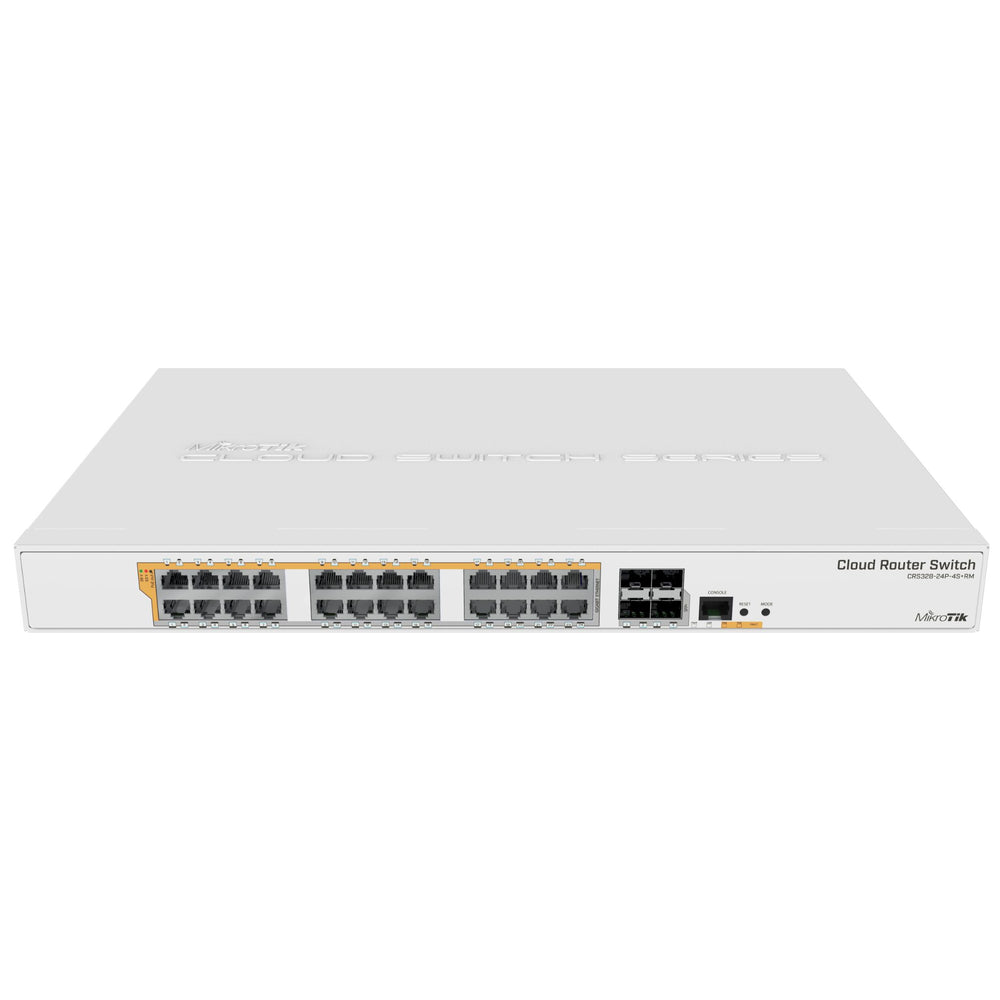

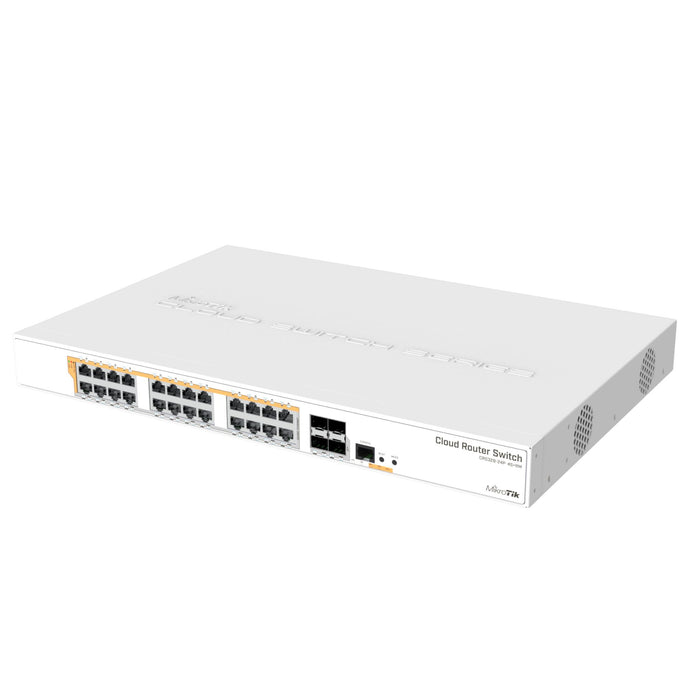

MikroTik CRS328-24P-4S+RM Cloud Router Switch
Please contact us for stocking information.
The MikroTik CRS328-24P-4S+RM is a 28 port independent switch with 24 Gigabit Ethernet ports and four SFP+ ports for up to 10 Gbps connectivity. It has a built-in 500 W power supply and can provide up to 30 W of power per port. Choose between RouterOS or SwOS for your desired operating system.
Tech Specs
Click here for the CRS328-24P-4S+RM datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | CRS328-24P-4S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX3236 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX3236 |
| Dimensions | 443 x 300 x 44 mm |
| RouterOS license | 5 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25°C |
| Tested ambient temperature | -20°C to 60°C |
| Suggested price | $489.00 |
| Powering | |
| Number of AC inputs | 1 |
| AC input range | 100-240 V |
| Number of PSU slots | 2 |
| Max power consumption | 494 W |
| Max power consumption without attachments | 44 W |
| Cooling type | 2 fans |
| PoE-out | |
| PoE-out ports | Ether1–Ether24 |
| PoE out | 802.3af/at |
| Low voltage PoE-Out current limit | 1000 mA |
| High voltage PoE-Out current limit | 450 mA |
| Max total out (A) | 20 A |
| Ethernet | |
| 10/100/1000 Ethernet ports | 24 |
| Fiber | |
| SFP+ ports | 4 |
| Peripherals | |
| Serial console port | RJ45 |
| Other | |
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP00 |
FAQs
Q: What is the MikroTik CRS328-24P-4S+RM?
A: The MikroTik CRS328-24P-4S+RM is a 1U rackmount managed switch featuring 24 Gigabit Ethernet ports with PoE output and 4 SFP+ 10GbE uplinks, designed for high-capacity, enterprise-class networks.
Q: What network speeds does the CRS328-24P-4S+RM support?
A: It supports 1GbE speeds on all 24 Ethernet ports and 10GbE on the 4 SFP+ uplink ports, providing high-speed connectivity for servers, access points, cameras, and uplinks.
Q: Can the MikroTik CRS328-24P-4S+RM handle PoE and VLANs?
A: Yes, all 24 Ethernet ports support PoE output for powering devices, and the switch supports VLANs, link aggregation, QoS, and Layer 3 routing with RouterOS v7 or SwitchOS.
Q: How is the CRS328-24P-4S+RM powered and installed?
A: It uses a 48V DC input for PoE and data, and its 1U rackmount design ensures easy installation in server racks, network cabinets, or small to medium enterprise setups.
Q: What management features does the MikroTik CRS328-24P-4S+RM provide?
A: The switch includes advanced management tools for port monitoring, traffic shaping, firewall rules, spanning tree, and PoE management through RouterOS or SwitchOS, giving full network control.
