MikroTik RouterBOARD RB260GSP 5-port Gigabit Managed Switch with PoE
Please contact us for stocking information.
MikroTik RB260GSP: A small, 5-port managed switch with PoE and Gigabit Ethernet. Configurable through your web browser with SwOS, specially designed for MikroTik switches.
Tech Specs
Click here for the RB260GSP/CSS106-1G-4P-1S datasheet.
| Device Specifications | |
|---|---|
| Specifications | |
| Product code | CSS106-1G-4P-1S |
| Switch chip model | QCA8337 |
| Dimensions | 113x139x28mm |
| Operating System | MikroTik SwOS |
| Storage size | 128 KB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | $55.95 |
| Powering | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 11-30 V |
| Max power consumption | 53 W |
| Max power consumption without attachments | 5 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 11-30 V |
| PoE-out | |
| PoE-out ports | Ether2–Ether5 |
| PoE out | Passive PoE |
| Low voltage PoE-Out current limit | 1 A |
| Max total out (A) | 2 A |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Fiber | |
| SFP DDMI | Yes |
| SFP ports | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
FAQs
Q: What is the MikroTik CSS106-1G-4P-1S used for?
A: This switch is ideal for SOHO or small-office deployments where you need both network switching and PoE to power devices like access points or cameras, without needing active PoE injectors.
Q: What ports and connectivity does the CSS106-1G-4P-1S have?

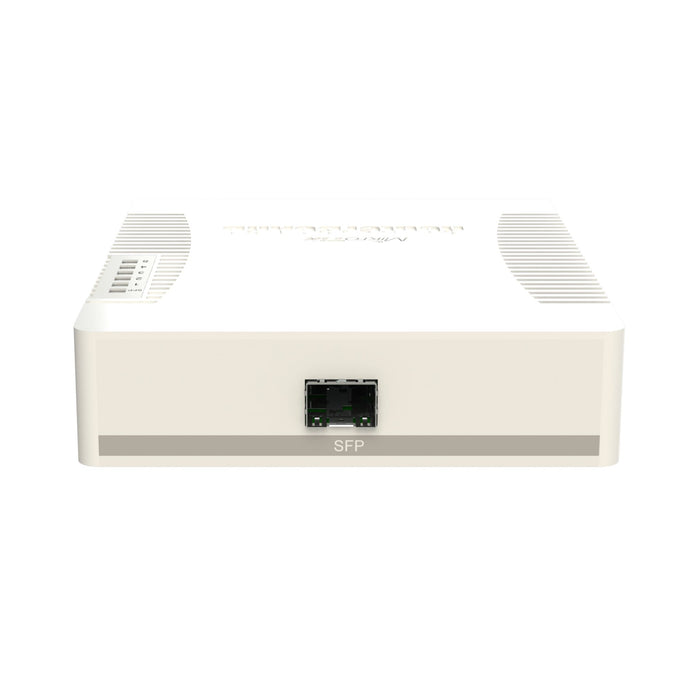

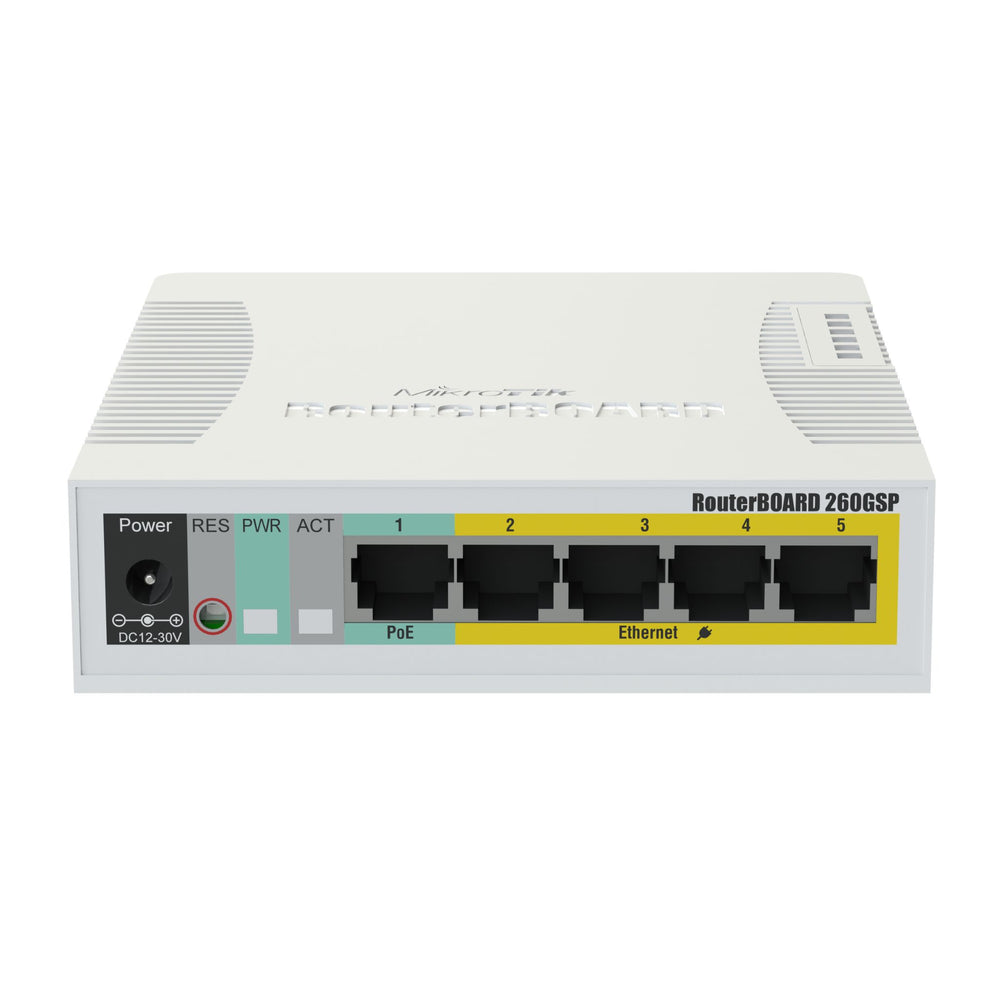

A: It provides 5 × 1 Gbps Ethernet ports (RJ45), where ports 2-5 can supply passive PoE, plus 1 × 1 Gbps SFP cage for fibre or uplink connections.
Q: How does the PoE-out functionality work on this switch?
A: The switch supports passive PoE-out on Ethernet ports 2 to 5. It can supply up to 1 A per port (depending on input), with a total current budget of up to 2 A across those ports.
Q: How is the switch powered, and what are its power requirements?
A: The CSS106-1G-4P-1S supports two power inputs: a DC jack (11-30 V) or passive PoE-in on port 1 (11-30 V). It has passive (fanless) cooling and low power consumption when idle.
Q: What management capabilities does the CSS106-1G-4P-1S support?
A: It runs MikroTik’s SwOS, offering a web interface for Layer-2 switch management: VLANs, MAC filtering, port isolation, bandwidth control, port mirroring, and more, suitable for lightweight managed or edge networks.
