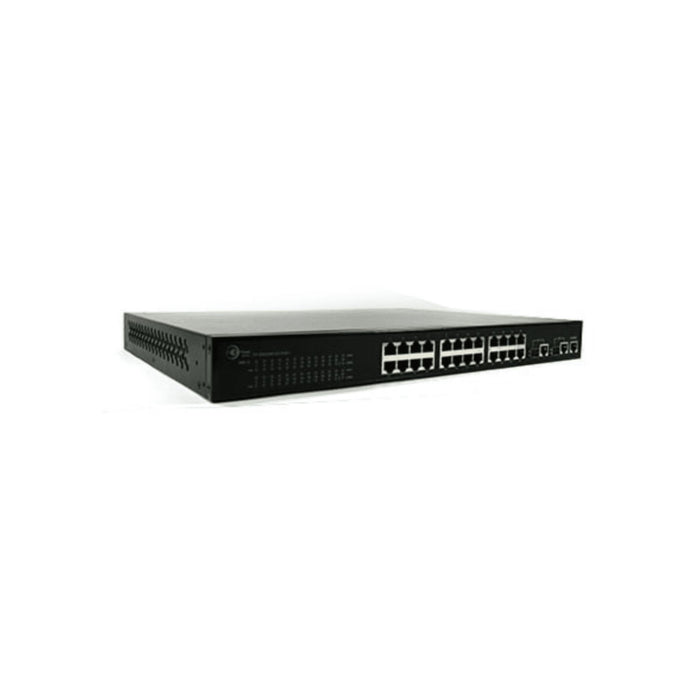

Tycon Systems 24 Port Manageable Gigabit PoE Switch - TP-SW24M-G2-POE+
The hardened TP-SW24M-G2-POE+ is a 24 Port fully manageable PoE switch with flexible AC and DC power options and wide operating temperature range. It features two Gigabit uplink ports and a built-in web server for management via web browser or Telnet. It also supports SNMP and has a serial port console connection. Other functional features include VLAN configuration, port control, and spanning tree protocol.
Tech Specs
| Device Specifications | |
|---|---|
| Power Requirements | 100–240VAC 50/60 Hz (5A Max) --- OR --- -52VDC to -56VDC (18A Max) |
| Self Consumption Power | 20W Typical |
| AC Power Connection | IEC C13 (1.5m power cord included) |
| DC Power Connection | 3 Pin Removable Wire Terminal Connector (Jonhon CZ5CT3L) |
| PoE Ports | 24 × 10/100M Ports IEEE 802.3af or 802.3at (12 ports max at 802.3at) |
| PoE Port Output Power | 802.3af: 15.4W 802.3at: 25W Max Power on pins 1,2,3,6 |
| Uplink Ports | 2 × Combo Gigabit Ports 10/100/1000M RJ45 or SFP Fiber Optic Transceiver Module |
| Console Port | RJ45 serial input (38400 8-N-1) DB9 to RJ45 adapter cable included |
| LED Indicators | System Power Port Link/ACT Port PoE Power Uplink Port Connection Speed |
| Switch Properties | Priority Queues: 4 IGMP Groups: 256 VLAN ID Range: 4K MAC Table Size: 8K Packet Buffer Size: 3Mbit |
| Ring Recovery Time | MSTP: <30ms EAPS: <20ms |
| Packets Per Second | Up to 1,488,096 |
| Supported Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x 802.1D-2004, 802.1w, 802.1s, 802.1Q, 802.1p, 802.1x 802.3ad, 802.3af, 802.3at |
| Supported Protocols | IGMPv1/v2, GMRP, GVRP SNMPv1/v2C/v3, DHCP Server/Client, TFTP, SNTP, RMON HTTP, Telnet, SSH, Syslog, LLDP, IEEE 1588 PTP |
| Supported MIB | MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB Bridge MIB, RSTP MIB RMON MIB Groups 1, 2, 3, 9 |
| Regulatory Approvals – Safety | UL508, EN60950-1 |
| Regulatory Approvals – EMI | FCC Part 15, CISPR (EN55022) Class A |
| Regulatory Approvals – EMS | EN61000-4-2 Level 3 EN61000-4-3 Level 3 EN61000-4-4 Level 3 EN61000-4-5 Level 3 EN61000-4-6 Level 3 EN61000-4-8 |
| Regulatory Approvals – Mechanical | IP30 IEC60068-2-32, IEC60068-2-27, IEC60068-2-6 |
| Grounding | Through 3rd wire AC connection or ground lug on chassis DC isolated from frame ground |
| Mounting | 19” rack mounting (mounting brackets included) |
| Operating Temperature | -40°C to +75°C (-40°F to 167°F) |
| Humidity (RH) | 5% – 95% (non-condensing) |
| Dimensions (L × W × H) | 440 × 315 × 44 mm (17.3” × 12.4” × 1.7”) |
| Weight | 5.4 kg (12 lb) |
FAQs
Q1: What is the Tycon TP-SW24M-G2-POE+ and what is it used for?
A: The Tycon TP-SW24M-G2-POE+ is a 24-port managed Gigabit PoE+ switch designed to deliver both high-speed network connectivity and Power over Ethernet (PoE+) to a wide range of devices such as access points, cameras, and VoIP phones in enterprise or campus networks.
Q2: How many PoE ports does the TP-SW24M-G2-POE+ have and what standard does it support?
A: This switch provides 24 Gigabit Ethernet ports with 802.3at PoE+ support, enabling both data and power to be delivered over a single cable to each connected device.
Q3: What managed features are available on the Tycon TP-SW24M-G2-POE+?
A: The TP-SW24M-G2-POE+ includes managed switch features such as VLAN configuration, Quality of Service (QoS) for traffic prioritisation, link aggregation, SNMP monitoring, and advanced port controls to optimise performance and security in complex network environments.
Q4: What power delivery capabilities does the TP-SW24M-G2-POE+ offer?
A: The switch supports PoE+ power delivery on all 24 ports, making it suitable for powering medium-to-high-power devices such as wireless access points, PTZ cameras, digital signage, and other PoE-enabled equipment without the need for additional power injectors.
Q5: What physical and operational features make the TP-SW24M-G2-POE+ suitable for enterprise use?
A: The switch features a rack-mountable form factor, LED status indicators for link, activity, and PoE power, and robust cooling to support continuous operation in demanding environments such as enterprise network closets, data centres, or campus installations.
