Teltonika TSW100
Please contact us for stocking information.

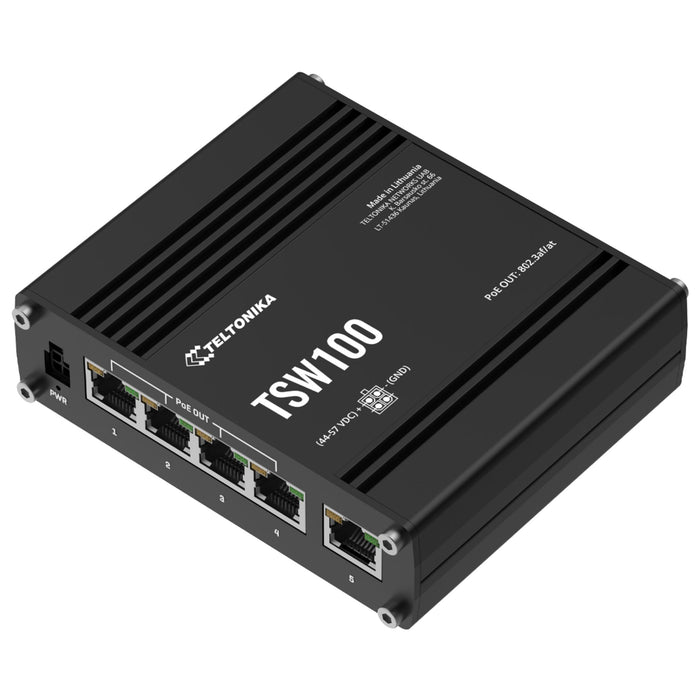

The Teltonika TSW100 is a Gigabit Ethernet switch that supports Power-over-Ethernet and is classified as power source equipment (PSE). It simplifies installation by centralizing the power supply and offers up to 30 watts per port. With five Gigabit Ethernet ports, it is a cost-effective option for creating a secure industrial Ethernet network with high-bandwidth capabilities.
Tech Specs
Click here for the Teltonika TSW100 datasheet.
| Device Specifications | |
|---|---|
| Industrial Protocols | |
| Profinet | Profinet Class A conformance (available with optional order code) |
| Ethernet | |
| Ports | 5 x ETH ports, 10/100/1000 Mbps Supports auto MDI/MDIX crossover |
| IEEE 802.3 standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| PoE Out | |
| PoE+ ports | Port 1 - 4 |
| PoE standards | IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Order code: TSW100 *1****) IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Order code: TSW100 *0****) |
| PoE Max Power per Port (at PSE) | 30 W |
| PoE Power Budget (at PSE) | 120 W |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC |
| PoE-Out input voltage range | 44 – 57 VDC |
| Power consumption | Idle: 2 W Max (no PoE): 9 W PoE Max: 129 W |
| Physical Interfaces | |

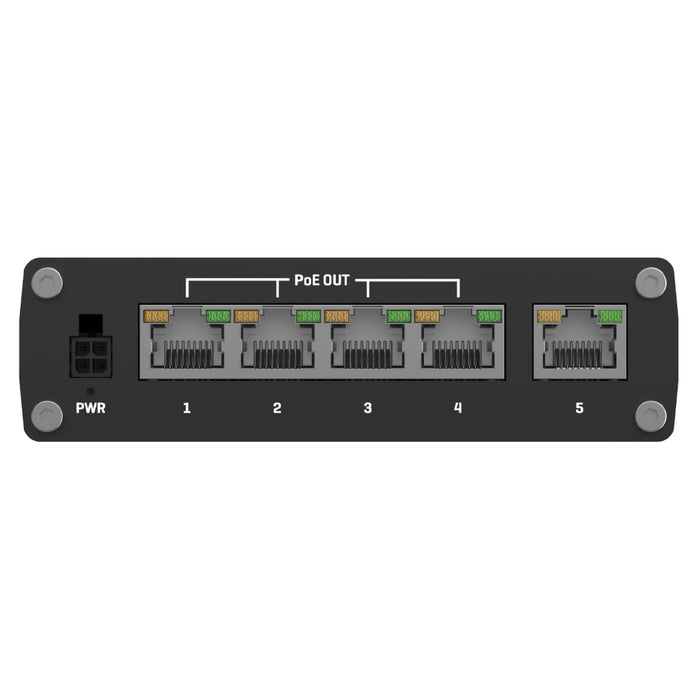

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED 10 x ETH status LEDs |
| Power | 1 x 4-pin power connector |
| Other | 1 x Grounding screw |
| Physical Specification | |

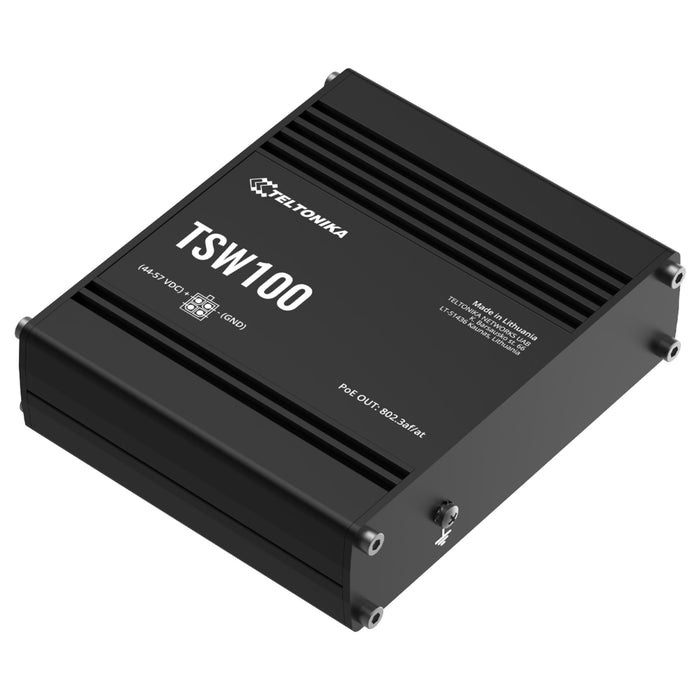

| Casing material | Full aluminum housing |
| Dimensions (W × H × D) | 115 x 32.2 x 101.2 mm |
| Weight | 350 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress protection rating | IP30 |
| Regulatory & EMC | |
| Regulatory | CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark |
| EMC Standards | EN 55032:2015 EN 55035:2017 EN 301 489-1 V2.2.3 |
| Immunity | ESD: EN 61000-4-2:2009 Radiated: EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 EFT: EN 61000-4-4:2012 Surge: EN 61000-4-5:2014 CS: EN 61000-4-6:2014 DIP: EN 61000-4-11:2004 |
| Safety | |
| Standards | IEC 62368-1:2018 EN IEC 62368-1:2020 + A11:2020 |
| Performance Specifications | |
| Bandwidth (non-blocking) | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table | 2K entries |
| Jumbo frame support | 9216 bytes |
FAQs
Q1: What is the Teltonika TSW100 and what does it do?
A: The Teltonika TSW100 is an industrial unmanaged Ethernet switch that provides both high‑speed network connectivity and Power‑over‑Ethernet (PoE) power delivery to connected devices without configuration.
Q2: How many ports does the Teltonika TSW100 have and what speeds are supported?
A: The TSW100 features 5 Gigabit Ethernet (10/100/1000 Mbps) ports with auto MDI/MDIX, enabling fast wired network connections across multiple devices.
Q3: Which ports support PoE and what power does the TSW100 deliver?
A: Four of the TSW100’s Ethernet ports support PoE+ (802.3af/at), delivering up to 30 W per port with a total PoE power budget of up to 120 W for powering cameras, access points, and other PoE devices.
Q4: How is the Teltonika TSW100 powered and installed?
A: The switch is powered via a 4‑pin industrial DC input with a wide voltage range (typically 7–57 VDC). It supports DIN‑rail or surface mounting, making it easy to install in cabinets and industrial panels.
Q5: What environmental and physical features does the Teltonika TSW100 offer?
A: The TSW100 has a rugged aluminium housing, operates over a wide temperature range (typically –40 °C to +75 °C), supports plug‑and‑play use, and includes LED indicators for power and link/activity status.
