Teltonika TSW200
Please contact us for stocking information.

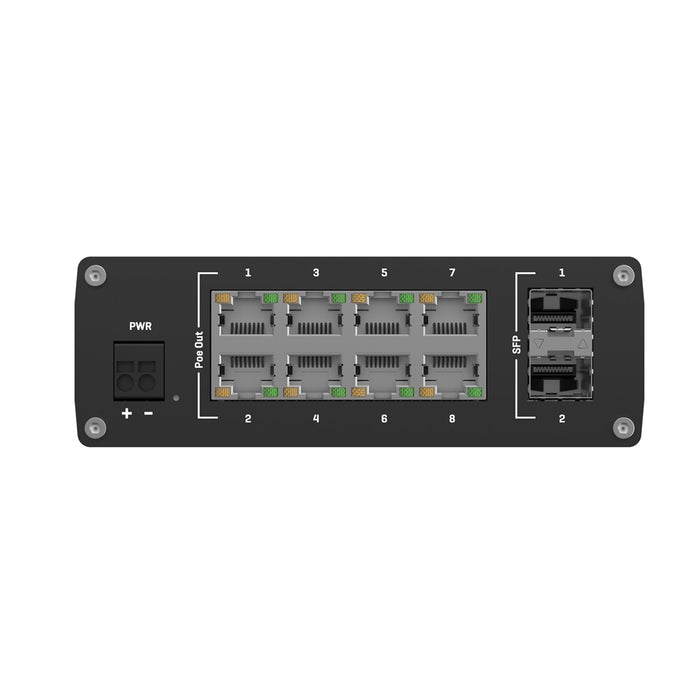

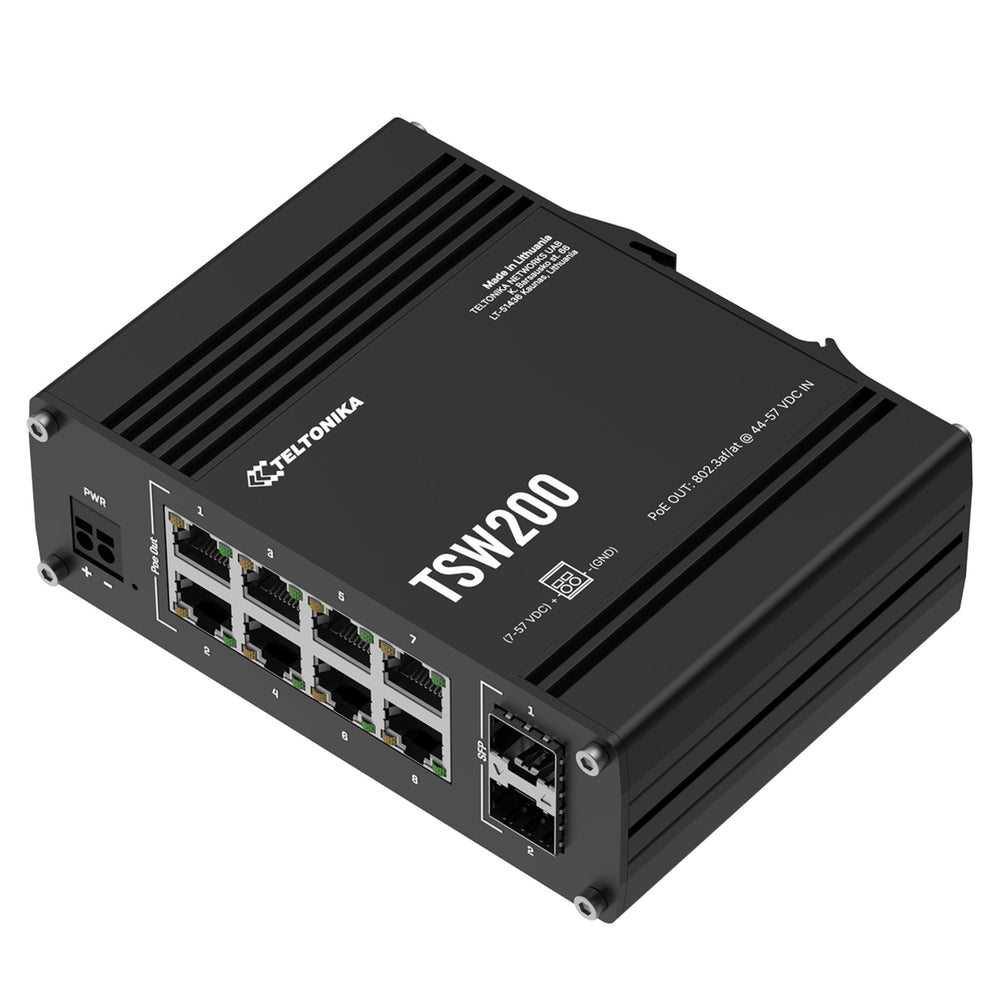

The TSW200 Industrial PoE+ Ethernet Switch is equipped with 2 SFP ports for long-range Fibre-optic communication, along with 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. This switch is classified as power source equipment (PSE) and can provide up to 30 watts per port, making it an efficient option for centralised power supply and simplifying the installation process.
Tech Specs
| Device Specifications | |
|---|---|
| Industrial Protocols | |
| Profinet | Profinet Class A conformance (available with optional order code) |
| Ethernet | |
| Ports | 8 x ETH ports, 10/100/1000 Mbps Supports auto MDI/MDIX crossover |
| IEEE 802.3 standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Fibre | |
| Ports | 2 x SFP ports |
| PoE Out | |
| PoE+ ports | Port 1 - 8 |
| PoE standards | IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (From batch 42) IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (From batch 1-41) |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 240 W |
| Power | |
| Connector | 2-pin industrial DC power socket |
| Input voltage range | 7 – 57 VDC |
| PoE-Out input voltage range | 44 – 57 VDC |
| Power consumption | Idle: 1.81 W Max: 5.5 W PoE Max: 245.5 W |
| Physical Interfaces | |
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports |
| Status LEDs | 1 x Power LED 16 x ETH status LEDs 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Full aluminum housing |
| Dimensions (W × H × D) | 132 x 44.2 x 95.1 mm |
| Weight | 517 g |
| Mounting options | Integrated DIN rail bracket; wall mount and flat surface (additional kit required) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress protection rating | IP30 |
| Regulatory & EMC | |
| Regulatory | CE, UKCA, CITC, ANRT, FCC, IC, CB |
| EMC Standards | EN 55032:2015 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 + A1:2021 EN 61000-3-3:2013 + A1:2019 |
| Immunity | ESD: EN 61000-4-2:2009 Radiated: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge: EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 DIP: EN IEC 61000-4-11:2020 |
| Safety | |
| Standards | IEC 62368-1:2018 EN IEC 62368-1:2020 + A11:2020 |
| Performance Specifications | |
| Bandwidth (non-blocking) | 20 Gbps |
| Packet buffer | 128 KB |
| MAC address table | 2K entries |
| Jumbo frame support | 9216 bytes |
FAQs
Q1: What is the Teltonika TSW200 and what is it used for?
A: The Teltonika TSW200 is an industrial unmanaged PoE+ Ethernet switch that combines high‑speed network connectivity with Power‑over‑Ethernet power delivery, ideal for powering and linking devices in industrial, automation, and commercial deployments.
Q2: How many ports does the Teltonika TSW200 have and what network speeds do they support?
A: The TSW200 features 8 Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports for full‑speed wired networking plus 2 SFP fibre ports for long‑distance optical connections on the same switch.
Q3: What PoE capabilities does the Teltonika TSW200 offer?
A: All 8 Ethernet ports support PoE+ (IEEE 802.3af/at) power delivery, providing up to 30 W per port with a total power budget up to 240 W, enabling both data and power to be delivered over a single cable to PoE‑enabled devices.
Q4: How is the Teltonika TSW200 powered and installed?
A: The switch uses a 2‑pin industrial DC power input with a broad voltage range for flexible supply options. It can be easily mounted using the integrated DIN‑rail bracket or installed on walls or flat surfaces with additional hardware.
Q5: What physical and environmental features make the Teltonika TSW200 suitable for industrial use?
A: The TSW200 has a rugged aluminium housing, supports a wide operating temperature range from –40 °C to +75 °C, and carries an IP30 ingress protection rating, ensuring reliable performance in harsh industrial and factory environments.
