Teltonika TSW202
Please contact us for stocking information.

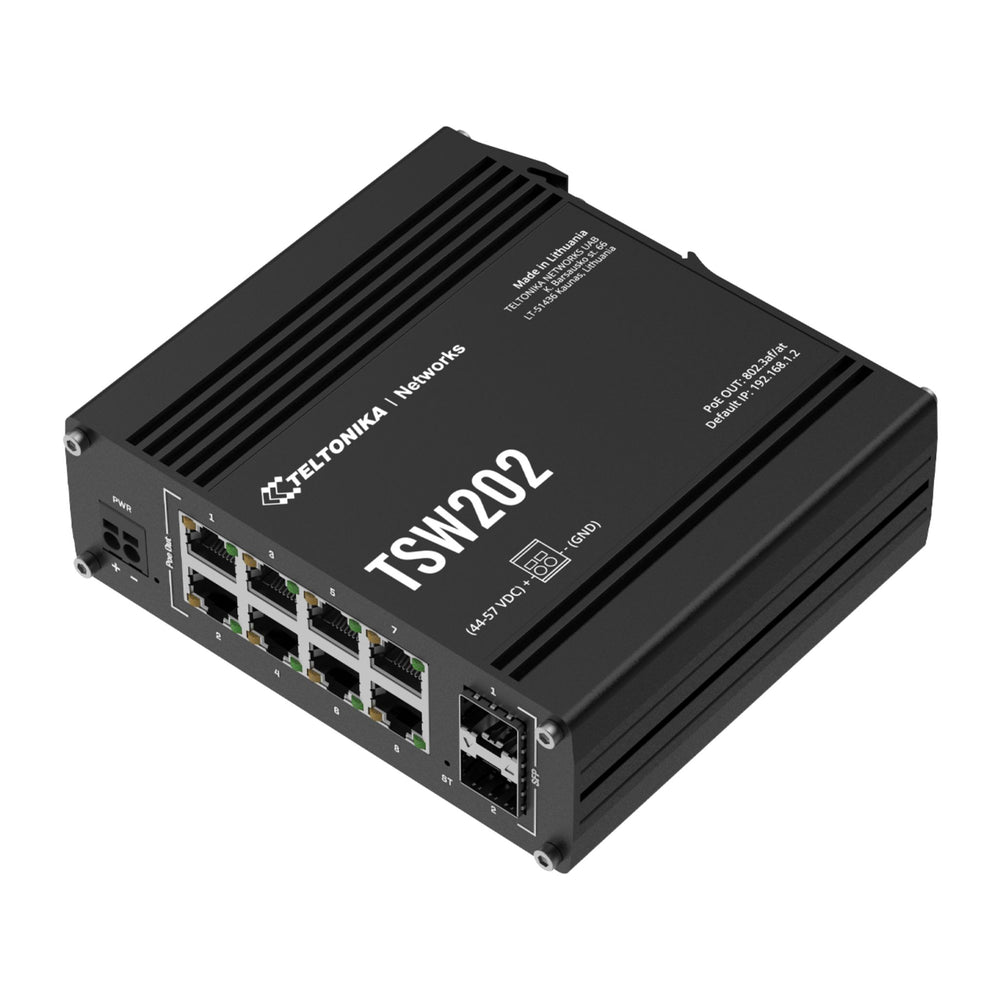

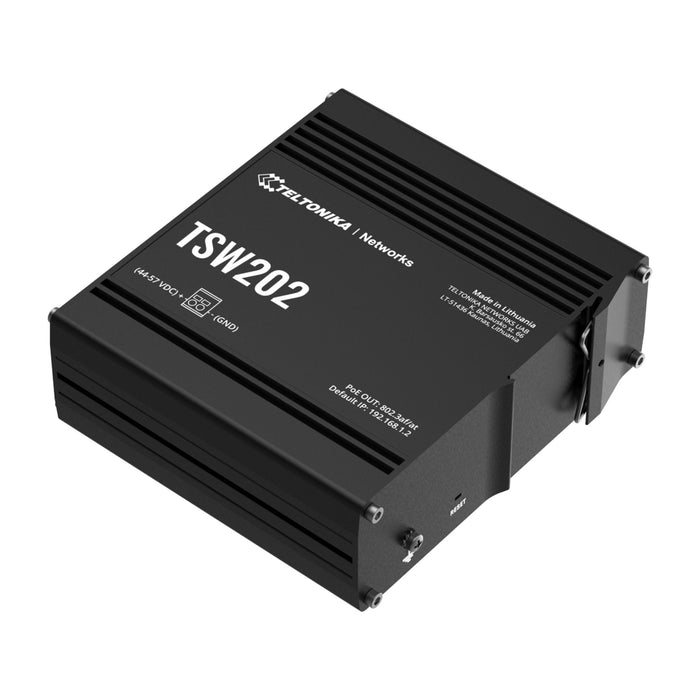

The TSW202 is a PoE+ Ethernet switch that combines advanced network management features with centralized power distribution. This switch supports a variety of industrial protocols and has 2 SFP ports for long-distance fibre optic communication and 8 Gigabit Ethernet ports with 30 W power each. Manage your solutions and enhance M2M communication with this versatile and powerful switch.
Tech Specs
Click here for the Teltonika TSW202 datasheet.
| Device Specifications | |
|---|---|
| Industrial Protocols | |
| Profinet | Profinet Class B conformance (available with optional order code) |
| Ethernet | |
| Ports | Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps Supports auto MDI/MDIX crossover |
| IEEE 802.3 standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Fibre | |
| Ports | 2 x SFP ports |
| Network | |
| MRP | MRP client role, MRP manager role |
| L2 Features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP | DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Port Settings | Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
| Security | |
| Authentication | PAM — preshared key, Radius & TACACS+, IP & login attempts block |
| MAC Filtering | Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC is detected |
| API | Teltonika Networks Web API (beta) support Documentation |
| System Characteristics | |
| RAM | 128 MB, DDR3 |
| FLASH Storage | 16 MB serial flash |
| Firmware / Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep Settings | Update FW without losing current configuration |
| Operating System | TSWOS (OpenWrt based Linux OS) |
| Supported Languages | Busybox shell, Lua, C, C++ |
| Development Tools | SDK package with build environment provided |
| PoE Out | |
| PoE+ Ports | Port 1 - 8 |
| PoE Standards | IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Batch 15 and all batches from Batch 17 onward) IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Batches 1–14 and Batch 16) |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 240 W |
| Max Ethernet Cable Length | 100 m |
| Physical Interfaces | |
| Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
| Fibre | 2 x SFP ports |
| Status LEDs | 1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Power | 1 x 2-pin industrial DC power socket |
| Reset | Software reset button |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing Material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm |
| Weight | 610 g |
| Mounting Options | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |
| Operating Environment | |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki, UL Safety |
| EMC Emissions & Immunity Standards | EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 + A1:2021 EN 61000-3-3:2013 + A1:2019 + A2:2021 ESD: EN 61000-4-2:2009 Radiated Immunity: EN IEC 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 DIP: EN 61000-4-11:2020 |
| Safety Standards | CE: EN IEC 62368-1:2020 + A11:2020 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018 |
| Services | |
| EtherNet/IP | Yes |
| SNMP V2, V3 | Yes |
| LLDP | Yes |
| Network Management | 802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN |
| QoS | Port priority, DSCP priority, 802.1p priority, TOS Scheduling method: SP/WFQ/WRR Bandwidth control: Rate limiting, storm control Traffic Shaper: Port-based shaping |
| Diagnostics | |
| Tools | Cable diagnostic, ping, traceroute, nslookup Ping reboot: Capability to restart PoE in a specific port |
| Performance Specifications | |
| Bandwidth (Non-blocking) | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Packet Buffer | 512 KB |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Safety (Ordinary Locations) | |
| Standards | UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019) |
FAQs
Q1: What is the Teltonika TSW202 and what is it used for?
A: The Teltonika TSW202 is an industrial managed PoE+ Ethernet switch that combines high‑speed data connectivity with advanced network management and Power over Ethernet for industrial and automation applications.
Q2: How many ports does the Teltonika TSW202 have and what speeds do they support?
A: The TSW202 includes 8 Gigabit Ethernet (10/100/1000 Mbps) RJ45 ports with PoE+ support and 2 SFP fibre slots, allowing fast wired connections and flexible uplinks over fibre.
Q3: What PoE capabilities does the Teltonika TSW202 offer?
A: All 8 Ethernet ports support PoE+ (IEEE 802.3af/at), delivering up to 30 W per port with a total PoE budget up to 240 W, enabling both data and power delivery to connected devices from a single switch.
Q4: What management and performance features does the Teltonika TSW202 provide?
A: This switch offers managed network control, including VLANs, QoS, spanning tree protections, and support for industrial protocols such as EtherNet/IP and PROFINET, giving granular control over traffic and configurations.
Q5: What physical and environmental features make the Teltonika TSW202 suitable for industrial use?
A: The TSW202 features a rugged aluminium housing, DIN‑rail or surface mounting, a wide operating temperature range, and an IP30 protection rating, making it robust for harsh industrial environments.
