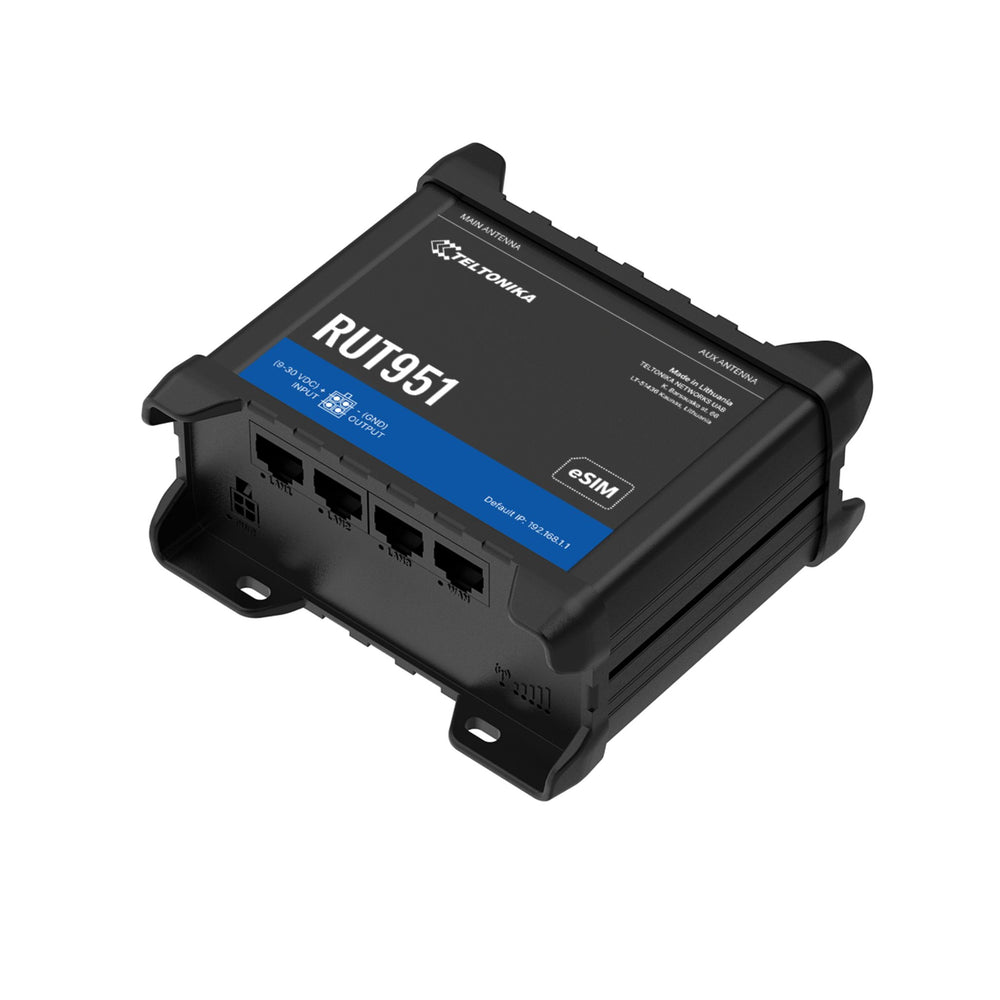

The Teltonika RUT951 has dual SIM 4G cellular connectivity, WiFi, and 4 Ethernet interfaces to meet IoT solution needs. RutOS offers customisation and security options, and it is compatible with the Remote Management System for remote management.
Tech Specs
Click here for the Teltonika RUT951 datasheet.
| Device Specifications | |
|---|---|
| Mobile | |
| Mobile module | 4G LTE Cat 4 up to 150 DL/50 UL Mbps 3G up to 21 DL/5.76 UL Mbps 2G up to 236.8 DL/236.8 UL kbps |
| 3GPP Release | Release 10/11 depending on the hardware version |
| eSIM* | Consumer type eSIM Profile download and removal operations Up to 7 eSIM profiles Does not include data plans *Feature availability varies by order code |
| SIM switch* | 2 SIM cards Auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection *Feature availability varies by order code |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Block / Allow list | Operator block/allow list (by country or separate operators) |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Band management | Band lock Used band status display |
| SIM PIN management | Set, change, or disable SIM card PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and LAN device |
| Passthrough | Router assigns its mobile WAN IP address to another LAN device |
| Wireless | |
| Wireless mode | 802.11b/g/n (Wi-Fi 4) Access Point (AP) Station (STA) |
| Wi-Fi security | WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE AES-CCMP, TKIP, Auto cipher modes Client separation, EAP-TLS (PKCS#12) 802.11w Protected Management Frames (PMF) |
| SSID / ESSID | SSID stealth mode MAC-based access control |
| Wi-Fi users | Up to 100 simultaneous connections |
| Wireless features | Wireless mesh (802.11s) Fast roaming (802.11r) Relayd BSS transition management (802.11v) Radio resource measurement (802.11k) |
| Wireless MAC filter | Allowlist, blocklist |
| QR code generator | Automatic Wi-Fi access via QR scan |
| TravelMate | Forward Wi-Fi hotspot landing page to subsequent devices |
| Ethernet | |
| WAN | 1 × WAN port, 10/100 Mbps IEEE 802.3, 802.3u, 802.3az Auto MDI/MDIX |
| LAN | 3 × LAN ports, 10/100 Mbps IEEE 802.3, 802.3u Auto MDI/MDIX |
| System Characteristics | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB DDR2 |
| Flash storage | 16 MB SPI Flash |
| Physical Specification | |
| Casing material | Aluminium housing Plastic panels |
| Dimensions (W × H × D) | 110 × 50 × 100 mm |
| Weight | 287 g |
| Mounting options | DIN rail Wall mount Flat surface (additional kit required) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress protection | IP30 |
| Network | |
| Routing | Static routing Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) Policy-based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN |
| VoIP passthrough | H.323 and SIP-ALG NAT helpers |
| Connection monitoring | Ping Reboot Wget Reboot Periodic Reboot LCP and ICMP link inspection |
| Firewall | Port forwarding Traffic rules Custom rules TTL target customisation |
| DHCP | Static and dynamic IP allocation DHCP relay Server configuration and status Static leases (MAC with wildcards) |
| QoS / SQM | Traffic prioritisation by source/destination, service, protocol or port WMM 802.11e |
| DDNS | Supported >77 providers Manual configuration supported |
| DNS over HTTPS | Secure DNS resolution via HTTPS proxy |
| Network backup | Wi-Fi WAN Mobile VRRP Wired failover |
| Load balancing | Traffic balancing across multiple WAN connections |
| Security | |
| Authentication | Pre-shared key Digital certificates X.509 certificates TACACS+ Internal & External RADIUS authentication IP and login attempt blocking Time-based login blocking |
| Firewall features | WebUI-enabled predefined rules Unlimited CLI configuration DMZ NAT, NAT-T, NAT64 |
| Attack prevention | DDOS protection (SYN flood, SSH, HTTP/HTTPS) Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN) |
| VLAN | Port and tag-based VLAN separation |
| Mobile quota control | Mobile data limits Customisable period and start time Warning thresholds Phone number alerts |
| Web filter | Website blocklist Allowlist-only browsing |
| Access control | Granular SSH, WebUI, CLI and Telnet access control |
| VPN | |
| OpenVPN | Multiple client and server instances 27 encryption methods supported |
| IPsec | XFRM, IKEv1, IKEv2 14 encryption methods including AES and GCM variants |
| WireGuard | Client and server support |
| ZeroTier | ZeroTier VPN client support |
| GRE | GRE tunnel GRE over IPsec |
| PPTP / L2TP | Client and server support L2TPv3 L2TP over IPsec |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC Reverse polarity protection Surge protection >31 VDC (10 μs max) |
| PoE (Passive) | Passive PoE over spare pairs (LAN1) Mode B 9 – 30 VDC Not compatible with IEEE 802.3af/at/bt |
| Power consumption | < 2 W idle < 7 W maximum |
| Regulatory & Approvals | |
| Certifications | CE, UKCA, ANRT, Kenya, CITC, ICASA, FCC, IC, PTCRB, RCM, Giteki, ECE R118, E-mark, CB, UL/CSA Safety, RoHS, REACH, C1D2 |
| Operating temperature | -40 °C to 75 °C |
| Ingress protection | IP30 |
| Industrial Protocols | |
| OPC UA | Client Server TCP connection |
| MQTT Gateway | MODBUS to MQTT gateway Command sending and data retrieval via MQTT broker |
| MODBUS | Server and Client modes TCP connection Custom register blocks (read/write to router file system) |
| MODBUS data formats | 8-bit: INT, UINT 16-bit: INT, UINT (MSB/LSB first) 32-bit: Float, INT, UINT (ABCD, DCBA, CDAB, BADC) HEX, ASCII |
| Data to Server | HTTP(S) MQTT Azure MQTT Custom LUA scripting support |
| DNP3 | Station and Outstation modes TCP connection |
| DLMS / COSEM | DLMS protocol support Client mode TCP connection |
| API | Teltonika Networks Web API (beta) Configurable endpoints for data retrieval and management |
| Monitoring & Management | |
| Web UI | HTTP/HTTPS access Status and configuration Firmware update CLI access Event, system and kernel logs Internet status monitoring |
| FOTA | Firmware update from server Automatic update notifications |
| SSH | SSH v1 and v2 support |
| SMS management | SMS status and configuration |
| Call control | Reboot Status request Mobile data on/off Output control Answer/hang-up with timer Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem |
| MQTT | MQTT broker MQTT publisher |
| SNMP | SNMP v1, v2, v3 SNMP Trap Brute-force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) support |
| IoT Platforms | |
| ThingWorx | Monitoring of WAN type and IP Mobile operator and signal strength Mobile network type |
| Cumulocity | Device and connection monitoring Reboot and firmware upgrade actions |
| Azure IoT Hub | Data to Server integration Direct method RutOS API execution Plug and Play zero-touch provisioning |
| AWS IoT Core | AWS Jobs support Remote API execution |
| System Characteristics | |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB DDR2 |
| Flash storage | 16 MB SPI Flash |
| Firmware & Operating System | |
| Operating system | RutOS (OpenWrt-based Linux) |
| Supported languages | BusyBox shell Lua C C++ |
| Firmware management | Web UI updates FOTA updates RMS bulk updates Configuration backup and restore Keep settings on firmware upgrade |
| Package Manager | Install additional software packages on the device |
| Input / Output | |
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector, max 30 V / 300 mA |
| Events | Email, RMS, SMS |
| I/O Juggler | Allows to set conditions on I/O to trigger events |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10 µs max |
| PoE (passive) | Passive PoE over spare pairs via LAN1 port (Mode B), 9–30 VDC, not IEEE 802.3af/at/bt compatible |
| Power consumption | < 2 W idle, < 7 W max |
| Physical Interfaces | |

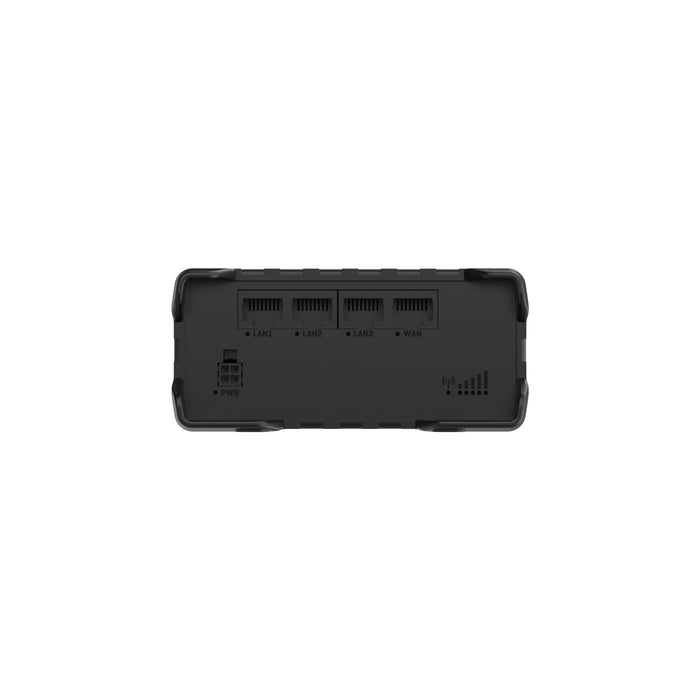

| Ethernet | 4 x RJ45 ports, 10/100 Mbps |
| I/O | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 1 x Bi-color connection status, 5 x Mobile signal strength, 4 x ETH status, 1 x Power |

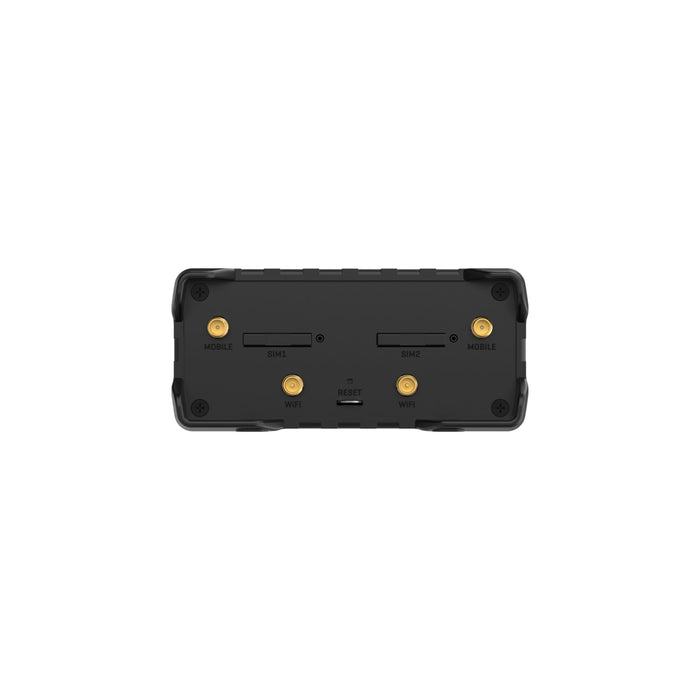

| SIM | 2 x SIM slots (Mini SIM 2FF), 1.8 V/3 V, external SIM holders, eSIM optional |
| Antennas | 2 x SMA LTE, 2 x RP-SMA Wi-Fi |
| Reset | Reboot / User default reset / Factory reset button |
| Physical & Environmental Specifications | |
| Casing material | Aluminium housing, plastic panels |
| Dimensions (W x H x D) | 110 x 50 x 100 mm |
| Weight | 287 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, ANRT, Kenya, CITC, ICASA, FCC, IC, PTCRB, RCM, Giteki, ECE R118, E-mark, CB, UL/CSA Safety, RoHS, REACH, C1D2 |
| Operators | AT&T, Verizon, T-Mobile |
| EMC / Immunity Standards | EN 55032:2015 + A11:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 + A1:2021 EN 61000-3-3:2013 + A1:2019 EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 EN 301 489-52 V1.2.1 ESD: EN 61000-4-2:2009 Radiated Immunity: EN 61000-4-3:2020 EFT: EN 61000-4-4:2012 Surge AC Mains: EN 61000-4-5:2014 + A1:2017 CS: EN 61000-4-6:2014 DIP: EN 61000-4-11:2020 |
| RF Standards | EN 300 328 V2.2.2 EN 301 511 V12.5.1 EN 301 908-1 V15.2.1 EN 301 908-2 V13.1.1 EN 301 908-13 V13.2.1 |
| Safety | CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017 RCM: AS/NZS 62368.1:2022 CB: IEC 62368-1:2018 UL/CSA Safety: UL 62368-1 (3rd Ed.) C22.2 No. 62368-1:19 (3rd Ed.) Hazardous Locations: UL/CSA UL 121201, Class I Div 2 A-D, Zone 2 Group IIC, -40°C ≤ Ta ≤ 75°C, T4, IP30 |
FAQs
Q1: What is the Teltonika RUT951 and what is it used for?
A: The Teltonika RUT951 is an industrial cellular router designed to provide reliable 4G LTE connectivity with dual SIM redundancy, Wi-Fi, and wired Ethernet connections. It is commonly used in industrial networking, remote monitoring, and IoT deployments.
Q2: What cellular and wireless technologies does the Teltonika RUT951 support?
A: The RUT951 supports 4G LTE with fallback to 3G and 2G networks. It also includes a Wi-Fi access point, allowing wireless devices to connect locally alongside the cellular connection.
Q3: How many Ethernet ports are available on the Teltonika RUT951?
A: The router includes four Ethernet ports, typically configurable as one WAN and three LAN ports, enabling multiple wired devices to connect directly to the network.
Q4: Does the Teltonika RUT951 support dual SIM failover?
A: Yes, the RUT951 features dual SIM support, allowing automatic failover between SIM cards to maintain connectivity if the primary mobile network becomes unavailable.
Q5: What features make the Teltonika RUT951 suitable for industrial environments?
A: The RUT951 features a rugged housing, industrial power input, optional I/O interfaces, flexible mounting options such as DIN-rail or wall mounting, and LED status indicators, ensuring dependable operation in demanding industrial conditions.
