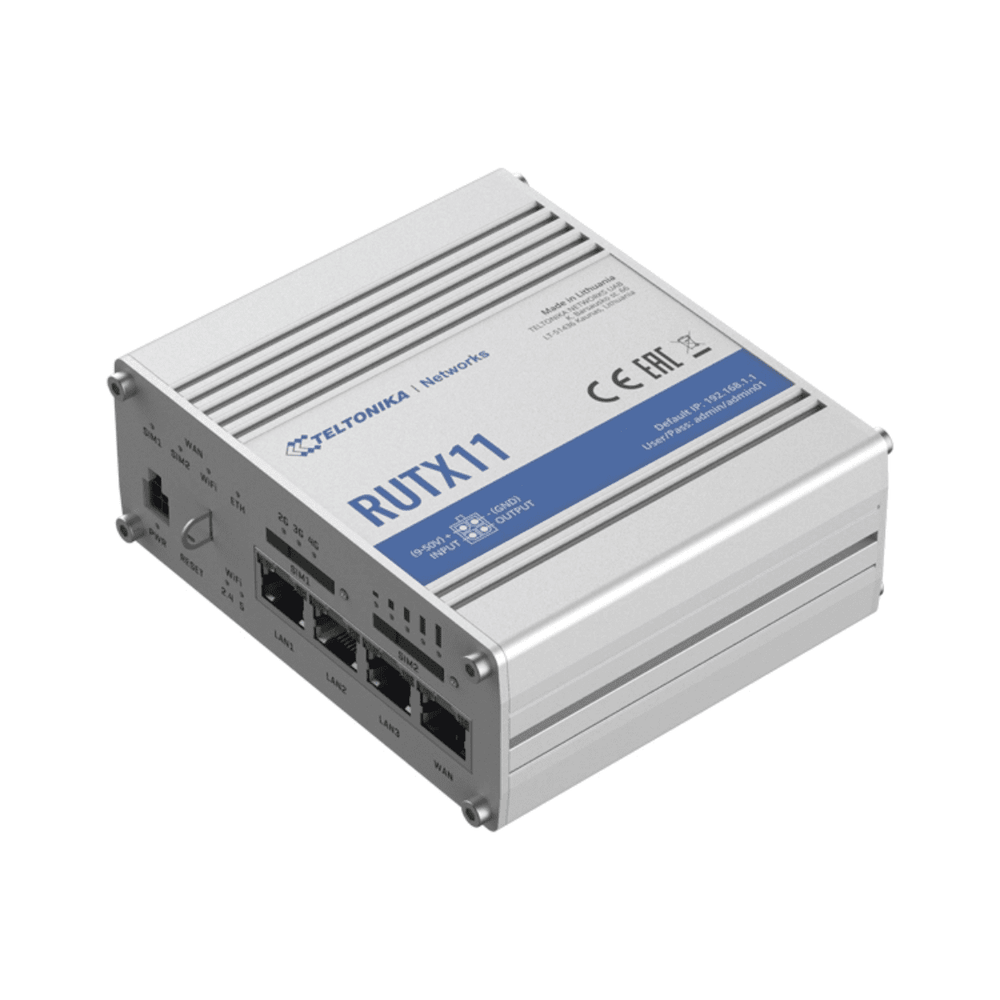

The Teltonika RUTX11 boasts a robust LTE Cat6 router with advanced features. Equipped with dual-sim ports for auto-failover and 802.11ac Wave2 dual-band WiFi, this product is ideal for essential deployments. Its extensive range of internal hardware interfaces makes it suitable for power-intensive industrial applications that prioritise speed and stability. With 4G LTE - Cat 6 DL up to 300 Mbps and 4 x 1 Gbit Ethernet ports, data transfer is seamless, and a backup WAN ensures reliability. Additionally, Bluetooth LE allows direct connection to sensors, simplifying the overall solution.
Tech Specs
Click here for the Teltonika RUTX11 datasheet.
| Mobile | |
|---|---|
| Mobile module | 4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps |
| 3GPP Release | Release 12 |
| eSIM* | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans *Feature availability varies by order code |
| SIM switch* | Dual SIM and eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection *Feature availability varies by order code |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Block/Allow list | Operator block/allow list (by country or separate operators) |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Band management | Band lock, Used band status display |
| SIM idle protection service | Periodically switch to unused SIM to establish data connection to prevent SIM blocking |
| SIM PIN code management | Enables setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Wireless | |
| Wireless mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| Wi-Fi security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w PMF |
| SSID/ESSID | SSID stealth mode and access control based on MAC address |
| Wi-Fi users | Up to 150 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC filter | Allowlist, blocklist |
| Wireless QR code generator | Once scanned, a user will automatically enter your network without needing to input login information |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
| Bluetooth | |
| Bluetooth version | Bluetooth 4.0, Bluetooth low energy (LE) for short range communication |
| Ethernet | |
| WAN | 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| Network | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN (WOL), VXLAN |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation |
| Firewall status page | View all your Firewall statistics, rules, and rule counters |
| Port management | View device ports, enable/disable each, turn auto-configuration on/off, change transmission speed, etc. |
| Network topology | Visual representation of your network, showing which devices are connected to which other devices |
| Hotspot | Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual or group limitations, user management, 9 default customisable themes, optional upload/download of custom hotspot themes |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards |
| QoS / SQM | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | Supported >77 service providers, others can be configured manually |
| DNS over HTTPS | DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS |
| Network backup | Wi-Fi WAN, Mobile, VRRP, Wired options; automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS | Possibility to mount remote file system via SSH protocol |
| VRF support | Initial virtual routing and forwarding (VRF) support |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
| Security | |
| 802.1x | Port-based network access control client |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured firewall rules via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack prevention | DDOS prevention (SYN flood, SSH attack, HTTP/HTTPS attack), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobile quota control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB filter | Block list for unwanted websites, allow list for allowed sites only |
| Access control | Flexible access control of SSH, Web interface, CLI, and Telnet |
| TPM* | Identification and authentication module, TPM 2.0 standard *Feature availability varies by order code |
| Certificate Manager | Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates |
| VPN | |
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel | Proxy to add TLS encryption functionality without changing client/server code |
| DMVPN | Scalable IPsec VPNs, Phase 2 and Phase 3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | ZeroTier VPN client support |
| WireGuard | WireGuard VPN client and server support |
| Tinc | Offers encryption, authentication, and compression in its tunnels. Client and server support |
| Tailscale | Encrypted point-to-point connections using WireGuard protocol, speed, stability, simplicity |
| OPC UA | |
| Supported modes | Client, Server |
| Supported connection types | TCP |
| MODBUS / MQTT Gateway | |
| Modbus MQTT Gateway | Allows sending commands and receiving data from MODBUS Server through MQTT broker |
| MODBUS | Supported modes: Server, Client Supported connection types: TCP, USB |
| Custom registers | MODBUS TCP custom register block requests, read/write to a file inside router, extend MODBUS TCP Client functionality |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD big-endian, DCBA little-endian, CDAB, BADC), HEX, ASCII |
| Data to Server | |
| Protocol | HTTP(S), MQTT, Azure MQTT |
| Data to server | Extract parameters from multiple sources/protocols and send to single server; Custom LUA scripting supported |
| DNP3 | |
| Supported modes | Station, Outstation |
| Supported connection | TCP, USB |
| DLMS / COSEM | |
| DLMS Support | DLMS - standard protocol for utility meter data exchange |
| Supported modes | Client |
| Supported connection types | TCP, USB |
| API | |
| Teltonika Networks Web API | Beta support; configurable API endpoints to retrieve or change data. Documentation: developers.teltonika-networks.com |
| Monitoring & Management | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update notifications, event log, system log, kernel log, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with timer, Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System (RMS) |
| IoT Platforms | |
| ThingWorx | Monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity - Cloud of Things | Monitoring: Device Model, Revision, Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength; reboot and firmware upgrade actions |
| Azure IoT Hub | Configured with Data to Server to send all parameters to cloud; Direct method support; Plug and Play integration with Device Provisioning Service |
| AWS IoT Core | Interact with AWS cloud platform; Jobs support: call device API using AWS Jobs functionality |
| System Characteristics | |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH storage | 256 MB, SPI Flash |
| Firmware / Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| Factory settings reset | Full factory reset restores all system settings, including IP, PIN, and user data to default manufacturer configuration |
| Firmware Customisation | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++, Python, Java in Package Manager |
| Development tools | SDK package with build environment provided |
| GPL customization | Custom branded firmware and web page application by changing colors, logos, and other elements |
| Package Manager | Service used to install additional software on the device |
| Location Tracking | |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| Server software | Supported server software TAVL, RMS |
| Geofencing | Configurable multiple geofence zones |
| USB | |
| Data rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External devices | Connect external HDD, flash drive, modem, printer, USB-serial adapter |
| Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Input / Output | |
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O juggler | Allows setting certain I/O conditions to initiate events |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection 24 - 36 VDC for railway version RUTX11 020G00 |
| PoE (passive) | Power up through LAN1 port, not compatible with IEEE802.3af/at/bt standards, Mode B, 9 - 50 VDC |
| Power consumption | 16 W Max |
| Physical Interfaces | |

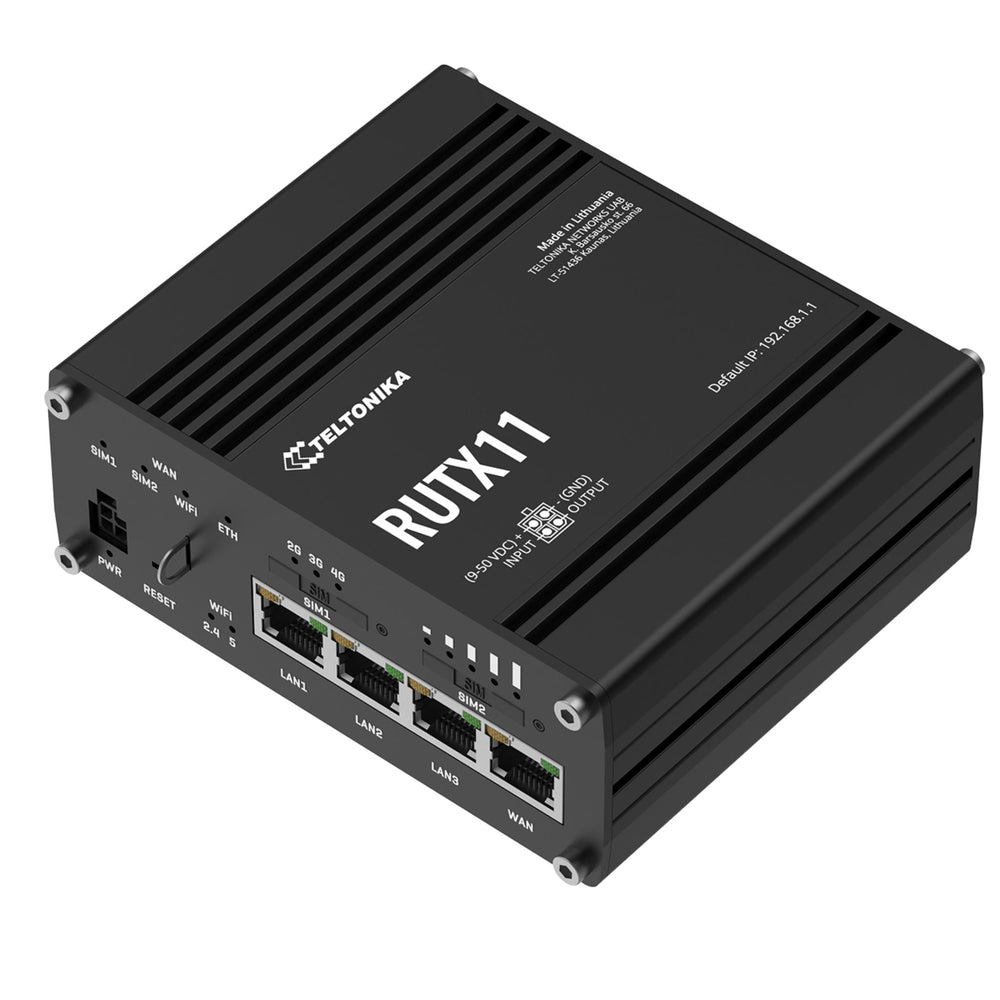

| Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 4 x WAN type, 2 x Mobile connection type, 5 x Mobile signal strength, 8 x LAN status, 1 x Power, 2 x 2.4G & 5G Wi-Fi |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |

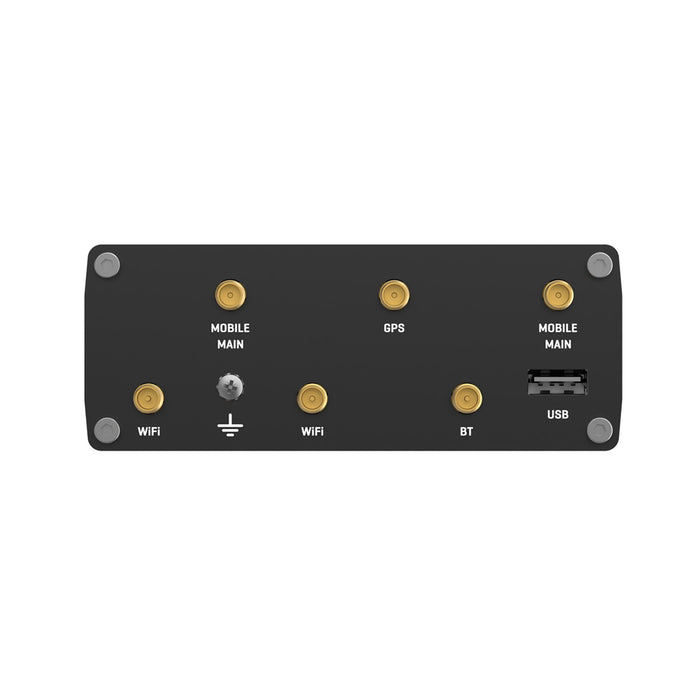

| Antennas | 2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing material | Aluminium housing |
| Dimensions (W x H x D) | 115 x 44.2 x 95.1 mm |
| Weight | 456 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, FCC, EAC, UCRF, CITC, ICASA, ANRT, FCC, IC, PTCRB, RCM, IMDA, SIRIM, NTC, E-mark, Railway, UL/CSA Safety, CB, IC (ISED), RCM |
| Operator | AT&T, Verizon, T-Mobile, Deutsche Telekom AG |
| Vehicle | ECE R10 (E-mark) |
| EMC Emissions & Immunity | |
| Standards | CE/UKCA, FCC/ISED(IC), RCM compliance; detailed EN and AS/NZS standards for emissions, immunity, Wi-Fi, and mobile |
| Safety | |
| Standards | CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020; CB: IEC 62368-1:2018; RCM: AS/NZS 62368.1:2022 |
| RF Exposure | |
| Standards | FCC: 47 CFR - § 2.1091, KDB 447498 D04; IC (ISED): RSS-102 Issue 6 (December 2023) |
FAQs
Q1: What is the Teltonika RUTX11 and what is it used for?
A: The Teltonika RUTX11 is an industrial‑grade dual‑band Wi‑Fi 6 router designed to deliver high‑speed wireless and wired connectivity. It’s ideal for enterprise environments, industrial networks, and applications requiring robust, reliable network performance.
Q2: What Wi‑Fi capabilities does the Teltonika RUTX11 support?
A: The RUTX11 supports dual‑band Wi‑Fi 6 (802.11ax), providing faster wireless speeds, improved connection capacity, and greater efficiency in dense network environments compared to older Wi‑Fi standards.
Q3: How many Ethernet ports does the Teltonika RUTX11 have and what speeds do they support?
A: This router includes multiple Gigabit Ethernet ports that support 10/100/1000 Mbps speeds for wired network connections, enabling high‑performance LAN and WAN links.
Q4: What advanced networking features are available on the Teltonika RUTX11?
A: The RUTX11 offers advanced network features including VPN support, firewall configuration, VLAN segmentation, traffic prioritisation, and options for remote management to support secure and scalable network infrastructures.
Q5: What physical and environmental features make the Teltonika RUTX11 suitable for industrial and enterprise use?
A: The RUTX11 features a robust industrial design, flexible mounting options such as DIN‑rail or wall mounting, sturdy power input choices, and clear LED status indicators, ensuring reliable performance in demanding environments.
