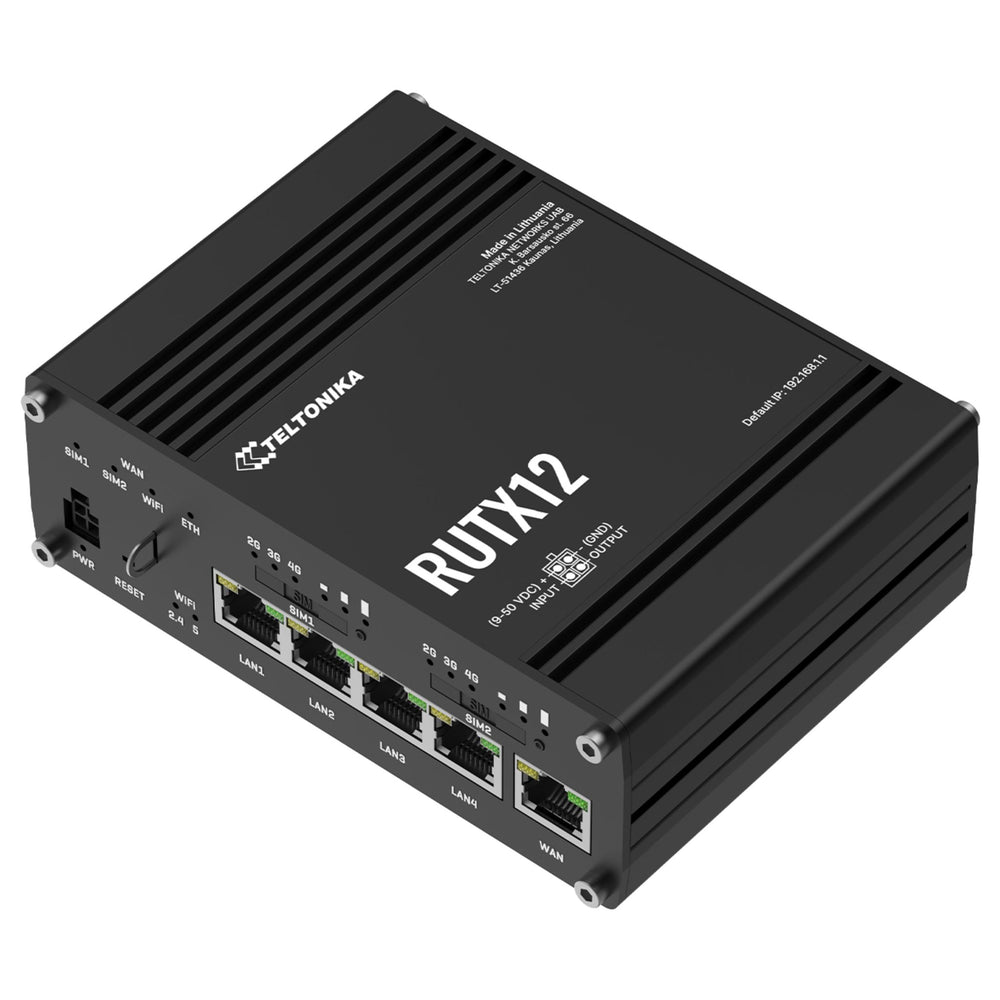

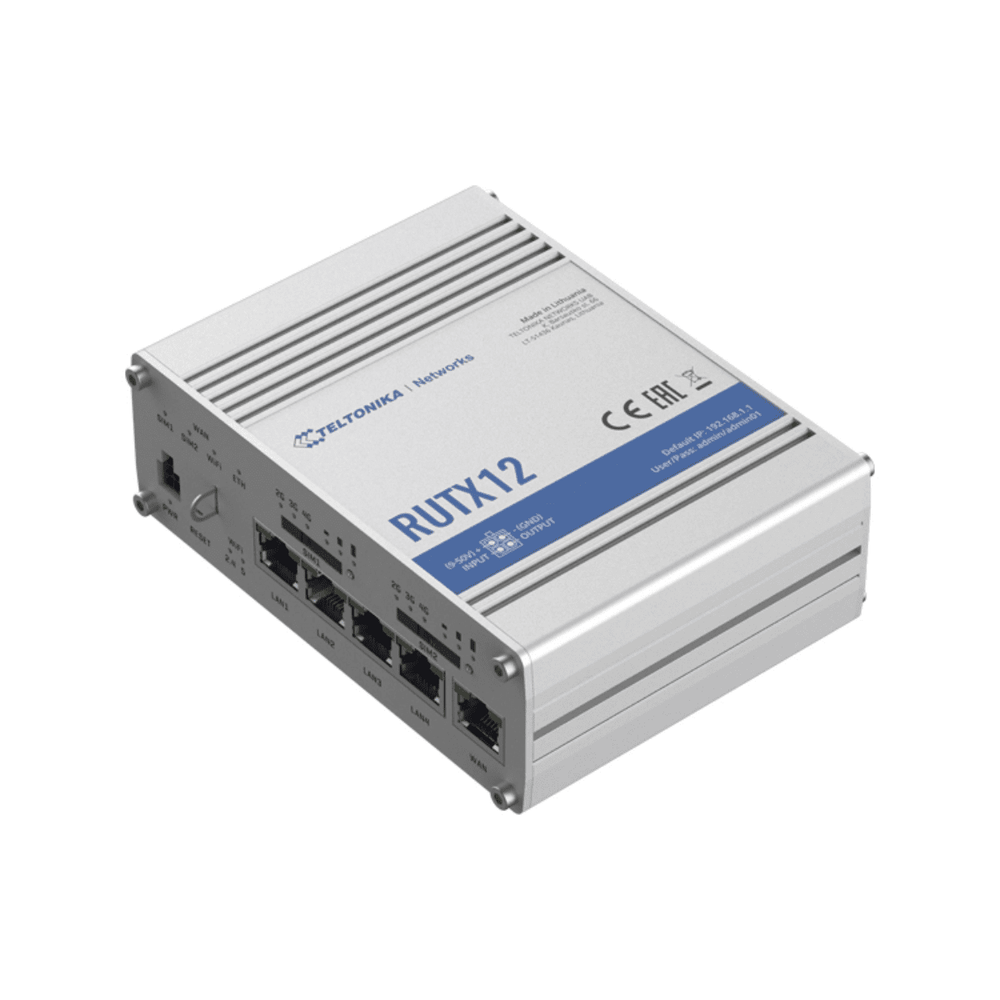

Teltonika's RUTX12 is a highly capable router with two LTE CAT 6 modems allowing for speeds up to 600 Mbps. Its 5 Gigabit Ethernet ports, Wave-2 802.11ac Dual Band WiFi, Bluetooth LE, and USB interfaces, along with RutOS software and security features, make it an indispensable device for critical applications that cannot afford to lose connection.
Tech Specs
Click here for the Teltonika RUTX12 datasheet.
| Device Specifications | |
|---|---|
| Mobile | |
| Mobile module | 2 x 4G LTE Cat 6 up to 300 DL / 50 UL Mbps 3G up to 42 DL / 5.76 UL Mbps |
| 3GPP Release | Release 12 |
| eSIM* | Consumer type eSIM, profile download/removal operations, up to 7 eSIM profiles; does not include data plans *Feature availability varies by order code |
| SIM switch* | Dual SIM and eSIM, auto-switch for weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection *Feature availability varies by order code |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | SMS status, configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Wireless | |
| Wireless mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, AP & STA |
| Wi-Fi security | WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w PMF |
| SSID / ESSID | SSID stealth mode and access control based on MAC address |
| Wi-Fi users | Up to 150 simultaneous connections |
| Wireless connectivity features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC filter | Allowlist, blocklist |
| Wireless QR code generator | Once scanned, user automatically enters network without login input |
| TravelMate | Forward Wi-Fi hotspot landing page to subsequent connected device |
| Bluetooth | Bluetooth 4.0, Bluetooth Low Energy (LE) |
| Ethernet | |
| WAN | 1 x WAN port 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az compliance, auto MDI/MDIX |
| LAN | 4 x LAN ports 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az compliance, auto MDI/MDIX |
| Network | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN, VXLAN |
| VoIP passthrough | H.323 and SIP-ALG NAT helpers for proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | |
| Firewall | Port forward, traffic rules, custom rules, TTL target customization |
| Firewall status page | View all firewall statistics, rules, and rule counters |
| Port management | View device ports, enable/disable, auto-configuration, transmission speed adjustment |
| Network topology | Visual representation showing connections between devices |
| Hotspot / DHCP / QoS | |
| Hotspot | Captive portal, internal/external RADIUS, SMS authorization, SSO, landing pages, walled garden, user scripts, user groups, 9 default themes + custom themes |
| DHCP | Static & dynamic IP allocation, DHCP relay, DHCP server configuration, static leases (MAC with wildcards) |
| QoS / SQM | Traffic priority by source/destination, service, protocol, or port; WMM, 802.11e |
| DDNS | Supports 77+ providers; others configurable manually |
| DNS over HTTPS | Secure DNS resolution via HTTPS proxy |
| Network backup | Wi-Fi WAN, Mobile, VRRP, Wired options; automatic failover supported |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS | Mount remote file system via SSH |
| VRF support | Initial virtual routing and forwarding support |
| Traffic management | Real-time monitoring, wireless signal charts, traffic usage history |
| Security | |
| 802.1x | Port-based network access control client |
| Authentication | Pre-shared key, digital certificates, X.509, TACACS+, internal/external RADIUS, IP/login block, time-based login blocking, random password generator |
| Firewall (Advanced) | Preconfigured rules via WebUI, unlimited CLI rules, DMZ, NAT, NAT-T, NAT64 |
| Attack prevention | DDOS, SSH, HTTP/HTTPS attacks, port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN) |
| VLAN | Port and tag-based VLAN separation |
| Mobile quota control | Mobile data limit, configurable period/start time, warning limit, phone number |
| WEB filter | Block unwanted websites, allow only specified sites |
| Access control | Flexible SSH, WebUI, CLI, Telnet access control |
| TPM* | Identification & authentication module, TPM 2.0 standard *Feature availability varies by order code |
| Certificate Manager | Create CA, server, client, Let's Encrypt, SCEP certificates |
| VPN | |
| OpenVPN | Multiple clients & server simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE, DES-EDE3, DESX-CBC, BF-CBC, CAST5-CBC, AES-128/192/256 (CBC, CFB, OFB, GCM), RC2-40-CBC, AES variants |
| IPsec | XFRM, IKEv1/2, 14 encryption methods including 3DES, DES, AES variants |
| GRE | GRE tunnel, GRE over IPsec support |
| PPTP / L2TP | Client/Server instances, L2TPv3, L2TP over IPsec |
| Stunnel | TLS proxy for clients & servers without code changes |
| DMVPN | Scalable IPsec VPN, Phase 2 & 3, dual hub |
| SSTP | SSTP client instance support |
| ZeroTier | VPN client support |
| WireGuard | Client & server support |
| Tinc | Encrypted/authenticated/compressed tunnels, client & server support |
| Tailscale | Point-to-point encrypted VPN using WireGuard protocol |
| Industrial / IoT | |
| OPC UA | Supported modes: Client, Server Connection: TCP |
| MQTT Gateway | Modbus MQTT Gateway; send commands and receive data from MODBUS Server via MQTT broker |
| MODBUS | Modes: Server, Client Connection types: TCP, USB Custom registers: MODBUS TCP custom register block requests to read/write files inside router Data formats: 8-bit INT/UINT, 16-bit INT/UINT (MSB/LSB), 32-bit float/INT/UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII |
| Data to Server | Protocols: HTTP(S), MQTT, Azure MQTT Extract parameters from multiple sources, send to single server; Custom LUA scripting supported |
| DNP3 | Modes: Station, Outstation Connection: TCP, USB |
| DLMS / COSEM | DLMS standard protocol for utility meter data exchange Modes: Client Connection: TCP, USB |
| API | Teltonika Networks Web API (beta); configurable endpoints to retrieve/change data Documentation: Teltonika API |
| Monitoring & Management | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, event logs, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH / SMS / Call | SSH (v1/v2), SMS status/config, reboot, mobile data on/off, output control, Wi-Fi control |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT / SNMP / JSON-RPC / RMS | MQTT Broker & publisher, SNMP v1/v2/v3, SNMP Trap, brute force protection, JSON-RPC over HTTP(S), Teltonika RMS |
| IoT Platforms | ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core; monitoring WAN, IP, operator, signal, reboot, firmware upgrade |
| System Characteristics | |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB DDR3 |
| FLASH storage | 256 MB SPI Flash |
| Firmware / Configuration | |
| WEB UI | Update FW from file, check server, configuration profiles, backup |
| FOTA / RMS / Keep settings | Update firmware remotely or without losing configuration; multiple device updates |
| Factory settings reset | Full reset restores system, IP, PIN, user data to default |
| Firmware Customisation | RutOS (OpenWrt based), Busybox/Lua/C/C++/Python/Java, SDK, Package Manager, GPL customization for branding |
| Location / GNSS | |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP / Server software / Geofencing | NTRIP protocol, TAVL/RMS server support, configurable geofence zones |
| USB / I/O / Power / Antennas / Physical | |
| USB | USB 2.0, Samba share, USB-to-serial, external HDD/flash/printer/modem support, FAT/FAT32/exFAT/NTFS (read-only)/ext2-4 |
| Input / Output | 1 x Digital Input (0-6V logic low, 8-30V logic high), 1 x Digital Output, open collector, max 30V / 300 mA, I/O juggler, events (Email, RMS, SMS) |
| Power | 4-pin DC socket, 9-50 VDC, reverse polarity & surge protection, PoE passive LAN1 (9-50 VDC), idle <4W, max <22W |

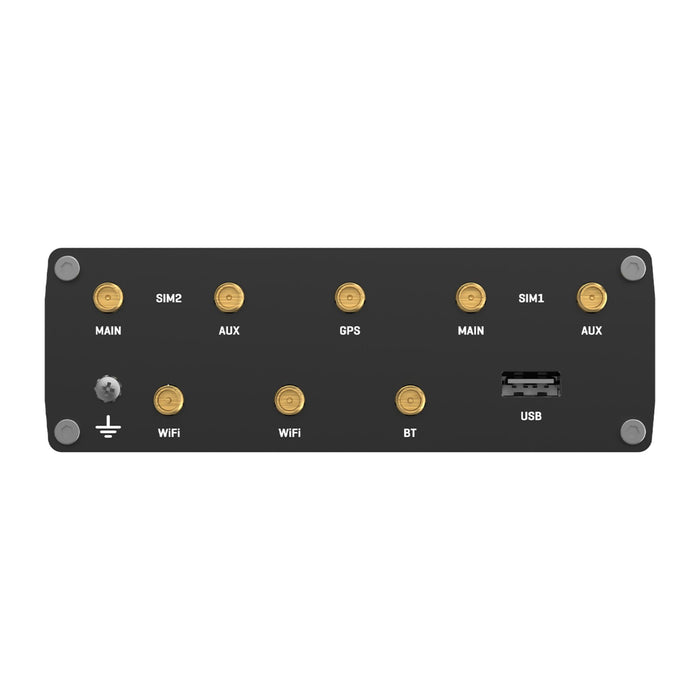

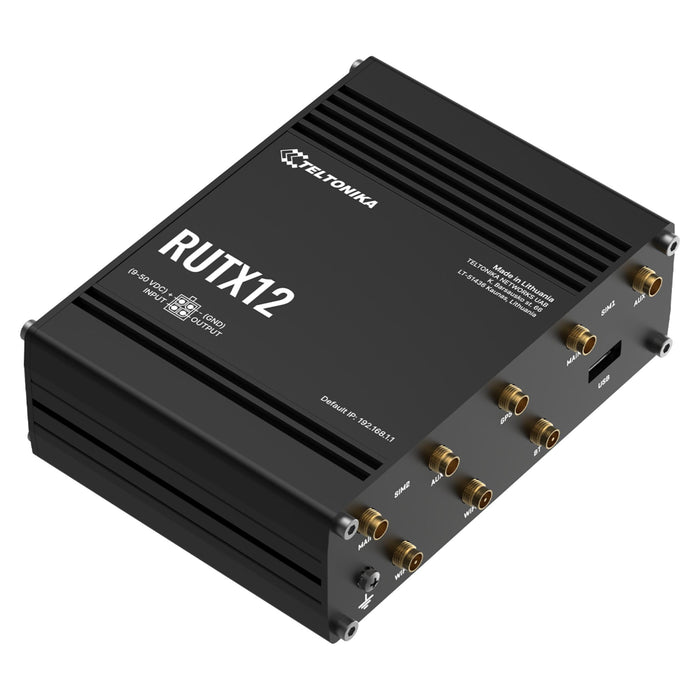

| Antennas | 4 x SMA LTE, 2 x RP-SMA WiFi, 1 x RP-SMA Bluetooth, 1 x SMA GNSS |

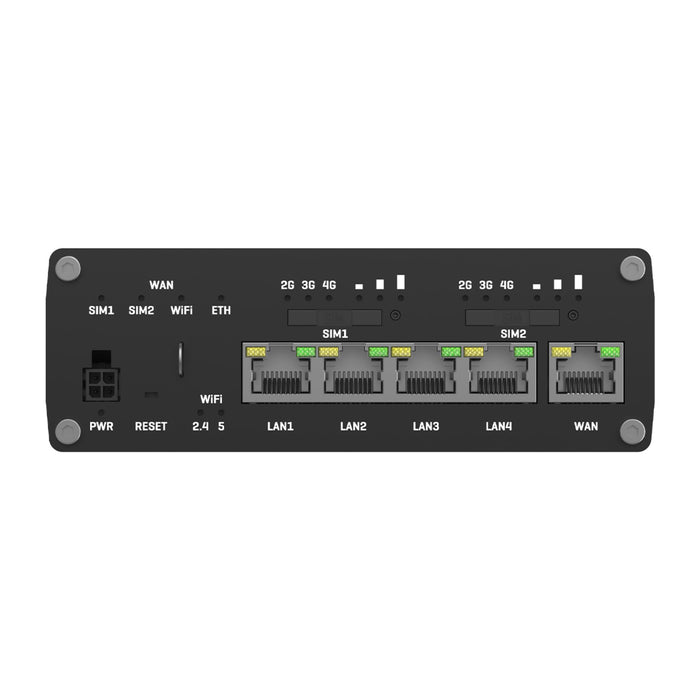

| Physical Interfaces / Reset / Other | 5 x RJ45 Ethernet, 1 x USB A, 2 x SIM slots (Mini), 1 x 4-pin power connector, reboot/user/default/factory reset button, grounding screw |
| Physical Specification | Aluminium housing, 132 x 44.2 x 95.1 mm, 540 g, DIN rail/wall/flat mount (kit required) |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Standards | |
| Regulatory | CE, UKCA, EAC, UCRF, CITC, ANRT, ICASA, NOM, Anatel, RCM, SIRIM, NTC, NBTC, CB, E-mark |
| EMC Emissions & Immunity | EN 55032:2015, EN 55035:2017, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 301 489 series, ESD, Radiated Immunity, EFT, Surge, CS, DIP, RF standards |
| Safety | CE: EN IEC 62368-1:2020 + A11:2020, RCM: AS/NZS 62368.1:2018, CB: IEC 62368-1:2018 |
FAQs
Q1: What is the Teltonika RUTX12 and what is it used for?
A: The Teltonika RUTX12 is an industrial-grade Wi-Fi 6 access point designed to deliver high-speed wireless connectivity in enterprise and industrial environments. It provides scalable wireless coverage for high-density networks.
Q2: What Wi-Fi standards does the Teltonika RUTX12 support?
A: The RUTX12 supports dual-band Wi-Fi 6 (802.11ax), offering faster wireless speeds, improved capacity, and better performance in environments with many connected devices.
Q3: What network interfaces are available on the Teltonika RUTX12?
A: This access point includes Gigabit Ethernet ports with Power-over-Ethernet (PoE) support, allowing both power and network connectivity through a single cable for flexible installation.
Q4: What performance features does the Teltonika RUTX12 offer?
A: The RUTX12 delivers high throughput with MU-MIMO support and advanced channel management to handle multiple simultaneous connections efficiently in busy networks.
Q5: What physical and environmental features make the Teltonika RUTX12 suitable for industrial use?
A: The RUTX12 features a rugged industrial design, flexible mounting options such as wall or ceiling installations, and LED indicators for status monitoring, ensuring reliable operation in demanding environments.
