The Teltonika RUTX14 stands out as the quickest single modem LTE-A Cat 12 router in its product line, featuring Wave-2 dual-band Wi-Fi, five Gigabit Ethernet ports, and automatic failover with two SIM cards. This exceptional device boasts unbeatable network resilience and impressive speeds, making it the ideal solution for high compatibility. Not to mention, its advanced features include incredible download speeds of up to 600 Mbps and upload speeds of up to 150 Mbps with 4G LTE CAT12, DUAL SIM with auto failover and switching scenarios, and Wave-2 802.11ac Dual Band Wi-Fi and Bluetooth LE. Furthermore, the router supports up to 128 port/tag-based VLANs.
Tech Specs
Click here for the Teltonika RUTX14 datasheet.
| Device Specifications | |
|---|---|
| Mobile | |
| Mobile Module | 4G LTE Cat 12 up to 600 DL / 150 UL Mbps; 3G up to 42 DL / 11.2 UL Mbps |
| 3GPP Release | Release 12 |
| SIM Switch | 2 SIM cards, auto-switch for weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Block / Allow List | Operator block/allow list (by country or separate operators) |
| Multiple PDN | Use different PDNs for multiple network access and services |
| Band Management | Band lock, Used band status display |
| SIM Idle Protection | Router periodically switches to unused SIM card to prevent SIM from being blocked |
| SIM PIN Management | Enable setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Wireless | |
| Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, AP/STA |
| Wi-Fi Security | WPA2/WPA3 (Enterprise & PSK), OWE, AES-CCMP, TKIP, Auto-cipher, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w PMF |
| SSID / ESSID | Stealth mode, access control by MAC address |
| Wi-Fi Users | Up to 150 simultaneous connections |
| Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| MAC Filter | Allowlist, blocklist |
| QR Code | Scan to automatically join network |
| TravelMate | Forward Wi-Fi hotspot landing page to subsequent connected device |
| Bluetooth | Bluetooth 4.0, Low Energy (LE) |
| Ethernet | |
| WAN | 1 x WAN port, 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX |
| LAN | 4 x LAN ports, 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX |
| Device Specifications | |
|---|---|
| Mobile | |
| Mobile Module | 4G LTE Cat 12 up to 600 DL / 150 UL Mbps; 3G up to 42 DL / 11.2 UL Mbps |
| 3GPP Release | Release 12 |
| SIM Switch | 2 SIM cards, auto-switch for weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Block / Allow List | Operator block/allow list (by country or separate operators) |
| Multiple PDN | Use different PDNs for multiple network access and services |
| Band Management | Band lock, Used band status display |
| SIM Idle Protection | Router periodically switches to unused SIM card to prevent SIM from being blocked |
| SIM PIN Management | Enable setting, changing, or disabling the SIM card's PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Wireless | |
| Wireless Mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, Dual Band, MU-MIMO, 802.11r fast transition, AP/STA |
| Wi-Fi Security | WPA2/WPA3 (Enterprise & PSK), OWE, AES-CCMP, TKIP, Auto-cipher, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w PMF |
| SSID / ESSID | Stealth mode, access control by MAC address |
| Wi-Fi Users | Up to 150 simultaneous connections |
| Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| MAC Filter | Allowlist, blocklist |
| QR Code | Scan to automatically join network |
| TravelMate | Forward Wi-Fi hotspot landing page to subsequent connected device |
| Bluetooth | Bluetooth 4.0, Low Energy (LE) |
| Ethernet | |
| WAN | 1 x WAN port, 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX |
| LAN | 4 x LAN ports, 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX |
| Network | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| VoIP Passthrough | H.323 and SIP-ALG protocol NAT helpers |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation |
| Firewall Status | View all Firewall statistics, rules, and counters |
| Port Management | View ports, enable/disable, auto-configuration, transmission speed change |
| Network Topology | Visual representation of connected devices |
| Hotspot | Captive portal, internal/external Radius server, MAC/SMS authentication, SSO, landing page, walled garden, user scripts, URL parameters, user groups, 9 customisable themes |
| DHCP | Static/dynamic allocation, relay, server config, static leases, MAC wildcards |
| QoS / SQM | Traffic priority by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | Supported >77 service providers, manual configuration possible |
| DNS over HTTPS | Secure DNS resolution over HTTPS |
| Network Backup | Wi-Fi WAN, Mobile, VRRP, Wired automatic failover |
| Load Balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS | Mount remote file system via SSH |
| VRF Support | Initial virtual routing and forwarding support |
| Security | |
| 802.1x | Port-based network access control client |
| Authentication | Pre-shared key, digital certificates, X.509, TACACS+, Internal & External RADIUS, IP/login block, time-based blocking, random password generator |
| Firewall | Preconfigured rules via WebUI, unlimited via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack Prevention | DDOS, port scan, SSH, HTTP/HTTPS attack prevention |
| VLAN | Port and tag-based VLAN separation |
| Mobile Quota Control | Data limit, customizable period/start/warning, phone number |
| WEB Filter | Block list, allow list |
| Access Control | Flexible access for SSH, Web, CLI, Telnet |
| Certificate Manager | Create CA, server, client, Let's Encrypt, SCEP certificates |
| VPN | |
| OpenVPN | Multiple clients and server simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC, AES-128-CFB, AES-128-CFB1, AES-128-CFB8, AES-128-OFB, AES-128-GCM, AES-192-CBC, AES-192-CFB, AES-192-CFB1, AES-192-CFB8, AES-192-OFB, AES-192-GCM, AES-256-CBC, AES-256-CFB, AES-256-CFB1, AES-256-CFB8, AES-256-OFB, AES-256-GCM |
| IPsec | XFRM, IKEv1, IKEv2, 14 encryption methods including AES & 3DES |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP / L2TP | Client/Server instances simultaneously, L2TPv3, L2TP over IPsec |
| Stunnel | TLS encryption proxy for clients and servers without code changes |
| DMVPN | Scalable IPsec VPNs, Phase 2/3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | VPN client support |
| WireGuard | VPN client and server support |
| Tinc | Encryption, authentication, compression in tunnels; client & server support |
| Tailscale | Encrypted point-to-point VPN connections using WireGuard |
| IoT & Gateway | |
| OPC UA | Client and Server modes, TCP connection |
| MQTT Gateway | MODBUS Server communication through MQTT broker |
| MODBUS | Server and Client, TCP & USB, supports custom registers, multiple data formats (INT, UINT, float, HEX, ASCII) |
| Data to Server | HTTP(S), MQTT, Azure MQTT, custom LUA scripts to aggregate multiple sources |
| DNP3 | Station and Outstation, TCP & USB connection |
| DLMS/COSEM | Client, TCP & USB connection, utility meter data exchange |
| API | Teltonika Networks Web API (beta) for data retrieval & control |
| Monitoring & Management | |
| WEB UI | HTTP/HTTPS, status, config, FW update, CLI, troubleshooting, logs, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH v1 & v2 |
| SMS | Status, configuration |
| Call | Reboot, Status, Mobile on/off, Output on/off, answer/hang-up, Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker & publisher |
| SNMP | v1, v2, v3, SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System |
| IoT Platforms | ThingWorx, Cumulocity, Azure IoT Hub, AWS IoT Core monitoring and device management support |
| System Characteristics | |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH Storage | 256 MB, SPI Flash |
| Firmware / Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, backup |
| FOTA | Firmware update |
| RMS | Update FW/configuration for multiple devices |
| Keep Settings | Update FW without losing configuration |
| Factory Reset | Restore all settings including IP, PIN, and user data to default |
| Firmware Customisation | RutOS (OpenWrt), SDK tools, GPL customization, Package Manager support |
| Location Tracking | |
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Coordinates | WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| NTRIP | Networked Transport of RTCM via Internet Protocol |
| Geofencing | Configurable multiple geofence zones |
| USB | |
| Data Rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External Devices | HDD, flash drive, modem, printer, USB-serial adapter |
| Storage Formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Input / Output | |
| Input | 1 x Digital Input, 0–6 V logic low, 8–30 V logic high |
| Output | 1 x Digital Output, Open collector, max 30 V, 300 mA |
| Events | Email, RMS, SMS |
| I/O Juggler | Set I/O conditions to trigger events |
| Power | |
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 9–50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (Passive) | LAN1 port, Mode B, 9–50 VDC, not compatible with IEEE802.3af/at/bt |
| Power Consumption | Idle: < 4 W, Max: < 22 W |
| Physical Interfaces | |
| Ethernet | 5 x RJ45, 10/100/1000 Mbps |
| I/O’s | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 2 x connection, 3 x signal strength, 10 x Ethernet, 4 x WAN, 1 x Power, 2 x 2.4G Wi-Fi, 2 x 5G Wi-Fi |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external holders |

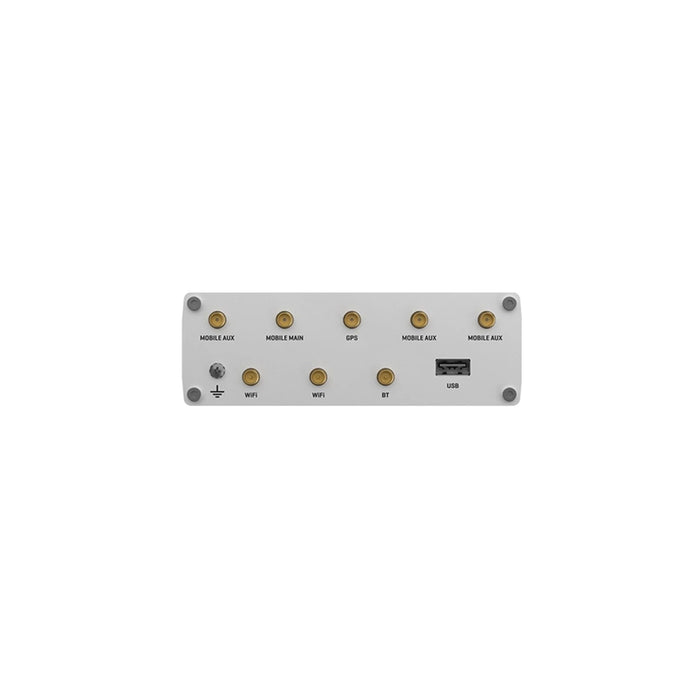

| Antennas | 4 x SMA LTE, 2 x RP-SMA Wi-Fi, 1 x RP-SMA Bluetooth, 1 x SMA GNSS |
| USB | 1 x USB-A port for external devices |
| Reset | Reboot/User default/Factory reset button |
| Other | 1 x Grounding screw |
| Physical Specification | |
| Casing Material | Full aluminium housing |
| Dimensions (W x H x D) | 132 x 44 x 95 mm |
| Weight | 515 g |
| Mounting Options | DIN rail, wall mount, flat surface (additional kit required) |
| Operating Environment | |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, RCM, UCRF, CITC, Kenya, ICASA, ANRT, NTC, SIRIM, GCF, CB, RoHS, REACH |
| EMC Emissions & Immunity | EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489 series, ESD EN 61000-4-2, Radiated immunity EN IEC 61000-4-3, EFT EN 61000-4-4, Surge EN 61000-4-5, CS EN 61000-4-6, DIP EN IEC 61000-4-11 |
| RF | EN 300 328, EN 301 893, EN 300 440, EN 301 908-1/2/13, EN 303 413 |
| Safety Standards | CE EN 62368-1, EN 62232, EN 50385, UL/CSA UL 62368-1, CAN/CSA C22.2 No. 62368-1, CB IEC 62368-1 |
FAQs
Q1: What is the Teltonika RUTX14 and what is it used for?
A: The Teltonika RUTX14 is an industrial Wi‑Fi 6 access point designed to deliver high‑speed wireless coverage and support a large number of connected devices. It is ideal for enterprise networks, industrial environments, and large‑area deployments requiring robust wireless connectivity.
Q2: What Wi‑Fi standards and bands does the Teltonika RUTX14 support?
A: The RUTX14 supports dual‑band Wi‑Fi 6 (802.11ax), offering enhanced speeds, capacity, and efficiency over traditional Wi‑Fi standards for modern, dense wireless environments.
Q3: What network interfaces are available on the Teltonika RUTX14?
A: This access point includes Gigabit Ethernet ports with Power‑over‑Ethernet (PoE) support, enabling both network connectivity and power over a single cable for flexible installation.
Q4: What performance features does the Teltonika RUTX14 offer?
A: The RUTX14 delivers high‑throughput wireless performance, MU‑MIMO support, and advanced channel management for efficient spectrum use, making it suitable for high‑density client environments.
Q5: What physical and environmental features make the Teltonika RUTX14 suitable for industrial use?
A: The access point has a rugged design, flexible mounting options such as wall or ceiling mounts, and LED status indicators that simplify installation and monitoring, ensuring reliable performance in demanding enterprise and industrial environments.
