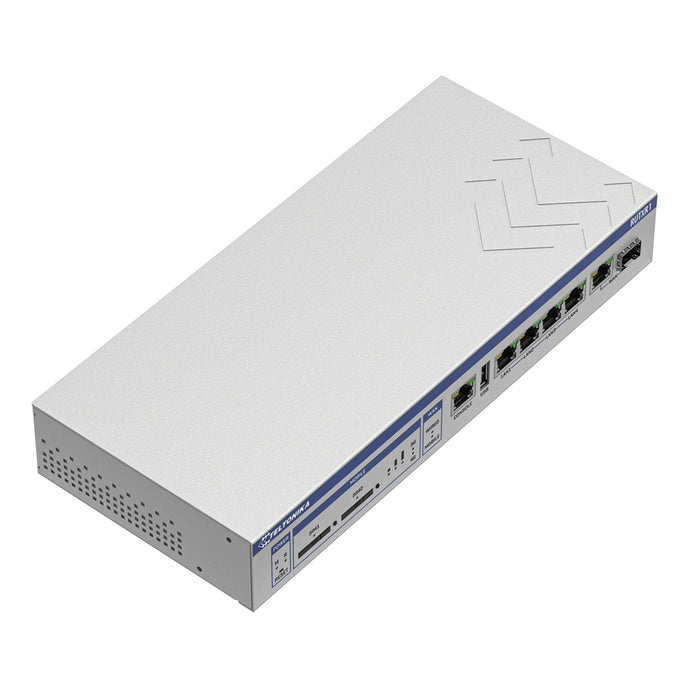

The Teltonika RUTXR1 is a rack-mounted LTE Cat6 router with redundant power, customizable WAN interfaces, and powerful WiFi. Its unique features make it ideal for small or home offices requiring a fast and reliable connection.
Tech Specs
Click here for the Teltonika RUTXR1 datasheet.
| Device Specifications | |
|---|---|
| Mobile | |
| Mobile module | 4G LTE Cat 6 up to 300 DL/50 UL Mbps 3G up to 42 DL/5.76 UL Mbps |
| 3GPP Release | Release 11 |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| SMS | SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Block/Allow list | Operator block/allow list (by country or separate operators) |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Band management | Band lock, Used band status display |
| SIM idle protection service | Periodically switch to the unused SIM card and establish a data connection to prevent SIM blockage |
| SIM PIN code management | Set, change, or disable SIM card PIN |
| APN | Auto APN |
| Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
| Wireless | |
| Wireless mode | 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps (Dual Band, MU-MIMO) 802.11r fast transition, Access Point (AP), Station (STA) |
| Wi-Fi security | WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| SSID/ESSID | SSID stealth mode and access control based on MAC address |
| Wi-Fi users | Up to 150 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC filter | Allowlist, blocklist |
| Wireless QR code generator | Once scanned, user automatically joins the network without entering login information |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
| Ethernet | |
| WAN | 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, 802.3u, 802.3az, supports auto MDI/MDIX crossover |
| Fibre | 1 x SFP port (cannot work simultaneously with Ethernet WAN port) |
| LAN | 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, 802.3u, 802.3az, supports auto MDI/MDIX crossover |
| Network | |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers for proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation |
| Firewall status page | View all Firewall statistics, rules, and rule counters |
| Port management | View device ports, enable/disable ports, auto-configuration toggle, change transmission speed |
| Network topology | Visual representation of connected devices |
| Hotspot | Captive portal, internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual/group limitations, user management, 9 default customisable themes, upload/download custom themes |
| DHCP | Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases (MAC with wildcards) |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol, or port; WMM, 802.11e |
| DDNS | Supported >77 service providers; others can be configured manually |
| DNS over HTTPS | DNS over HTTPS proxy enables secure DNS resolution over HTTPS |
| Network backup | Wi-Fi WAN, Mobile, Fiber, VRRP, Wired options for automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS | Mount remote file system via SSH protocol |
| VRF support | Initial virtual routing and forwarding (VRF) support |
| Traffic Management | Real-time monitoring, wireless signal charts, traffic usage history |
| Security | |
| 802.1x | Port-based network access control client |
| Authentication | Pre-shared key, digital certificates, X.509, TACACS+, Internal & External RADIUS, IP & login attempts block, time-based login blocking, built-in random password generator |
| Firewall | Preconfigured firewall rules via WebUI, unlimited configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Attack prevention | DDOS prevention (SYN flood, SSH, HTTP/HTTPS), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobile quota control | Mobile data limit, customizable period, start time, warning limit, phone number |
| WEB filter | Block list for unwanted websites, allow list for allowed sites only |
| Access control | Flexible access control for SSH, Web interface, CLI, and Telnet |
| Certificate Manager | Tool to create CA, server, client, let's encrypt, SCEP certificates |
| VPN | |
| OpenVPN | Multiple clients and a server can run simultaneously, 27 encryption methods |
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE tunnel, GRE tunnel over IPsec support |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
| Stunnel | Proxy to add TLS encryption to existing clients and servers without program code changes |
| DMVPN | Scalable IPsec VPNs, Phase 2 & 3, Dual Hub support |
| SSTP | SSTP client instance support |
| ZeroTier | VPN client support |
| WireGuard | VPN client and server support |
| Tinc | Encryption, authentication, and compression in tunnels; Client and server support |
| Tailscale | Encrypted point-to-point connections via WireGuard protocol; speed, stability, simplicity |
| IoT & Protocols | |
| OPC UA | Supported modes: Client, Server Supported connection types: TCP |
| MQTT Gateway | Modbus MQTT Gateway: send commands and receive data from MODBUS Server through MQTT broker |
| MODBUS | Supported modes: Server, Client Supported connection types: TCP, USB Custom registers and data formats (8-bit, 16-bit, 32-bit, HEX, ASCII) |
| Data to Server | Protocol: HTTP(S), MQTT, Azure MQTT Extract parameters from multiple sources and send to a single server; Custom LUA scripting supported |
| DNP3 | Supported modes: Station, Outstation Supported connection: TCP, USB |
| DLMS/COSEM | DLMS standard for utility meter data exchange Supported modes: Client Supported connection types: TCP, USB |
| API | Teltonika Networks Web API (beta); configurable endpoints: retrieve or change data |
| Monitoring & Management | |
| WEB UI | HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, Internet status |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| Receive email status alerts of various services | |
| SMS | SMS status, SMS configuration |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with timer, Wi-Fi on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API over HTTP/HTTPS |
| RMS | Teltonika Remote Management System |
| IoT Platforms | ThingWorx: monitor WAN type, IP, operator, signal, network type Cumulocity: monitor device model, revision, serial, WAN type/IP, mobile cell ID, ICCID, IMEI, connection, operator, signal; reboot & firmware upgrade actions Azure IoT Hub: Data to Server integration, Direct method support, Plug and Play via Device Provisioning Service AWS IoT Core: interact with AWS cloud platform; Jobs support |
| System Characteristics | |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH storage | 256 MB, SPI Flash |
| Firmware / Configuration | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Firmware update |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| Factory settings reset | Restores all system settings, including IP, PIN, user data, to default configuration |
| FIRMWARE CUSTOMISATION | RutOS (OpenWrt based Linux OS), supported languages: Busybox shell, Lua, C, C++, Python, Java (Package Manager) SDK package with build environment, GPL customization, branded firmware & web page customization, Package Manager for additional software |
| Location Tracking | |
| NTRIP | NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
| USB | |
| Data rate | USB 2.0 |
| Applications | Samba share, USB-to-serial |
| External devices | External HDD, flash drive, additional modem, printer, USB-serial adapter |
| Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
| Power | |

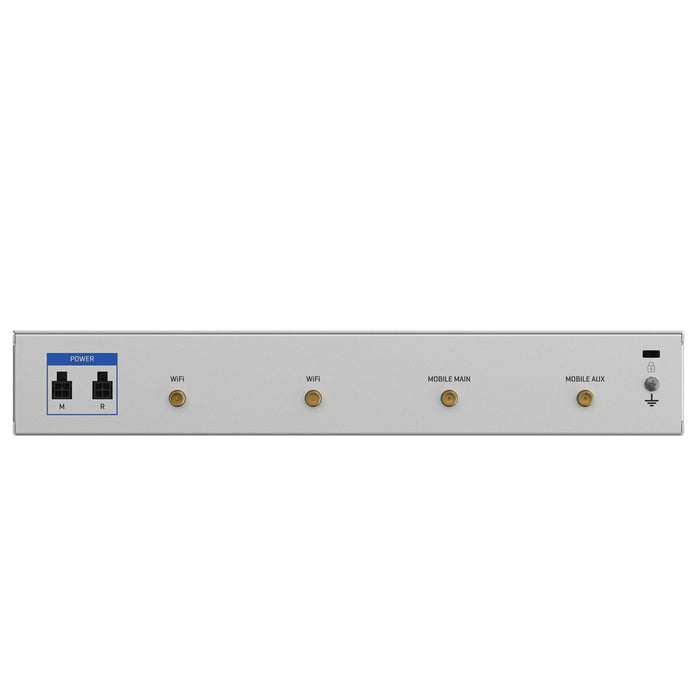

| Connector | 2 x 4-pin industrial DC power sockets for main and redundancy power source |
| Input voltage range | 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
| Power consumption | Idle: < 3W, Max: 18W |
| Physical Interfaces | |

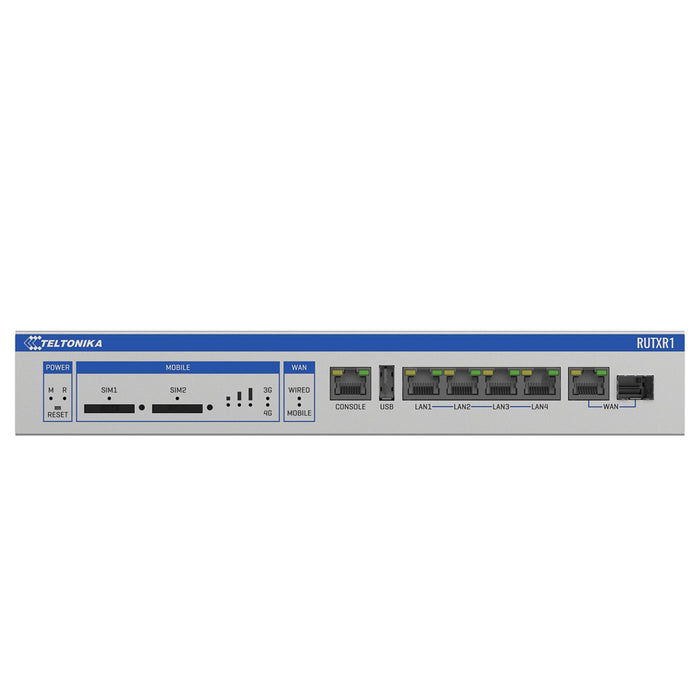

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 2 x WAN type, 2 x Mobile connection type, 3 x Mobile signal strength, 2 x active SIM, 10 x Ethernet status, 2 x Console status, 2 x Power |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Power | 2 x 4-pin DC connector |
| Antennas | 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Grounding | 1 x Grounding screw, 1 x lock |
| Fibre | 1 x SFP port |
| Physical Specification | |
| Casing material | Full steel housing |
| Dimensions (W x H x D) | 272 x 42.6 x 122.6 mm |
| Weight | 1093 g |
| Mounting options | Rack mounting kit |
| Operating Environment | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Regulatory & Type Approvals | |
| Regulatory | CE, UKCA, EAC, UCRF, CITC, ANRT, RCM, NTC, CB |
| EMC Emissions & Immunity Standards | EN 55032:2015 + A11:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 EN 61000-3-3:2013 + A1:2019 EN 301 489-1:V2.2.3 EN 301 489-3:V2.1.1 EN 301 489-17:V3.2.4 Draft EN 301 489-52:V1.1.2 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains) | EN 61000-4-5:2014 + A1:2017 |
| CS | EN 61000-4-6:2014 |
| DIP | EN IEC 61000-4-11:2020 |
| RF Standards | EN 300 328:V2.2.2 EN 301 893:V2.1.1 EN 300 440:V2.2.1 EN 301 908-1:V13.1.1 EN 301 908-2:V13.1.1 EN 301 908-13:V13.1.1 |
| Safety Standards | CE: EN 62368-1:2014 + A11:2017, EN 62232:2017, EN 50385:2017 UL/CSA: UL 62368-1 (3rd Ed., Rev. Dec 2019), CAN/CSA C22.2 No. 62368-1:19 (3rd Ed.) CB: IEC 62368-1:2018 |
FAQs
Q1: What is the Teltonika RUTXR1 and what is it used for?
A: The Teltonika RUTXR1 is a high‑performance Wi‑Fi 6 access point designed to deliver fast wireless connectivity with support for mesh networking. It’s ideal for expanding Wi‑Fi coverage in enterprise, industrial, and large‑area environments.
Q2: What Wi‑Fi technologies does the Teltonika RUTXR1 support?
A: The RUTXR1 supports dual‑band Wi‑Fi 6 (802.11ax), providing high throughput, improved device capacity, and enhanced efficiency in dense wireless environments compared to earlier Wi‑Fi standards.
Q3: What network interfaces are available on the Teltonika RUTXR1?
A: This access point includes Gigabit Ethernet ports for wired backhaul or LAN connections, enabling stable high‑speed links between wired infrastructure and wireless clients.
Q4: What features does the Teltonika RUTXR1 offer for wireless network management?
A: The RUTXR1 supports mesh networking, allowing multiple access points to work together for seamless coverage. It also offers secure wireless configuration options such as SSID management, encryption standards, and client access control.
Q5: What physical and environmental features make the Teltonika RUTXR1 suitable for enterprise and industrial use?
A: The RUTXR1 has a rugged industrial design, supports flexible mounting options, and includes status LEDs for easy network monitoring. Its build quality and performance make it suitable for demanding indoor and sheltered outdoor environments.
