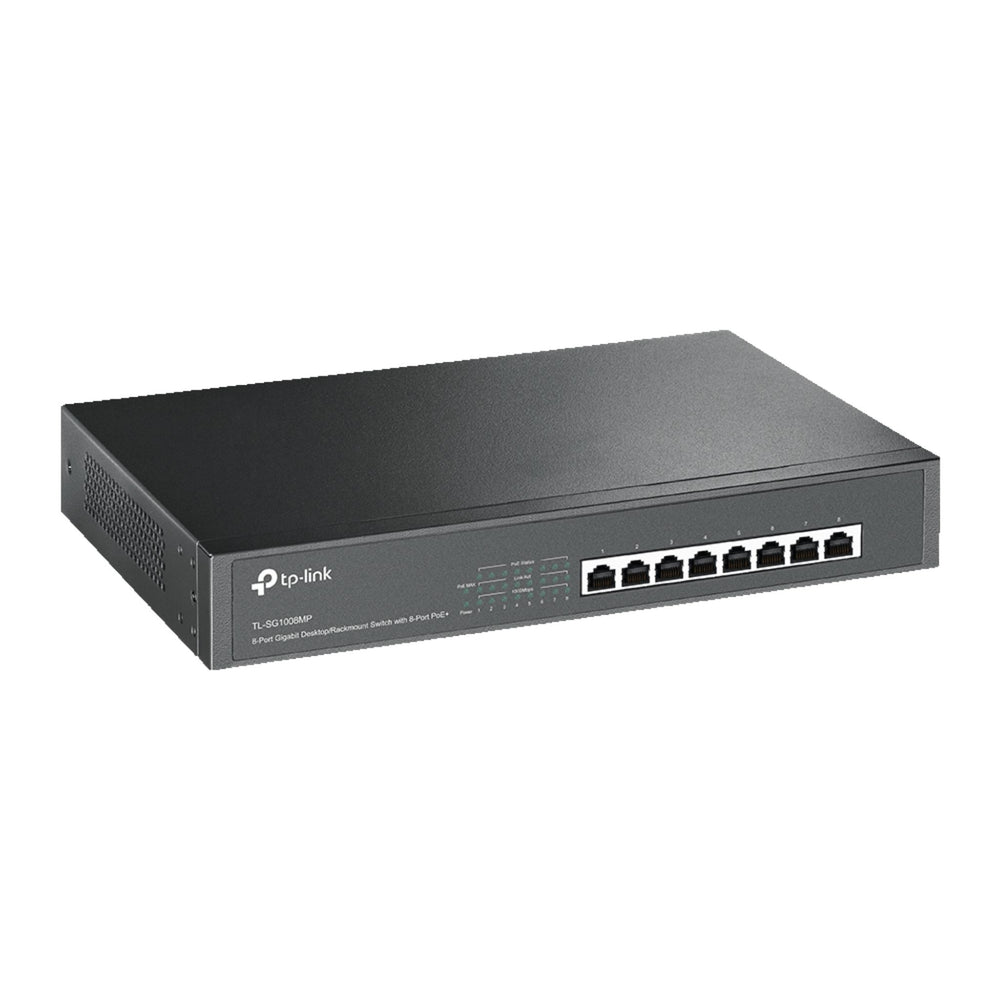

TP-Link SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
The TP-Link SG1008MP is an 8-port Gigabit Desktop/Rackmount Switch featuring 8 PoE+ ports that enable easy expansion of a wired network by transmitting both power and data over a single Ethernet cable. Boasting a total power budget of 153 W* and providing up to 30 W per port, the TL-SG1008MP is capable of powering high-powered devices such as wireless Access Points (APs), IP Cameras, and IP Phones. This switch also incorporates energy-efficient technology, resulting in reduced power consumption and making it an environmentally-friendly choice for business networks.
Tech Specs
Click here for the TP-Link SG1008MP datasheet.
| Device Specifications | |
|---|---|
| Hardware Features | |
| Interface | 8 × 10/100/1000 Mbps RJ45 Ports AUTO Negotiation / AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (max 100m) EIA/TIA-568 100Ω STP (max 100m) 100BASE-TX: UTP category 5, 5e cable (max 100m) EIA/TIA-568 100Ω STP (max 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (max 100m) EIA/TIA-568 100Ω STP (max 100m) |
| Fan Quantity | 1 |
| Physical Security Lock | No |

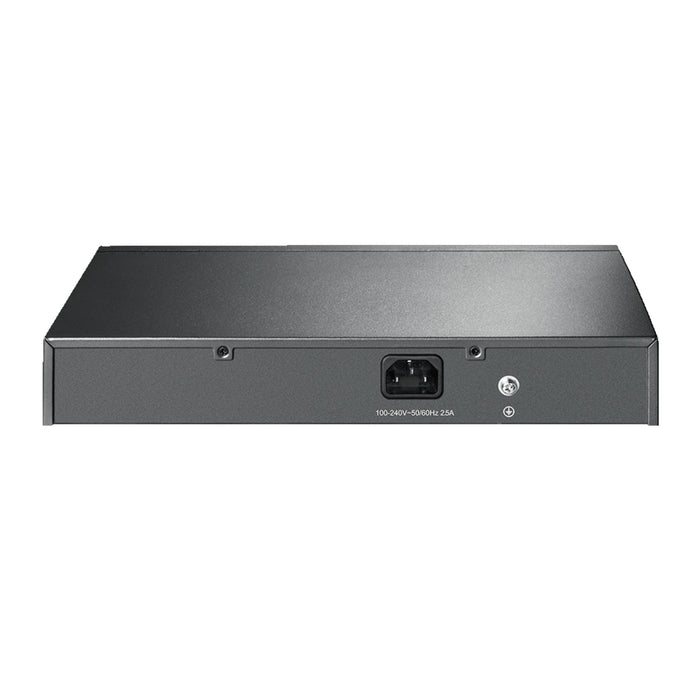

| Power Supply | 100-240VAC, 50/60Hz |
| Packet Forwarding Rate | 11.904 Mpps |
| PoE+ Ports (RJ45) | Standard: 802.3af/at compliant PoE+ Ports: 8 Ports Power Supply: 153W |
| MAC Address Table | 4K |
| Buffer Size | 1.5 Mbits |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Dimensions (W x D x H) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| Mounting | Desktop / Rack Mountable |
| Max Power Consumption | 8.57 W (220V/50Hz, no PD connected) 173.65 W (110V/60Hz, with 153W PD connected) |
| Max Heat Dissipation | 29.22 BTU/h (no PD connected) 592.15 BTU/h (with 153W PD connected) |
| Software Features | |
| Advanced Features | Compatible with IEEE 802.3af/at Compliant PDs Priority Function MAC Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| Transfer Method | Store-And-Forward |
| Others | |
| Certification | FCC, CE, RoHS |

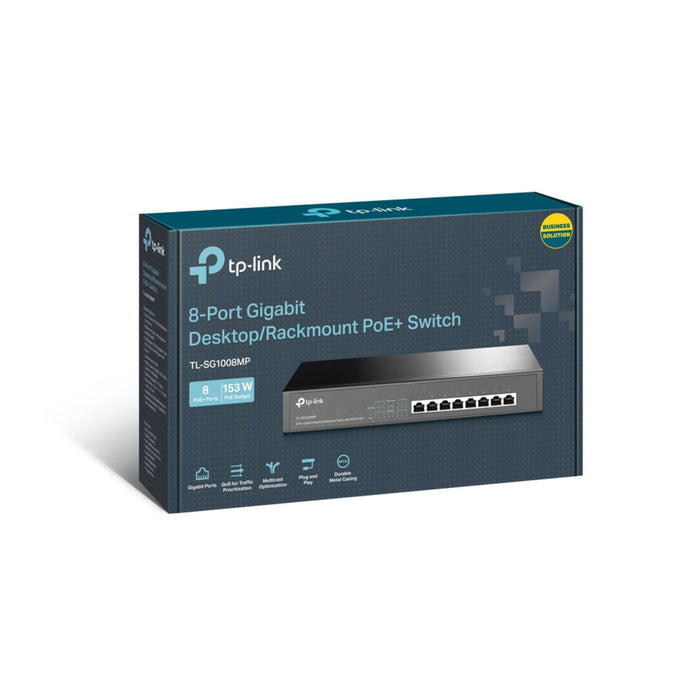

| Package Contents | TL-SG1008MP Power Cord Installation Guide Rackmount Kit Rubber Feet |
| Environment | Operating Temperature: 0℃~50℃ (32℉~122℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
FAQs
Q1: What is the TP‑Link TL‑SG1008MP and what is it used for?
A: The TP‑Link TL‑SG1008MP is an unmanaged 8‑port Gigabit Ethernet switch with integrated PoE+ support. It’s ideal for small office, retail, or home installations that need both network connectivity and power delivery over Ethernet.
Q2: How many PoE+ ports does the TP‑Link TL‑SG1008MP have and what power does it deliver?
A: The TL‑SG1008MP features 4 PoE+ (802.3af/at) ports, delivering power and data to compatible network devices such as IP cameras, access points, and VoIP phones without requiring separate power supplies.
Q3: What are the network speeds supported by the TP‑Link TL‑SG1008MP?
A: This switch provides Gigabit Ethernet (10/100/1000 Mbps) on all 8 ports, offering high‑speed wired connectivity for network devices and seamless data transfer across the network.
Q4: How is the TP‑Link TL‑SG1008MP powered and installed?
A: The TL‑SG1008MP is powered via an external power adapter and supports plug‑and‑play operation with no configuration required. Its desktop form factor makes it easy to place on a shelf or mount in small network spaces.
Q5: What physical and functional features does the TP‑Link TL‑SG1008MP offer?
A: The switch includes LED indicators for link, activity, and PoE status, a compact housing suitable for desktop or shelf placement, and 802.3x flow control to help reduce transmission errors and maximize throughput.
