Tycon Systems DC PoE Injector, 9-36VDC IN, 48V 17W 820.3af PoE OUT - TP-DCDC-1248D
Please contact us for stocking information.
The Tycon Systems TP-DCDC-1248D converts DC to DC at low cost and high reliability. It can provide 48VDC Power over Ethernet from 12 or 24V battery systems, with an integrated POE injector for the CAT5/6 Ethernet cable. It accepts input voltage between 9VDC and 36VDC and outputs regulated 48VDC. It has two common (-) and two (+) connections for two power sources and includes protections for surge, short circuit, and overload. The input and output are isolated and it comes in a metal enclosure option for industrial use.
Tech Specs
Click here for the Tycon Power TP-DCDC-1248D datasheet.
| Device Specifications | |
|---|---|
| Tycon DC PoE Injector 48V 802.3af | |
| DC Input Voltage | 9VDC – 36VDC |
| DC Input Connector | Removable screw-type compression wire terminal (12 AWG max) |
| DC Output Voltage (±2.5%) | 48V (802.3af) |

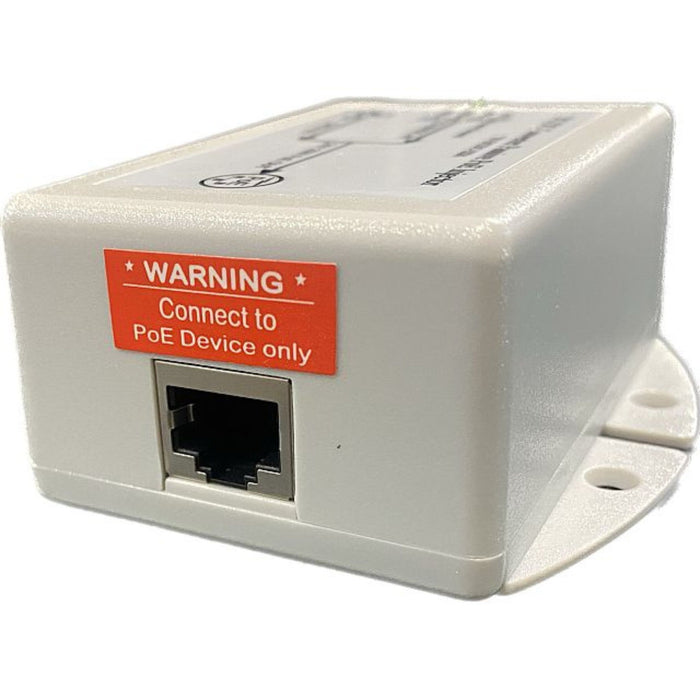

| Data In & Data/PoE Output Connector | RJ45 (Shielded) |
| Output Current (Max) | 0.35 A |
| Output Power (Max) | 16.8 W |
| Self Consumption Power | 1 W |
| Efficiency (Min) | 75% |
| Line Regulation | 1% |
| Load Regulation | 5% |
| Ripple | 1% |
| Noise | 1% |
| EMC Standards | FCC Part 15 Sub B Class A, CE 55032, 55035 |
| Safety Standards | EN/IEC 60950 |
| Operating Temperature | -30 to +60°C (-22 to +140°F) |
| Operating Humidity (RH) | 5% – 90% |
| Storage Temperature | -40 to +80°C (-40 to +176°F) |
| MTBF | 166,000 hours |
| Dimensions (L × W × H) | 85 x 76 x 36 mm (3.4 x 3 x 1.4”) |
| Weight | 134 g (4.7 oz) |
FAQs
Q1: What is the Tycon TP‑DCDC‑1248D PoE Injector and what is it used for?
A: The Tycon TP‑DCDC‑1248D is a DC‑powered PoE injector that takes a wide‑range 9–36 V DC input and provides 48 V IEEE 802.3af compliant PoE output, supplying power and data over Ethernet to compatible network devices.
Q2: What power output does the TP‑DCDC‑1248D provide?
A: This PoE injector delivers 802.3af PoE with up to 17 W of power, making it suitable for powering devices such as wireless access points, VoIP phones, and other IEEE PoE‑compatible equipment.
Q3: What input voltage range does the TP‑DCDC‑1248D accept?
A: The injector operates from a wide DC voltage range of 9–36 V, allowing it to be used with various DC sources including vehicle batteries, solar panels, and lower‑voltage power systems without needing additional converters.
Q4: How is the Tycon TP‑DCDC‑1248D installed and powered?
A: The unit connects directly to a DC power source via sturdy terminals or connectors. It then delivers PoE power and Ethernet data over a single cable to the connected device, simplifying cabling in DC‑powered environments.
Q5: What applications is the TP‑DCDC‑1248D PoE Injector suitable for?
A: It is ideal for industrial and remote network deployments, transportation systems, and situations where AC power is unavailable or impractical, providing reliable DC‑to‑PoE conversion to keep compliant PoE devices powered.
