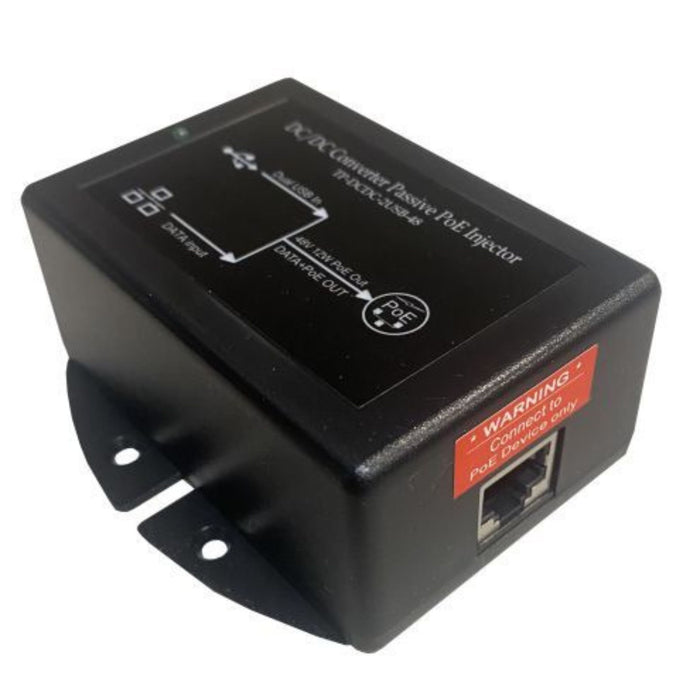

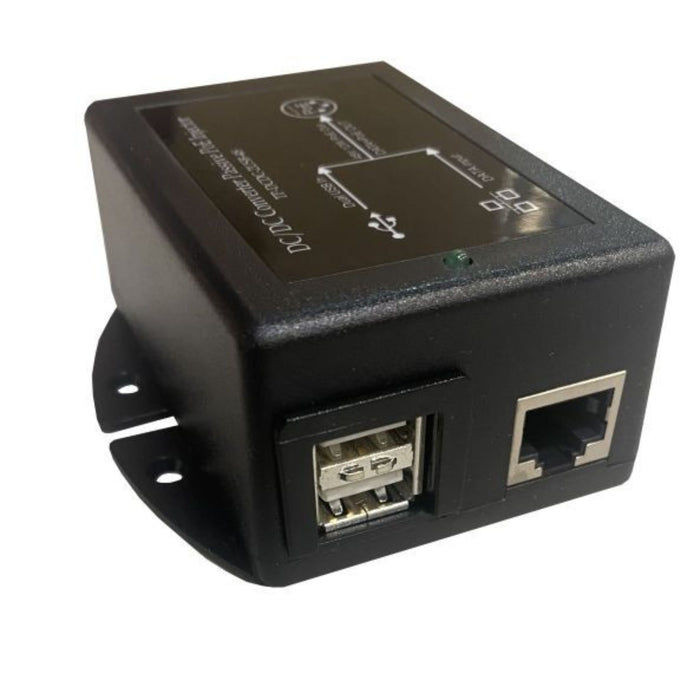

Tycon Systems TP-DCDC-2USB-24

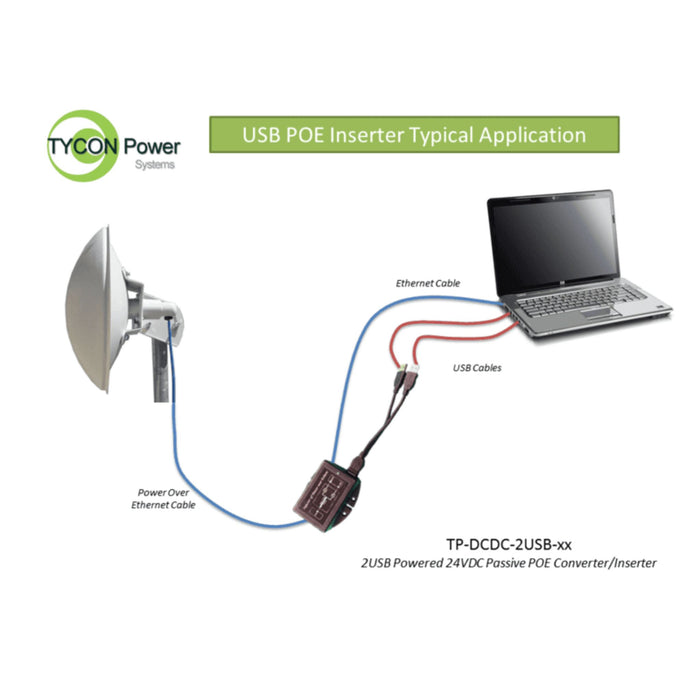

The TP-DCDC-2USB-24 is a unique POE injector from Tycon Systems that uses two USB ports to supply power to remote devices. It has built-in protections and can support distances of up to 100m. With an output power of up to 12W, it is perfect for technicians on the go who need to power devices such as Ubiquiti and Mikrotik from a laptop's USB port. This device also helps reduce wiring clutter and conserve energy by powering external wireless gear from a customer's computer USB ports.
Tech Specs
Click here for the Tycon Power TP-DCDC-2USB-24 datasheet.
| Device Specifications | |
|---|---|
| Electrical Specifications | |
| USB Input | 5 VDC |
| PoE Voltage | 24 VDC @ 0.5 A |
| Output Power | 12 W maximum |
| Efficiency (min) | 72% |
| Line / Load Regulation | 1% / 5% |
| Ripple / Noise | 1% / 5% |

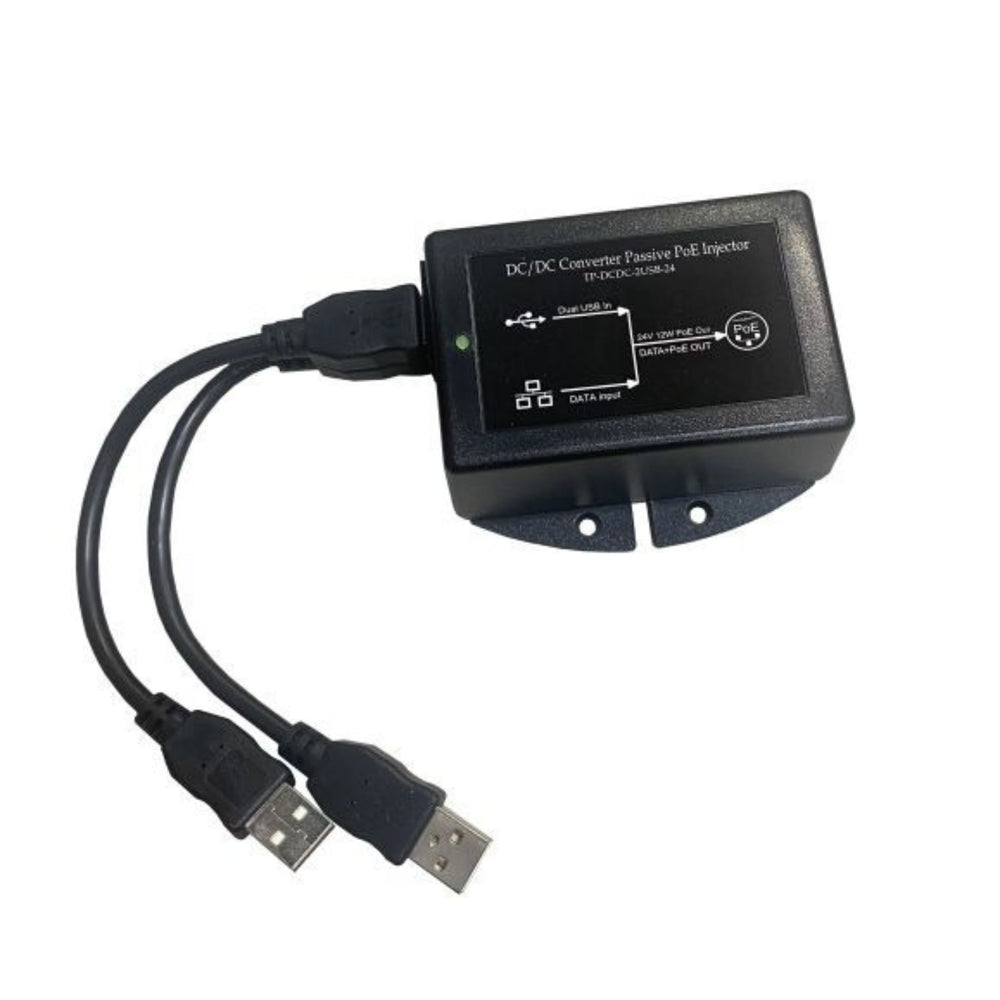

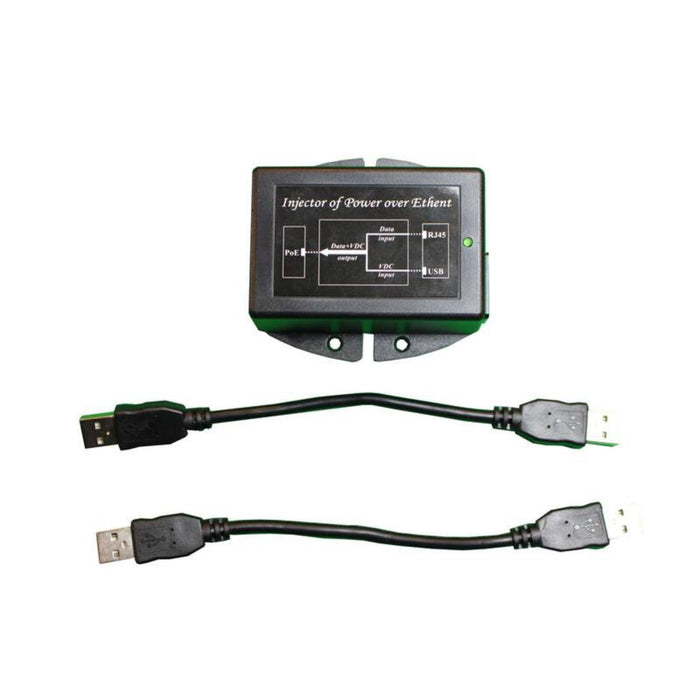

| Cable Lengths | 2 USB: 4” (100 mm) CAT5: 20” (500 mm) |
| PoE Compatibility | Passive PoE Pins 4,5 (+), 7,8 (-) |
| Data Compatibility | 10/100 Mbps |
| Protections | Over-Voltage, Short Circuit, Over-Current |
| Environmental Specifications | |
| Standards | RoHS |
| Operating Temperature | -30 to +50 °C (-22 to +122 °F) |
| Operating Humidity (RH) | 5% - 90% |
| Storage Temperature | -40 to +80 °C (-40 to +176 °F) |
| Physical Specifications | |
| Dimensions (L × W × H) | 85 × 76 × 36 mm (3.4 × 3 × 1.4”) |
| Weight | 134 g (4.7 oz) |
FAQs
Q1: What is the Tycon TP‑DCDC‑2USB‑24 and what is it used for?
A: The Tycon TP‑DCDC‑2USB‑24 is a DC‑to‑USB power converter that accepts a 24 V DC input and provides dual USB outputs, enabling reliable USB power from a DC source in vehicles, industrial control panels, or renewable power systems.
Q2: What input voltage range does the TP‑DCDC‑2USB‑24 support?
A: The converter is designed to operate from a 24 V DC input, allowing it to be easily integrated with 24 V power systems commonly found in PoE networks, industrial equipment, and mobile installations.
Q3: What USB output power does the Tycon TP‑DCDC‑2USB‑24 provide?
A: The TP‑DCDC‑2USB‑24 offers two USB outputs, each supplying standard 5 V USB power suitable for powering or charging devices such as phones, tablets, controllers, sensors, or other USB‑powered electronics.
Q4: How is the Tycon TP‑DCDC‑2USB‑24 installed and powered?
A: The unit connects directly to the 24 V DC power source using screw‑terminal or other robust DC input connections. Its compact design allows mounting in panels or enclosures where USB power is needed from a DC feed.
Q5: What features make the TP‑DCDC‑2USB‑24 suitable for industrial and mobile use?
A: The converter is built with durable components suited for continuous operation, has regulated USB outputs to protect connected devices, and fits standard 24 V power systems found in industrial, automotive, marine, or remote installations.
