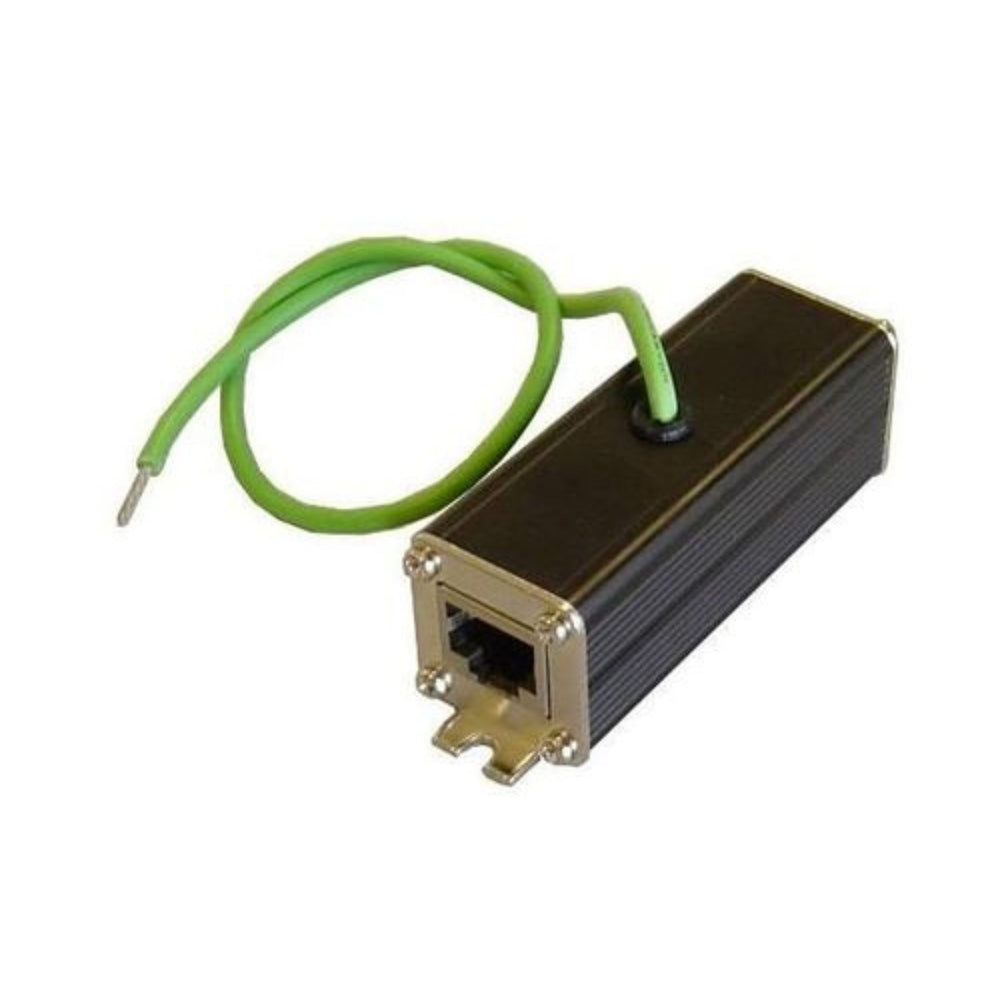

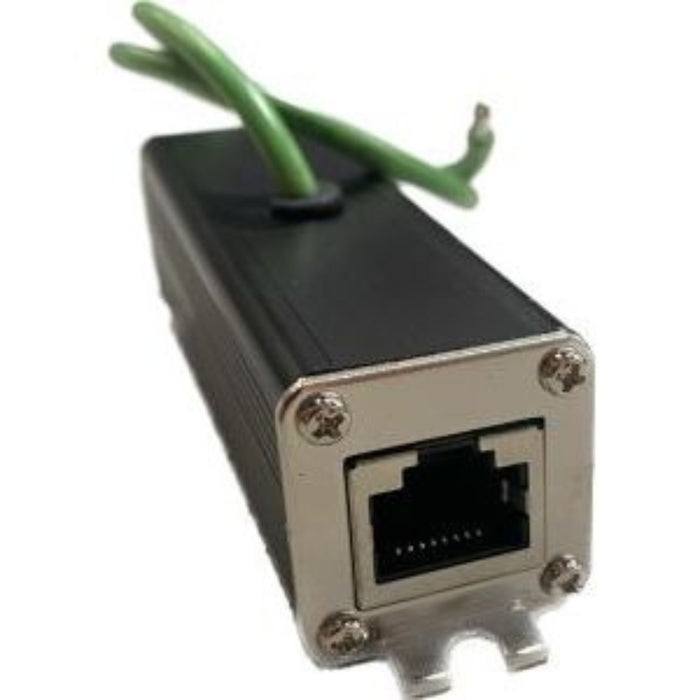

Tycon Systems TP-ESP-1000-POE24
This ethernet surge protector by Tycon Systems protects sensitive equipment from surges and is compatible with PoE systems up to 24V. Can be used both indoors and outdoors with the appropriate enclosure.
Tech Specs
Click here for the Tycon Power ESP-1000-POE24 datasheet.
| Device Specifications | |
|---|---|
| Electrical & Performance Specifications | |
| Operating Voltage | Data: 5 V PoE: 24 V |
| Clamping Voltage | 40 V PoE (All 8 Pins) |
| Max Surge Discharge Current | 5 kA (8/20 µs) |
| Peak Pulse Current | 100 A (10/1000 µs) |
| Protection Mode | Differential & Common Mode |
| Insulation Resistance | >1000 MΩ |
| Shunt Capacitance | <50 pF |
| Data Rate | 10/100/1000 Mbps |
| Response Time | <5 ns |
| Environmental Specifications | |
| Operating Temperature | -40 to +85 °C |
| Storage Temperature | -40 to +125 °C |
| Operating Humidity | 0% to 95% non-condensing |
| Physical Specifications | |
| Size (L × W × H) | 4 × 1 × 1 in (102 × 25 × 25 mm) |
| Weight | 3.1 oz (88 g) |
| Ground Wire | 14 AWG, 10 in (26 cm) long |
| Connectors | RJ45 Shielded Jacks |
| Standards & Reliability | |
| IEC Standards | 61000-4-5, 61643-21 |
| UL Standard | N/A |
| Shock & Vibration | MIL-STD-810G Method 514.7c Category 4 (2014) Method 516.7-IV Note 3 (2014) |
| IEEE / ANSI Standard | C62.45 |
| MTBF | 819,049 Hours |
| Warranty | 3 Years |
FAQs
Q1: What is the Tycon TP‑ESP‑1000‑POE24 and what is it used for?
A: The Tycon TP‑ESP‑1000‑POE24 is a high‑performance surge protector designed to safeguard Ethernet lines and 24 V PoE‑powered devices from transient voltage spikes and electrical surges, helping protect networked equipment in industrial, commercial, and outdoor environments.
Q2: How does the Tycon TP‑ESP‑1000‑POE24 protect network and PoE devices?
A: This device routes data traffic normally while diverting excessive surge energy away from sensitive network interfaces and 24 V PoE power feeds, reducing the risk of equipment damage due to lighting strikes, power anomalies, or other surge events.
Q3: What power and data lines are protected by the TP‑ESP‑1000‑POE24?
A: The surge protector is designed to handle both Ethernet data pairs and 24 V PoE power lines, allowing it to protect PoE‑powered networking devices such as access points, cameras, and industrial IoT equipment.
Q4: How is the TP‑ESP‑1000‑POE24 installed in a network?
A: It is installed inline on the Ethernet cable, typically near the equipment being protected or at a network entry point, inserting surge protection directly into the link without disrupting normal network operation.
Q5: What physical and environmental features make the TP‑ESP‑1000‑POE24 suitable for field deployment?
A: The unit is built with rugged housing, compatible with outdoor enclosures and mounting options, and designed to withstand the environmental stresses commonly encountered in outdoor and industrial network installations.
