Ubiquiti airFiber 60Ghz Long-Range
Please contact us for stocking information.
The AF60-LR by Ubiquiti is a long-range, high-throughput airFiber 60GHz radio system that utilises Wave Technology and True Duplex Gigabit Performance. This Point-to-Point link consists of 2 radios and is ideal for extended ranges up to 12km. With an integrated high-gain dish antenna and a dedicated Bluetooth setup radio, the AF60-LR offers impressive performance for fast, reliable connectivity.
Tech Specs
Click here for the Ubiquiti airFiber 60Ghz Long-Range datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | Ø413 x 360 mm (Ø16.3 x 14.2") |
| Weight | Without mount: 1.5 kg (3.3 lb) With mount: 2.7 kg (6 lb) |
| Enclosure Material | Aluminum, UV stabilized polycarbonate |
| Mount Material | Galvanized steel |
| Mounting | Precision alignment kit (included) Pole compatibility: Ø25.4 to 76.2 mm (Ø1 to 3") |
| Wind Loading | 420 N at 200 km/h (94.4 lbf at 125 mph) |
| Hardware | |
| Processor | Quad-Core ARM® Cortex® A7 |
| Memory | 256 MB DDR3 |
| Networking Interface | (1) GbE RJ45 port |
| Max. Power Consumption | 22W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power Supply | 48V DC, 0.65A gigabit PoE adapter (Included) |
| Supported Voltage Range | 44–54V DC 22–27V DC |
| GPS | Yes |
| RF Connections | Internal |
| ESD/EMP Protection | Air/contact: ± 24kV |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Software | |
| Operating Mode | PtP only |
| Ubiquiti Specific Features | Wave technology, discovery utility |
| Network | Bridge mode |
| Services | UISP, ping watchdog, NTP client |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Software Management | Bluetooth management for easy setup over UISP app |
| WEB UI | Any modern web browser/iOS™ or Android™ based smartphone |
| System | |
| Max. Throughput | 1.95 Gbps |
| Max. Range | 12+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating Frequency* | 57–71 GHz * Depends on regulatory region. |
| Channel Bandwidth | 2160, 1080 MHz |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 1.6° Elevation: 3 dB 1.6° |

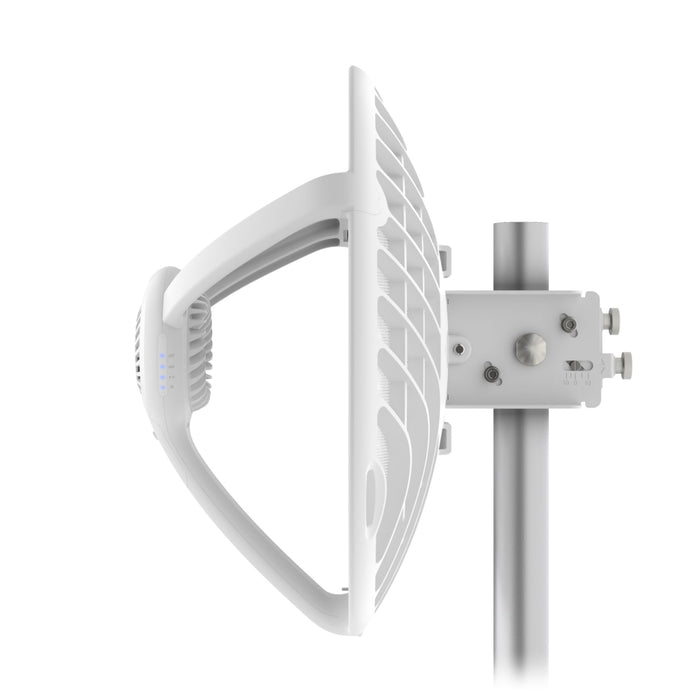

| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application |
| Ethernet | Flashing blue: Ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| 60G | Blue: active connection |
FAQs
Q1: What is the Ubiquiti AF60-LR used for?
A1: The AF60-LR (airFiber 60 Long-Range) is a 60 GHz point-to-point (PtP) radio system designed for high-capacity wireless links over long distances, suitable for backhaul and enterprise connectivity.
Q2: What throughput and range can the AF60-LR achieve?
A2: It supports up to 1.9 Gbps aggregate throughput and can reach distances exceeding 12 km under ideal line-of-sight conditions.
Q3: What hardware features does the AF60-LR include?
A3: Key hardware features include a Quad-Core ARM Cortex-A7 CPU, 256 MB DDR3 memory, one Gigabit Ethernet RJ45 port, and a built-in Bluetooth management radio.
Q4: What power consumption and physical specs does the AF60-LR have?
A4: It has a maximum power draw around 22 W. Physically, it measures approximately Ø413 × 360 mm, with robust aluminum and UV-stabilized construction and weighs ~1.5 kg (without mount).
Q5: What technologies are supported by the AF60-LR for stability and backup?
A5: The AF60-LR utilizes Ubiquiti’s Wave Technology for efficient 60 GHz operation. It also supports a backup 5 GHz radio to maintain connectivity in case of 60 GHz link disturbances.
