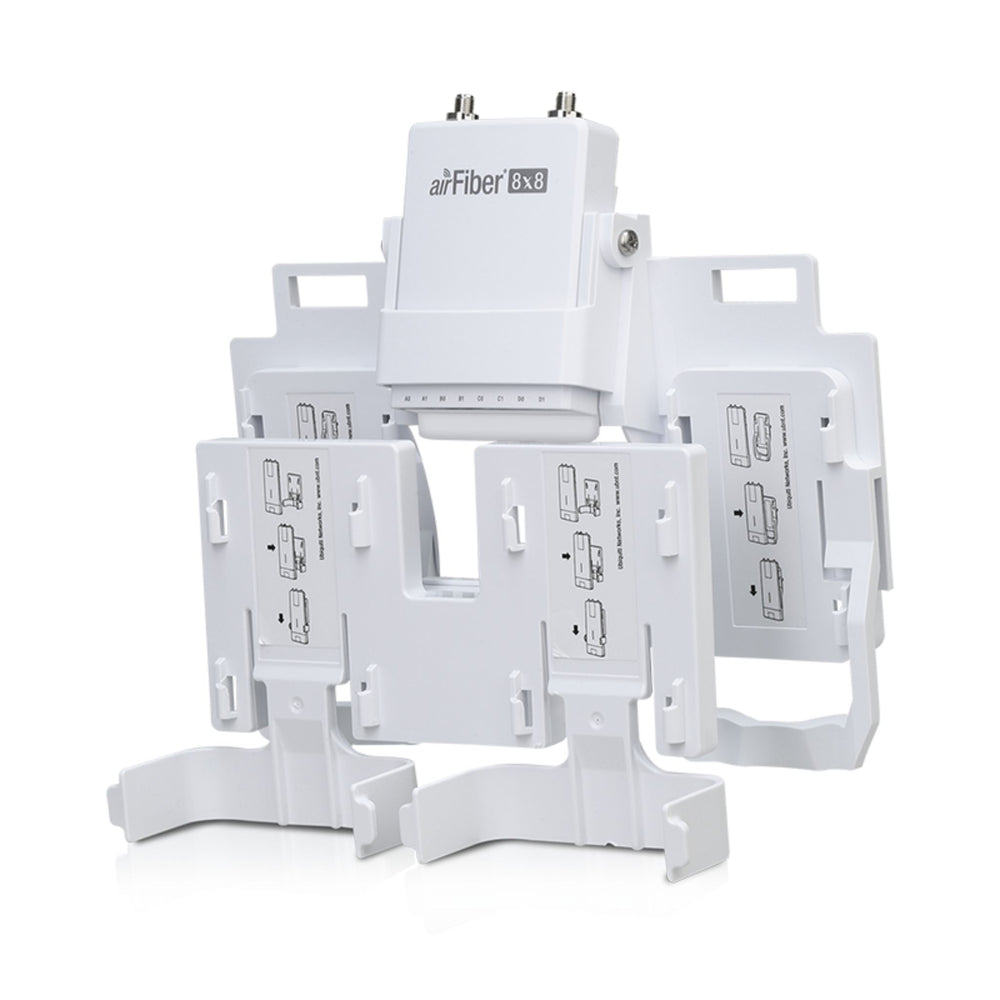

Ubiquiti airFiber 8x8 MIMO Multiplexer
Utilising precise GPS Synchronisation technology, the airFiber MPx8 enables the mounting of up to four airFiber X radios onto a single airFiber dish antenna, achieving a maximum throughput of 2+ Gbps with 8x8 MIMO. This cost-effective solution allows for broadcasting on multiple channels, including adjacent channels without a guard band, and is compatible with most 5 GHz airFiber X and RocketDish antenna models. For other antenna configurations, simply mount the airFiber MPx8 on a pole. The MPx4 model can support the mounting of two airFiber X radios.
Tech Specs
Click here for the Ubiquiti airFiber 8x8 MIMO Multiplexer datasheet.
| Device Specifications | |
|---|---|
| Dimensions | 210.5 x 240.9 x 109 mm (8.3 x 9.5 x 4.3") |
| Weight | 450 g (1 lb) |
| RF connectors | (2) RP-SMA weatherproof (CH0, CH1) (8) RP-SMA weatherproof (A0, A1, B0, B1, C0, C1, D0, D1) |
| Cable loss | 4.7 GHz: 7.9 dB 5 GHz: 7.2 dB |
| Multiplex MIMO | (4) 2 x 2 |
| Mounting | airFiber X/Rocket mount compatible |
| NDAA Compliant | Yes |
FAQs
Q: What is the Ubiquiti AF-MPx8 used for?
A: The AF-MPx8 is an 8x8 MIMO upgrade kit designed to increase the throughput and performance of compatible Ubiquiti airFiber radios in point-to-point links.
Q: Which airFiber devices are compatible with the AF-MPx8?
A: It is typically used with airFiber 5XHD and similar models that support multi-chain MIMO configurations, enabling enhanced link capacity.
Q: How does the AF-MPx8 improve wireless performance?
A: By providing an 8x8 MIMO configuration, it increases data throughput, improves signal reliability, and enhances spectral efficiency over long-distance links.
Q: Is the Ubiquiti AF-MPx8 suitable for outdoor installations?
A: Yes, it is built for outdoor use and integrates with airFiber radios and compatible antennas for long-range, high-capacity wireless deployments.
Q: Does installing the AF-MPx8 require special tools or configuration?
A: Installation involves connecting additional RF cables and may require alignment and configuration adjustments within the radio interface, but no specialised tools are typically needed.
