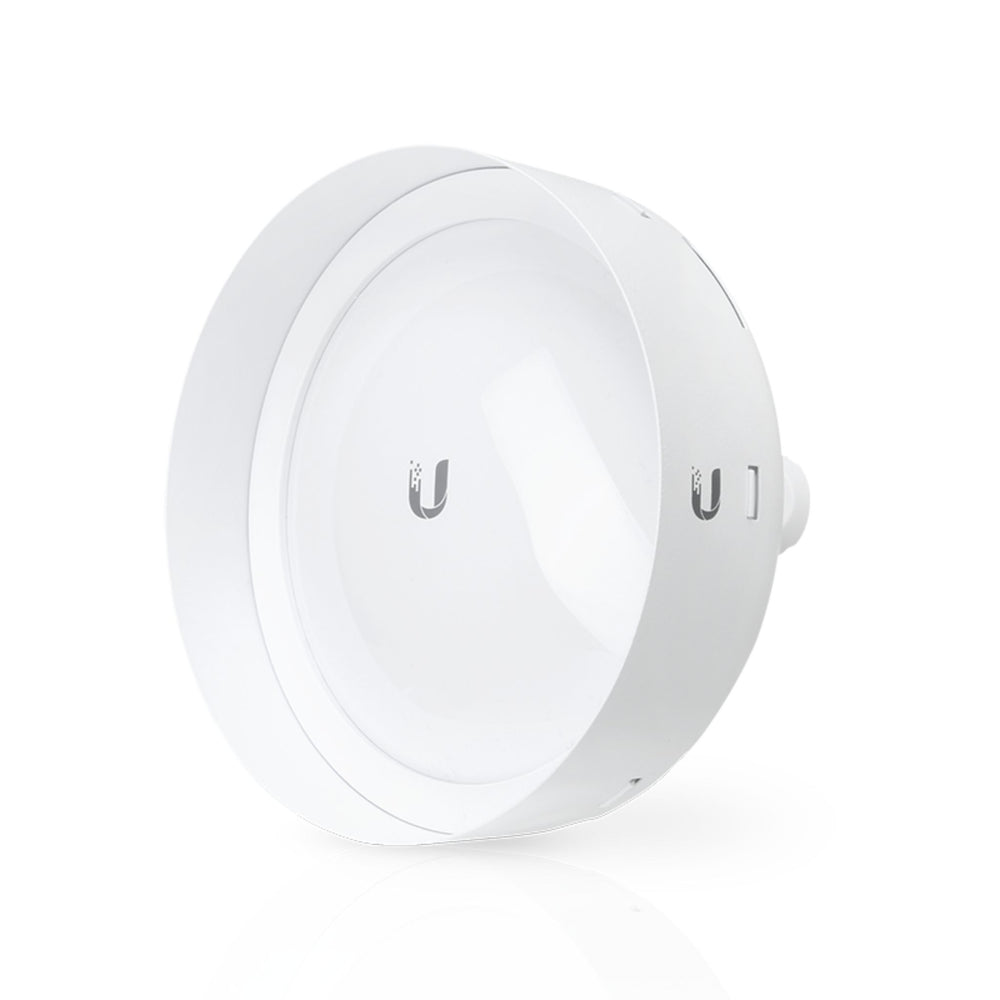

Ubiquiti airMAX IsoBeam 16
The ISO-BEAM-16 is an Isolation Shield designed to work with Ubiquiti NanoBeams such as the NBE-M5-16 and NBE-5AC-16 models.
Tech Specs
| Device Specifications | |
|---|---|
| Dimensions | Ø148 x 56.5 mm (Ø5.8 x 2.2") |
| Weight | 150 g (5.3 oz) |
| Compatibility | NBE-M5-16 NBE-5AC-16 |
| NDAA Compliant | Yes |
FAQs
Q1: What is the ISO-BEAM-16 and what is it used for?
A: The ISO-BEAM-16 is an RF isolation shield (radome/cover) designed for use with certain Ubiquiti NanoBeam 16 dBi antennas. It helps shield against unwanted interference and improves signal isolation for wireless links.
Q2: Which devices are compatible with the ISO-BEAM-16?
A: It is compatible with Ubiquiti models NBE-M5-16 and NBE-5AC-16.
Q3: What are the physical and mechanical specifications of the ISO-BEAM-16?
A: The shield has a diameter of 148 mm and a depth of 56.5 mm (∅ 148 × 56.5 mm), and weighs approximately 150 g.
Q4: What benefits does using the ISO-BEAM-16 provide?
A: It reduces side- and rear-lobes and unwanted RF interference, which helps improve signal clarity and stability for point-to-point or directional wireless links — especially in environments with co-located antennas or RF noise.
Q5: Is installation of the ISO-BEAM-16 complicated?
A: No — it is designed for easy mounting. Installation does not require specialised tools and involves simply fitting the shield around the NanoBeam-16 unit.
