The Ubiquiti UISP Power is a comprehensive uninterruptible power system specifically designed for MicroPoP applications. Key features include a total power supply of 200W (27V DC) and redundant power supply of 100W (with 2 PSUs sold separately). Additionally, a 115Wh Li-ion backup battery, (1) Power TransPort output, and (1) DC battery port for external 24V lead-acid battery (not included) are also included. The system can be easily wall-mounted (kit included) and is compatible with UISP Console, UISP Router (installed with UISP Box), UISP Router Pro, UISP Switch (installed with UISP Box), and UISP Switch Pro.
Tech Specs
Click here for the Ubiquiti UISP Power datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 289 x 280 x 52 mm (11.38 x 11.02 x 2.05") |
| Weight | 1.4 kg (3.1 lb) |
| Enclosure materials | Polycarbonate, acrylonitrile butadiene styrene |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 LAN port |
| Management interface | Ethernet In-band Bluetooth |
| Power TransPort output | 27V DC, 100W (with 1 power adapter) 27V DC, 200W (with 2 power adapters) |
| Power method | (2) 27V DC, 4.4A power adapters (120W Power TransPort Adapter not included) |

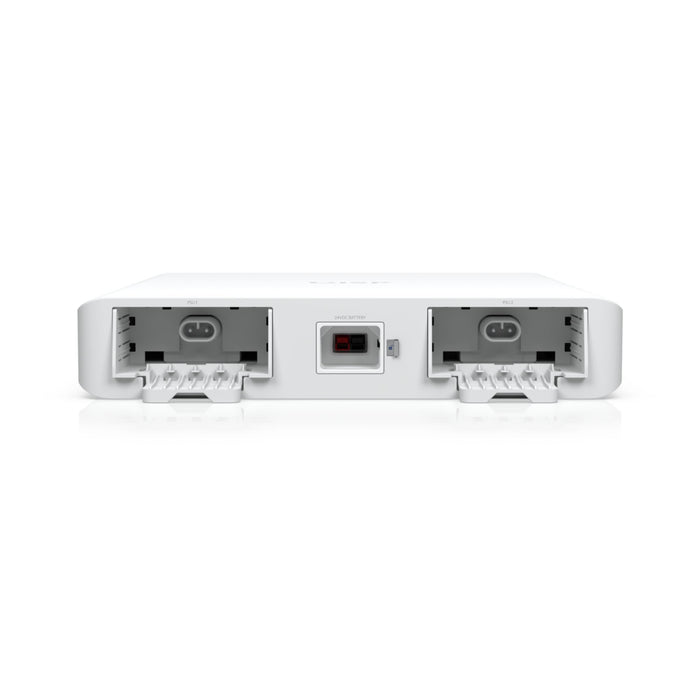

| Backup power | (1) 25.2V DC, 7.93A rechargeable Li-ion battery pack (included) (1) 24V DC, 8.33A lead acid battery input* (battery not included) *Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| Max. power consumption | 3W (excludes Power TransPort output and battery charger) |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| LEDs | |
| System | Status |
| RJ45 data port | Link/activity |
| Power TransPort | On/Off |
| Compatibility | |
| Supported models | UISP Console UISP Router (installed with UISP Box) UISP Router Pro UISP Switch (installed with UISP Box) UISP Switch Pro |
FAQs
Q: What is the Ubiquiti UISP-P used for?
A: The UISP-P is an outdoor-rated power supply designed to deliver 24V Passive PoE to UISP devices, ensuring reliable power and connectivity in network deployments.
Q: Which devices are compatible with the UISP-P?
A: The UISP-P is compatible with UISP routers, switches, and CPE devices that require 24V Passive PoE power input.
Q: Is the UISP-P suitable for outdoor installations?
A: Yes, it features a weather-resistant enclosure designed to withstand harsh environments, making it ideal for outdoor and remote installations.
Q: What power output does the UISP-P provide?
A: The UISP-P delivers 24V Passive PoE output, providing consistent power delivery for Ubiquiti network devices and wireless links.
Q: Can the UISP-P be used in ISP and enterprise networks?
A: Yes, its durable build and stable PoE power make it suitable for ISP towers, wireless bridges, and enterprise outdoor networking setups.
