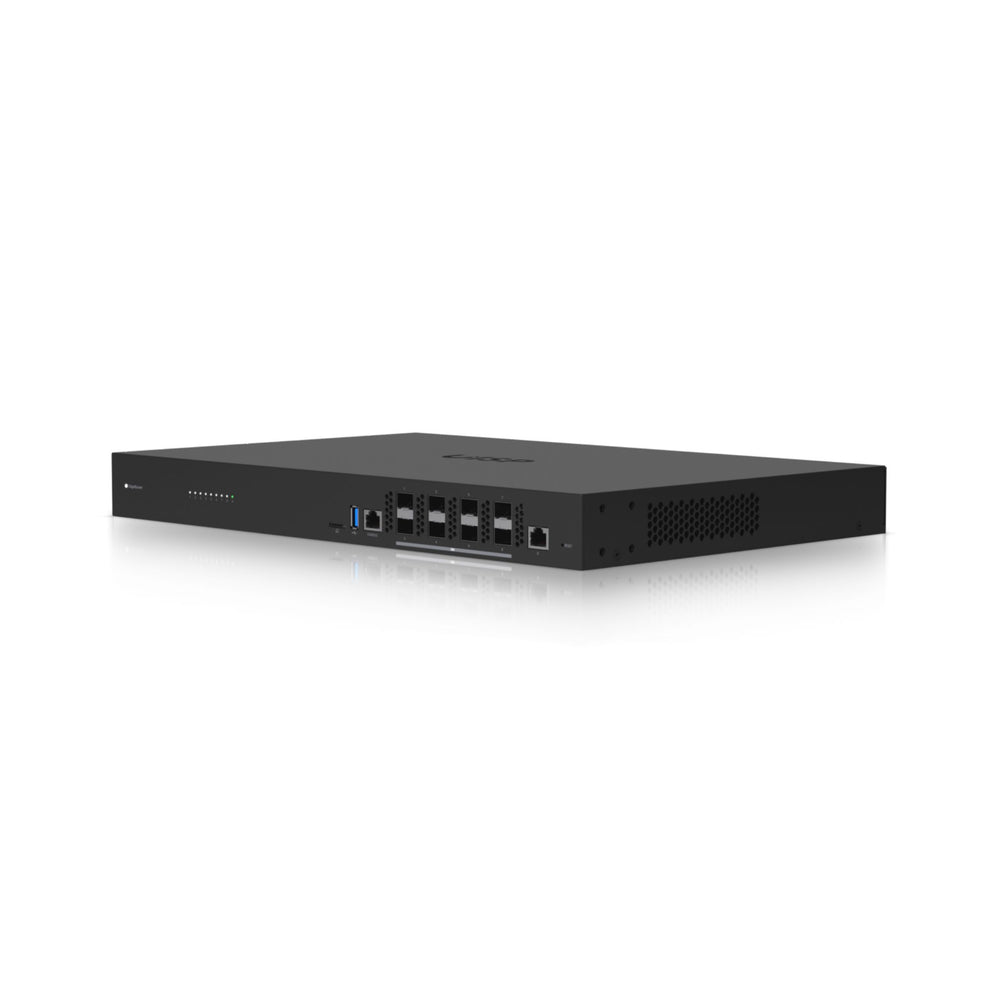

Ubiquiti EdgeRouter Infinity
The Ubiquiti EdgeRouter Infinity boasts 10G routing capabilities and exceptional price-to-performance value, all in a compact and rack-mountable design. Powered by a robust 16-core, 1.8 GHz processor and 16 GB of DDR4 RAM, this router also offers eight 1G/10G SFP/SFP+ dual mode ports and a Gigabit Ethernet RJ45 port for routing. Additionally, the SFP ports are divided into two groups of four, with each group capable of adjusting its speed to either 1G or 10G.
Tech Specs
Click here for the Ubiquiti EdgeRouter Infinity datasheet.
| Device Specifications | |
|---|---|
| General | |
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight | 5 kg (10.9 lb) |
| Enclosure Material | SGCC steel |
| Hardware | |
| System Memory | 16 GB DDR4 RAM |
| On-board Flash Storage | 8 MB NOR 4 GB eMMC NAND |
| Management Interface | (1) RJ45 CLI management port |
| Networking Interface | (1) GbE RJ45 port (8) 10G SFP+ ports |
| Total Non-blocking Throughput | 80 Gbps |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 18 Mpps |

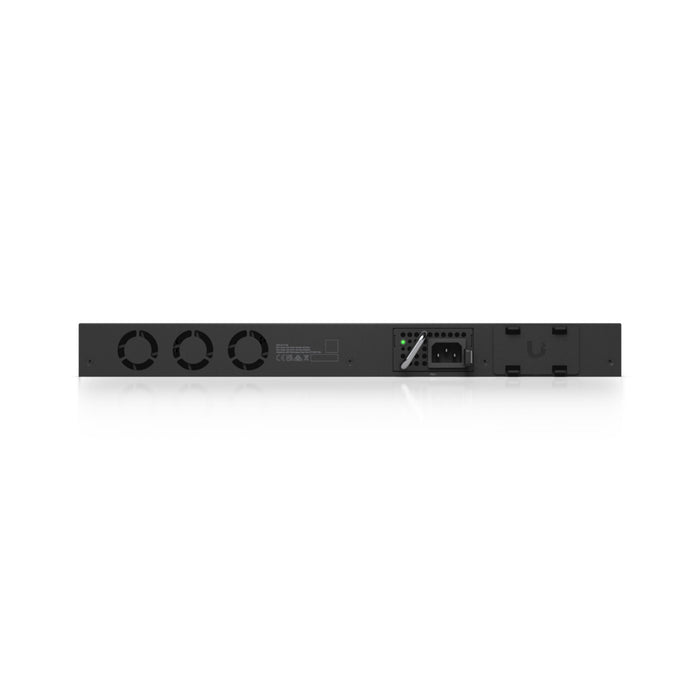

| Power Method | (2) Hot-swappable AC/DC (Included) or DC/DC (Not included) PSU, 100W |
| Supported Voltage Range | AC/DC: 100–240V AC, 24V DC output DC/DC: 38–54V DC, 24V DC output |
| Max. Power Consumption | 100W |
| ESD/EMP Protection | Air/contact: ± 24kV |
| LEDs | System: status Ethernet ports: link/activity SFP+ ports: link/activity |
| Button | Factory reset |
| Mounting | Yes, 1U |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
Q1: What is the ER‑8‑XG used for?
A: The ER‑8‑XG is a high‑performance rack‑mount router designed for enterprise, ISP or data‑centre networks — ideal when you need multiple 10 Gbps fibre links, high routing throughput, and robust, scalable performance.
Q2: What ports and connectivity interfaces does ER‑8‑XG provide?
A: It provides 8 × 10 Gbps SFP+ fibre‑capable ports, 1 × Gigabit RJ45 Ethernet port for copper connection, and a serial console RJ45 port for management.
Q3: What performance and routing capacity does ER‑8‑XG deliver?
A: The router delivers up to 80 Gbps non‑blocking throughput and can forward up to 18 million packets per second (pps). It’s powered by a 16‑core 1.8 GHz CPU and 16 GB DDR4 RAM, with hardware acceleration for packet processing.
Q4: What are the power, chassis, and build specifications?
A: The ER‑8‑XG is built in a 1U rack‑mountable SGCC‑steel chassis, measures 442.4 × 285.6 × 43.7 mm, and weighs approx. 5.0 kg. It uses dual hot‑swappable AC/DC power supplies (100–240 V AC) with a max power draw of about 100 W — providing redundancy for reliability.
Q5: What routing features and protocols does ER‑8‑XG support?
A: The router supports standard routing, VLANs, static/dynamic routing (OSPF, BGP, RIP, etc.), IPv4/IPv6, firewall/NAT, QoS, VPNs, and advanced network services — making it suitable for complex network architecture, multi‑site routing, and high‑traffic backbone links.
