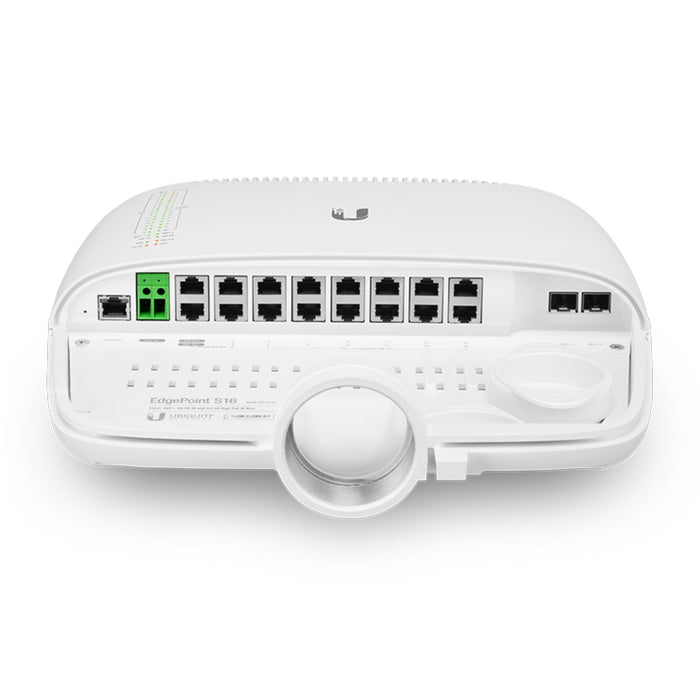

Ubiquiti EdgePoint S16
Please contact us for stocking information.
The Ubiquiti EdgePoint S16 is a powerful 16-port PoE switch equipped with advanced layer-2 and layer-3 capabilities. It supports both 54VDC and PoE, allowing for 54 or 24V passive PoE to power all Ubiquiti products, including the airFiber and AirMax ranges. The user-friendly graphical interface enables easy configuration of features such as DHP, IGMP snooping, link aggregation, and static/policy-based routing. Additionally, two SFP+ ports allow for uplinks of up to 1/10 Gbps. Please note, installation requires an S2 Hex Wrench (not included).
Tech Specs
Click here for the Ubiquiti EdgePoint S16 datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | Without wall-mount: 326.6 x 382.7 x 88.8 mm (12.9 x 15.1 x 3.5") With wall-mount: 326.6 x 382.7 x 105.5 mm (12.9 x 15.1 x 4.2") |
| Weight | Without wall-mount: 3.4 kg (7.5 lb) With wall-mount: 3.8 kg (8.4 lb) |
| Enclosure material | Diecast aluminum alloy, UV-resistant polycarbonate |
| Mount | Pole/wall mount |
| Wind loading | 153 N at 200 km/h (34 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) RJ45 serial port (16) 10/100/1000 RJ45 ports (2) 1/10 Gbps SFP+ ports |
| Power method* | (1) DC terminal block, 54V DC, 6A input *Self-correcting polarity protection on DC terminal block only, diode red protection on all power inputs. |
| Power supply | Min. 54V / 0.8A (Excludes PoE output) |
| Passive PoE input* | (2) 54V / 1.5A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 and 2 *Do NOT configure port 1 or 2 in PoE output mode if you are using PoE input power sources. |
| Passive PoE output | (4) 54V or 24V /1.4A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 to 4 (12) PoE/PoE+ or 24V/0.7A, 2-pair (+ 4, 5; - 7, 8) passive PoE, ports 5 to 16 |
| Power monitoring | (1) DC terminal block, input power (2) RJ45, ports 1 and 2, PoE input or output power (14) RJ45, ports 3 to 16, PoE output power |
| Supported voltage range | 42–56V DC (-48V is NOT supported) |
| Max. power consumption | 40W (Excludes PoE output) |
| Button | Factory reset |
| LEDs | |
| System | Power |
| RJ45 ports | Speed/link/activity, PoE |
| SFP ports | Speed/link/activity |
| Environmental | |
| Ambient operating temperature | -40 to 65° C (-40 to 149° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
Q: What is the Ubiquiti EP-S16 used for?
A: The EP-S16 is a 16-port Gigabit Passive PoE switch designed to power and connect multiple UISP devices in enterprise, campus, and ISP networks.
Q: How many ports does the EP-S16 support and what type of PoE?
A: It features 16 Gigabit Ethernet ports that provide 24V Passive PoE, allowing connected devices to receive power and data over a single cable.
Q: Can the EP-S16 be managed through UISP software?
A: Yes, it integrates with UISP management software for centralized monitoring, configuration, and performance analytics.
Q: Is the EP-S16 suitable for outdoor installations?
A: While primarily designed for indoor deployment, it can power outdoor UISP devices via Ethernet cabling with weatherproofed devices in the field.
Q: Can the EP-S16 handle high-capacity networks?
A: Yes, its 16-port design and Gigabit performance allow it to manage multiple high-speed connections efficiently, making it suitable for enterprise and ISP deployments.
