Ubiquiti UISP Switch
Please contact us for stocking information.

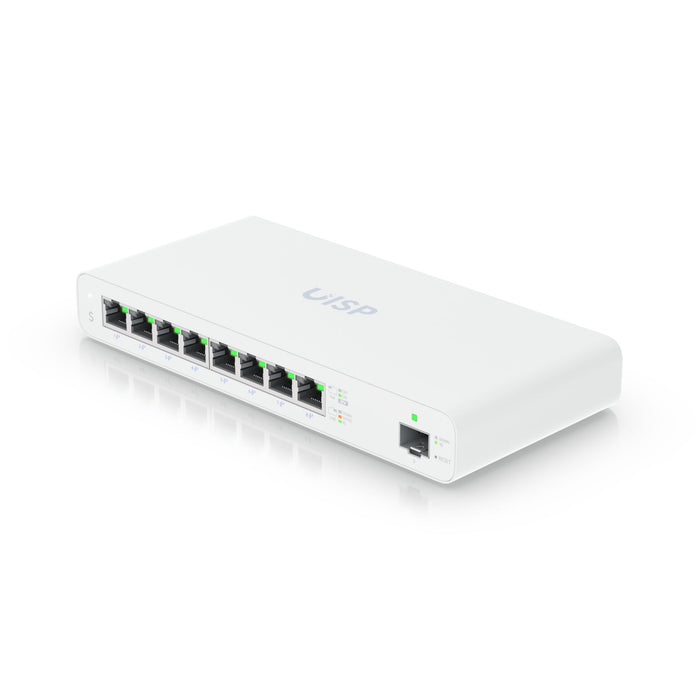

The UISP Switch is a reliable, fanless, Layer 2 switch with (8) GbE RJ45 ports and (1) 1G SFP port for an extra fibre uplink choice. This switch is an affordable solution for WISPs seeking to efficiently provide Gigabit wireless speeds to their clients. Additionally, the UISP Switch supplies a strong 110W total PoE capacity, making it the perfect choice for powering all radios in your service network. For larger deployments, consider pairing it with the UISP Console to create a comprehensive routing and switching hub. Manage this switch and other UISP devices through the centralized UISP application, allowing for seamless monitoring and maintenance.
Tech Specs
Click here for the Ubiquiti UISP Switch datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1") |
| Weight | 610 g (1.3 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Total non-blocking throughput | 9 Gbps |
| Switching capacity | 18 Gbps |
| Forwarding rate | 13.392 Mpps |
| Networking interface | (8) GbE RJ45 ports (1) 1G SFP port |
| Management interface | Ethernet In-band Bluetooth BLE |
| Power method | External AC/DC adapter |
| Power supply | 27V DC, 4.4A power adapter (included) |
| Supported voltage range | 24—28V DC |
| Max. power consumption | 8W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| PoE | |
| PoE interface | (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Total available PoE | 110W |
| Max. passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27V DC |
| LEDs | |
| RJ45 data ports | PoE Speed/link/activity |
| SFP data ports | Link/activity |
| Software | |
| Management application | UISP: Version 1.4.0 and later |
| NDAA Compliant | Yes |
FAQs
Q: What is the Ubiquiti UISP-S used for?
A: The UISP-S is an outdoor network switch designed for delivering PoE-powered connectivity to UISP devices while providing seamless network integration.
Q: Does the UISP-S support PoE devices?
A: Yes, it supports multiple PoE devices, allowing administrators to power and manage connected equipment efficiently through a single switch.
Q: Can the UISP-S be managed through UISP software?
A: Yes, it integrates fully with UISP management software, enabling centralized monitoring, configuration, and network analytics.
Q: Is the UISP-S suitable for outdoor installations?
A: Yes, it features a weather-resistant enclosure, making it ideal for outdoor environments and harsh weather conditions.
Q: How is the UISP-S powered and connected?
A: The switch uses standard PoE or Passive PoE for powering connected devices, simplifying installation and reducing the need for additional cabling.
