Ubiquiti UISP airMAX NanoBeam 5AC
UISP airMAX NanoBeam 5AC – Compact 5 GHz Wireless Bridge with Long-Range Connectivity
The UISP airMAX NanoBeam 5AC is a compact, UISP-ready 5 GHz WiFi bridge designed for high-performance, point-to-point or point-to-multipoint wireless links. With a range of over 10 km and throughput of up to 450+ Mbps, it delivers reliable connectivity for remote locations, network backhaul, and building-to-building links.
Engineered for simple deployment, the NanoBeam 5AC features easy mounting options and includes both a dedicated spectral analysis radio for precise channel selection and a dedicated WiFi management radio for configuration and monitoring. Enhanced surge protection provides greater resilience in challenging outdoor environments.
With its integrated radio and optimised antenna design, the NanoBeam 5AC offers strong performance, minimal interference, and a streamlined form factor ideal for rural broadband, surveillance networks, and industrial connectivity projects.
Tech Specs
Click here for the Ubiquiti airMAX NanoBeam 5AC datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 189 x 189 x 125 mm |
| Weight | 530 g (1.17 lb) |
| Enclosure Material | UV-stabilised plastic |

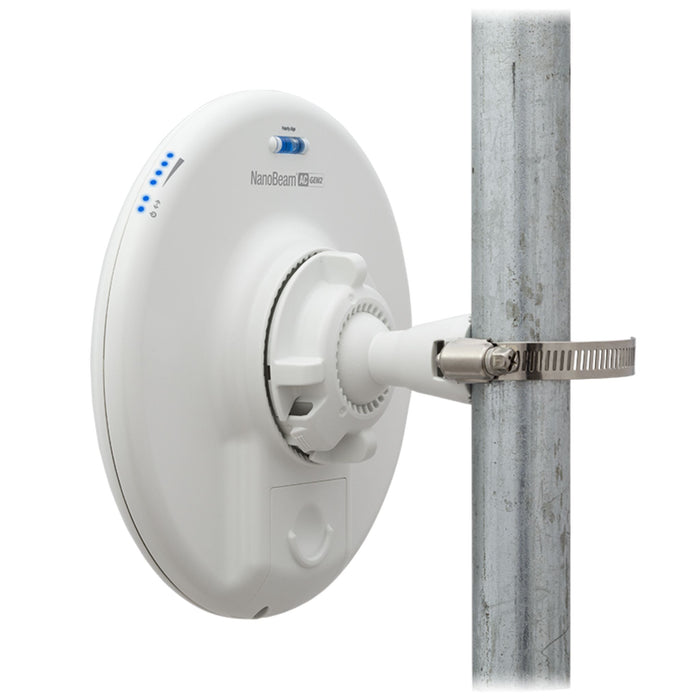

| Mounting | Pole mount kit (Included) Wall mount (Not included) |
| Wind Loading | 45.4 N at 200 km/h (10.2 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |

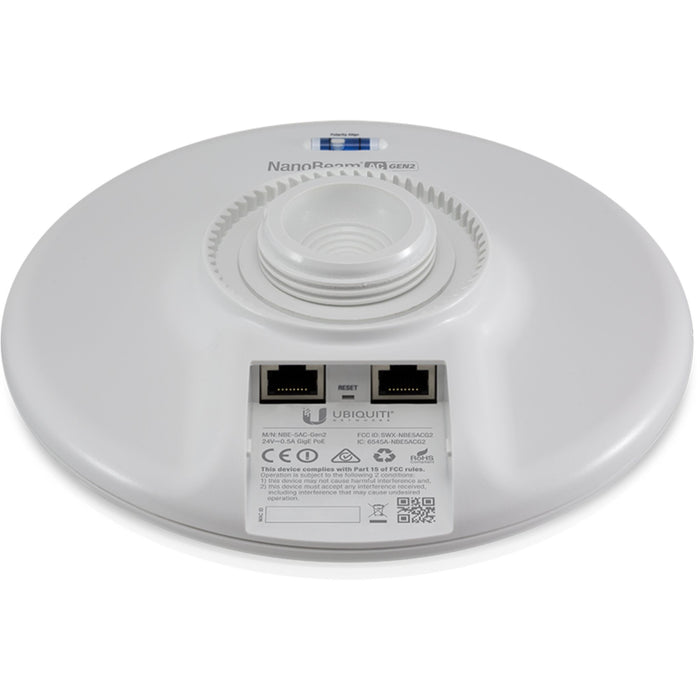

| Networking Interface | (2) GbE RJ45 ports |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 8.5W |
| ESD/EMP Protection | Air/contact: ± 24kV |

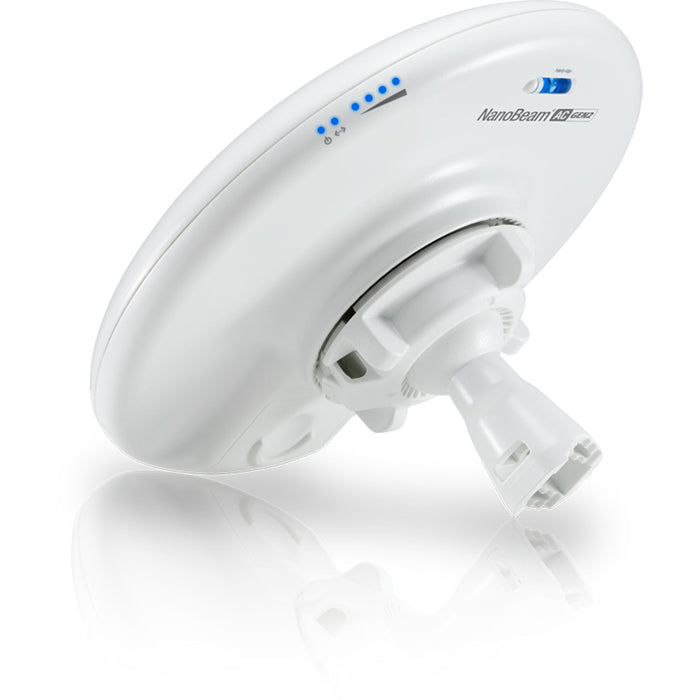

| LEDs | Power, Ethernet, (4) Signal strength |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176 F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| System | |
| Gain | 19 dBi |
| Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtPM Mode: 10/20/30/40 MHz |
| Max. VSWR | 1.5:1 |
| Polarization | Dual linear |
| Operating Frequency (MHz) | Worldwide: 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz U-NII-2A: 5250-5350 MHz U-NII-2C: 5240-5725 MHz U-NII-3: 5725-5850 MHz |
FAQs
Q: What is the Ubiquiti NBE‑5AC‑GEN2 and what is it used for?
A: The NBE‑5AC‑GEN2 is a compact, high-gain 5 GHz wireless access point designed for point-to-point (PtP) and point-to-multipoint (PtMP) links, ideal for connecting distant buildings or networks with minimal cabling.
Q: What are the wireless performance specs of the NBE‑5AC‑GEN2?
A: It operates in the 5 GHz band with airMAX AC technology, supports 2×2 MIMO, and has a 22 dBi integrated directional antenna, delivering stable long-range links at speeds up to 450+ Mbps real throughput.
Q: How is the NBE‑5AC‑GEN2 powered and connected?
A: The device uses a single Gigabit Ethernet port with passive PoE (24 V) for both power and data, simplifying outdoor deployments and reducing cable requirements.
Q: What are the ideal deployment scenarios for this NanoBeam?
A: It is optimized for long-distance PtP links up to several kilometers and for bridging networks between remote buildings, campuses, or rural areas requiring reliable high-throughput wireless connectivity.
Q: Does the NBE‑5AC‑GEN2 support airMAX management and configuration?
A: Yes, it can be configured and monitored via Ubiquiti’s airOS interface, offering advanced network features, traffic shaping, QoS, and interference mitigation for professional wireless deployments.
