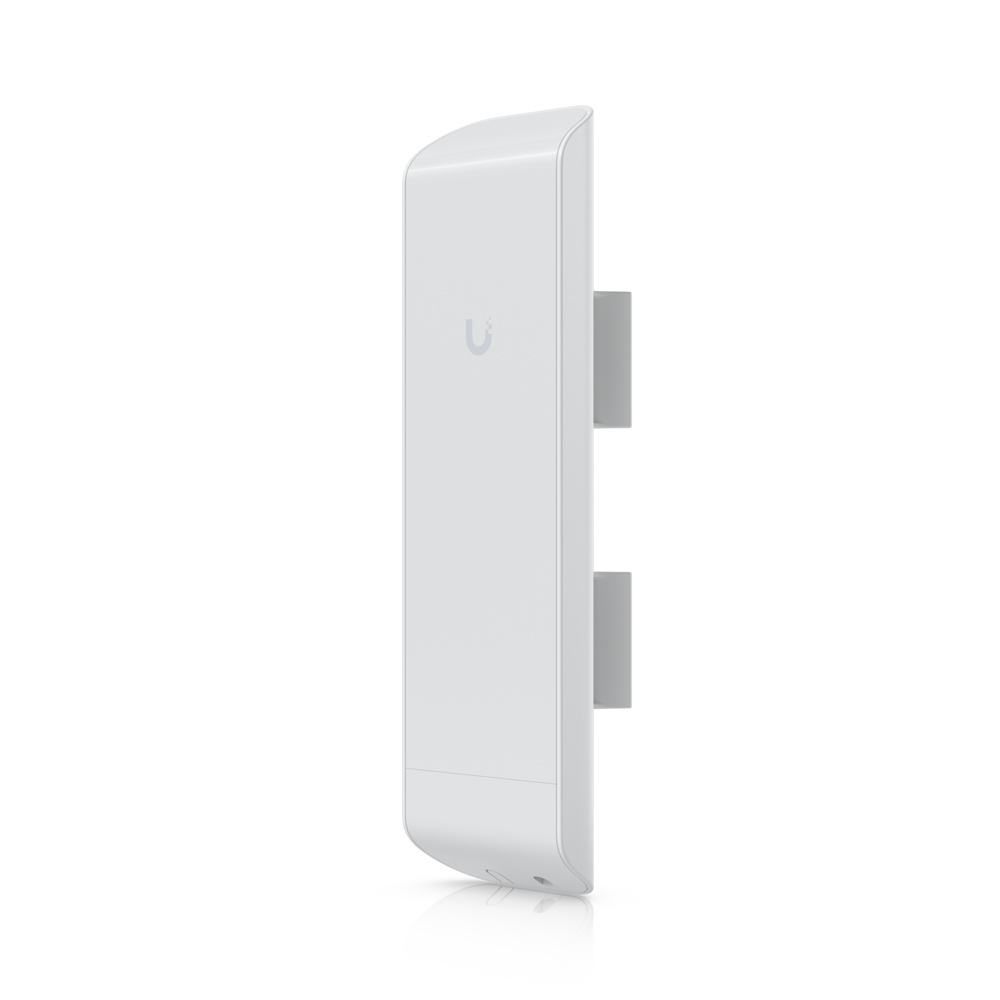

Ubiquiti airMAX NanoStation M5
The NanoStation M5 is a wireless solution with a 150Mbps radio throughput. It features two internal antennas and a secondary ethernet port with PoE output for IP camera integration or additional radio integration. It is also compatible with the Ubiquiti airMax system for carrier-class performance.
Any EU products are supplied with the appropriate UK power method at no extra cost.
Tech Specs
Click here for the Ubiquiti airMAX NanoStation M5 datasheet.
| Device Specifications | |
|---|---|
| Hardware | |
| Dimensions | 294 x 31 x 80 mm (11.6 x 1.3 x 3.2") |
| Weight | 400 g (14.1 oz) |
| Enclosure Material | Outdoor UV-stabilized plastic |

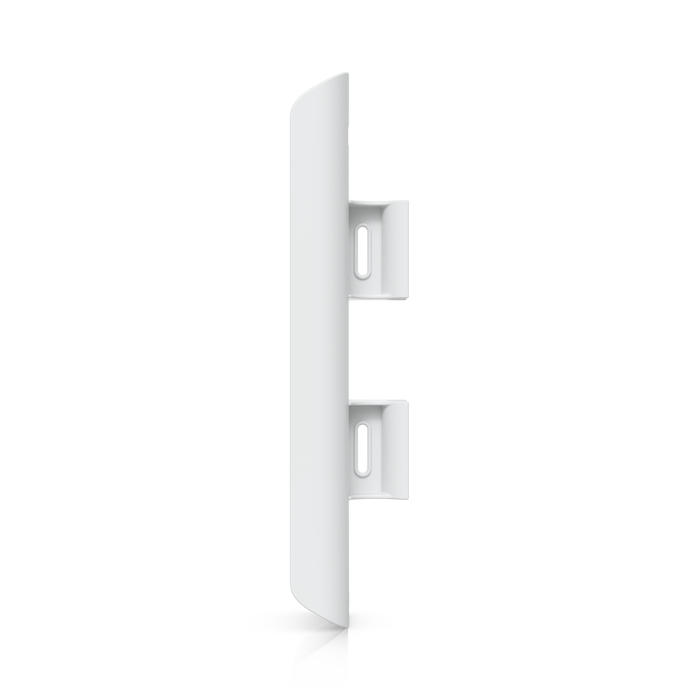

| Mounting | Pole-mount (Kit included) |

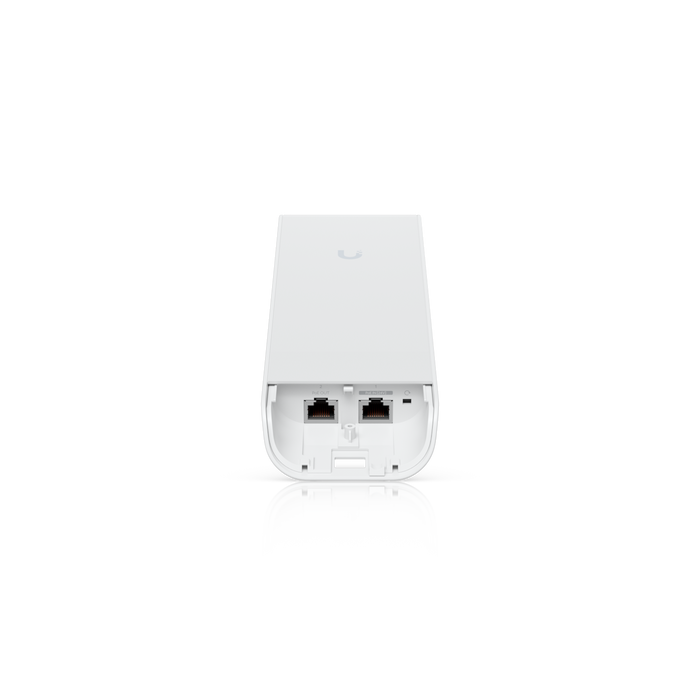

| Networking Interface | (2) 10/100 MbE RJ45 ports |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A PoE adapter (Included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 8W |
| Ambient Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Shock & Vibration | ETSI300-019-1.4 |
| Certifications | FCC, ICC, CE, RoHS |
| NDAA Compliant | Yes |
| System | |
| Frequency | 5 GHz |
| Operating Frequency | Worldwide: 5170–5875 MHz USA: 5725–5850 MHz USA DFS: 5250–5850 MHz |
| Gain | 14.6–16.1 dBi |
| Cross-Pol Isolation | 22 dB Min. |
| Max. VSWR | 1.6:1 |
| Beamwidth | 43° (H-pol) / 41° (V-pol) / 15° (Elevation) |
| Polarization | Dual Linear |
FAQs
Q1: What is the Ubiquiti NSM5 and what is it used for?
A: The Ubiquiti NSM5 is an outdoor wireless access point designed for 5 GHz fixed-wireless networks. It provides robust throughput and reliable connectivity for long-range point-to-multipoint (PtMP) deployments used in service provider and enterprise settings.
Q2: What frequency band does the NSM5 operate in?
A: The NSM5 operates in the 5 GHz band, a frequency range that supports high-capacity wireless links with typically lower interference than lower bands, making it suitable for broadband access and backhaul applications.
Q3: How is the NSM5 connected and powered?
A: The device is typically connected via Ethernet and powered using Power over Ethernet (PoE), allowing both network data and power to be delivered over a single cable for simplified installation, especially outdoors.
Q4: What network roles is the NSM5 suited for?
A: The NSM5 can function as a base station in point-to-multipoint networks or as a bridge in wireless backhaul links, delivering high-speed connectivity between central sites and distributed clients or other radios.
Q5: What physical and environmental features does the NSM5 offer?
A: The NSM5 features a rugged outdoor design engineered to withstand harsh weather and temperature extremes. It supports pole or mast mounting for stable installation and consistent performance in outdoor environments.
