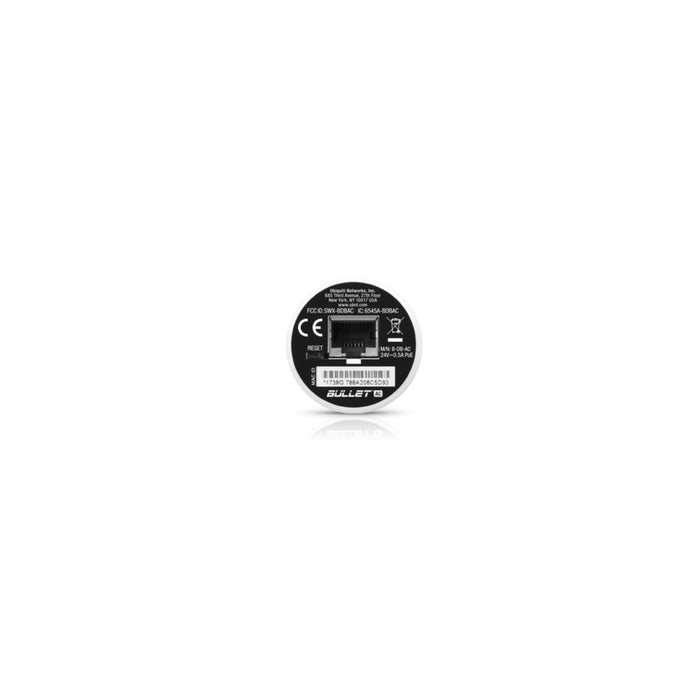

The Ubiquiti airMAX Bullet AC is a dual-band radio that operates on both 2.4GHz and 5GHz frequencies. With a dedicated WiFi management system, it can be utilised for short or long-distance links and offers speeds of up to 160+Mbps and 300+Mbps respectively. This versatile device features an N-type plug for easy connection to any antenna with an N-type female connector, eliminating the need for RF cables and minimising signal loss. Powered by 24V Passive PoE via a port at the base, it can be conveniently powered by a PoE switch or injector. Keep in mind that the Bullet AC is only compatible with other airMAX AC devices and cannot operate on both frequencies simultaneously.
Tech Specs
Click here for the Ubiquiti airMAX Bullet AC datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 190 x 46 mm (7.5 x 1.8") |
| Weight | 116 g (4.1 oz) |
| Enclosure Material | Polycarbonate |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V DC, 0.3A gigabit PoE adapter (Not included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 7W |
| Output Power | 22 dBm |
| Throughput | |
| 2.4 GHz | 160+ Mbps |
| 5 GHz | 300+ Mbps |
| ESD/EMP Protection | Air/contact ± 24 kV |
| Antenna Connector | N-type connector |
| LEDs | Power, Ethernet, (4) signal strength |
| Shock and Vibration | ETSI300-019-1.4 |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| US/CA | U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz 2.4 GHz: 2400 - 2483.5 MHz |
| Worldwide | 2.4 GHz: 2400 - 2483.5 MHz 5 GHz: 5150 - 5875 MHz |
| NDAA Compliant | Yes |
FAQs
Q1: What is the Ubiquiti B-DB-AC used for?
A1: The B-DB-AC (Bullet Dual-Band AC) is an outdoor, dual-band radio device designed to support both 2.4 GHz and 5 GHz wireless links. It’s ideal for point-to-point and point-to-multipoint setups, combining flexibility and performance in a compact form factor.
Q2: What throughput and frequency bands does B-DB-AC support?
A2: It supports real throughput of 160+ Mbps on 2.4 GHz and 300+ Mbps on 5 GHz. The device operates in both frequency ranges, enabling versatile deployment options.
Q3: What are the key hardware specifications of the B-DB-AC?
A3:
-
Dimensions: 190 × 46 mm
-
Weight: ~116 g
-
Enclosure: Polycarbonate
-
Interface: 1 × Gigabit Ethernet RJ45
-
Antenna Connector: N-type connector
-
Power: 24 V passive PoE (0.3 A)
-
Output Power: Up to 22 dBm
-
Power Consumption: ~7 W
-
Operating Temperature: –40 °C to 70 °C
Q4: Does the B-DB-AC support advanced wireless features?
A4: Yes, it includes Ubiquiti’s airMAX AC protocol which uses TDMA scheduling to reduce latency, improve scalability, and mitigate interference. It also features a separate Wi-Fi radio for quick setup and monitoring.
Q5: What installation factors and best practices are important for B-DB-AC?
A5:
-
Use shielded outdoor Ethernet cable with grounding and surge protection.
-
Mount with a compatible antenna matched to the environment.
-
Configure the airMAX AC channel widths and power levels carefully to comply with regulations.
-
Use the built-in signal strength LEDs to assist alignment.
-
Plan for regular firmware updates for performance and security enhancements.
