Ubiquiti airMAX IsoStation M5

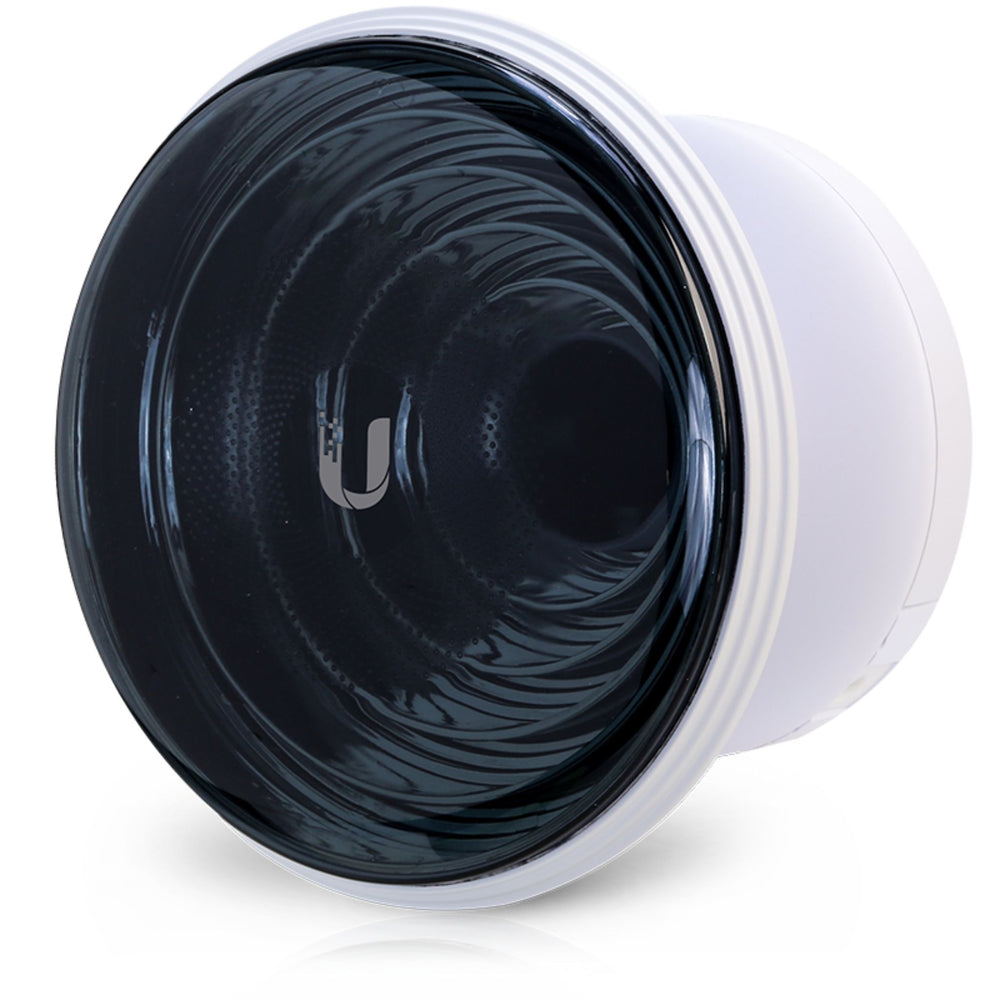

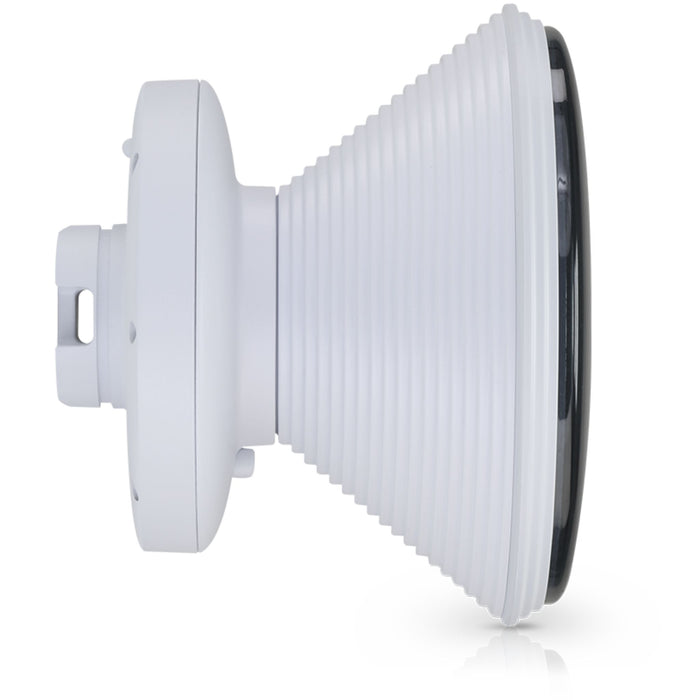

The Ubiquiti airMAX IsoStation M5 is a versatile, modular device that features a sturdy die-cast aluminum base and interchangeable horn antennas. This innovative design reduces side lobes and allows for a wider range of deployment options. While the device comes with a standard 45° symmetrical horn, it can easily be replaced with a 30° symmetrical horn, or a 60° or 90° asymmetrical horn. With a convenient single button release, changing antennas is a breeze, making it effortless to enhance or expand your network.
Tech Specs
Click here for the Ubiquiti airMAX IsoStation M5 datasheet.
| Device Specifications — Mechanical / Physical | |
|---|---|
| Dimensions | With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9") Without horn: 131 x 131 x 65 mm (5.2 x 5.2 x 2.6") |
| Weight | With horn: 726 g (1.6 lb) Without horn: 408 g (0.90 lb) |
| Wind Loading | 36 N @ 200 km/h (8.09 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |

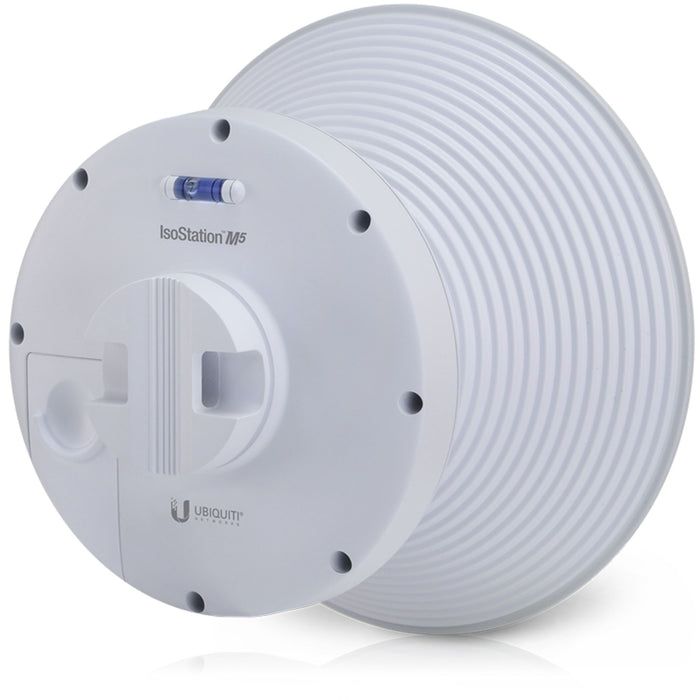

| Mounting | Pole-mount (Kit included) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 6.5W |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| System | |
| Gain | 14 dBi |
| Beamwidth | 45° (Default Horn) |
| Operating Frequency | Worldwide: 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz, U-NII-3: 5725-5850 MHz |
FAQs
Q1: What is the Ubiquiti IS‑M5 used for?
A: The IS‑M5 is an outdoor 5 GHz wireless CPE/radio designed for point‑to‑point or point‑to‑multipoint links, providing reliable 5 GHz connectivity for backhaul or distribution in wireless networks.
Q2: What are the basic antenna and radio specifications of the IS‑M5?
A: It operates in the 5.15–5.875 GHz band, uses a built‑in 14 dBi antenna, and has a default horizontal beamwidth of 45° (with the supplied horn antenna), giving a good balance between range and coverage.
Q3: What network interface and power method does the unit use?
A: It has one Gigabit Ethernet (RJ45) port for data, and is powered via passive PoE (24 V DC, 0.5 A) over the Ethernet cable — no separate power cable required.
Q4: What are the mechanical and environmental operating specifications?
A: With the horn, its dimensions are approximately 174 × 174 × 150 mm; weight is around 726 g. It’s designed for outdoor use, with an operating temperature range of –40 °C to +70 °C and rated wind survivability up to 200 km/h, making it suitable for exposed mast or rooftop installation.
Q5: What sort of deployment scenarios is IS‑M5 best suited for?
A: It is ideal for bridging networks over moderate distances, wireless backhaul, rural or remote‑site connectivity, or building robust 5 GHz links where reliability and weather resistance matter — especially when a compact, integrated‑antenna CPE is desirable.
