Ubiquiti airMAX LiteBeam 5AC

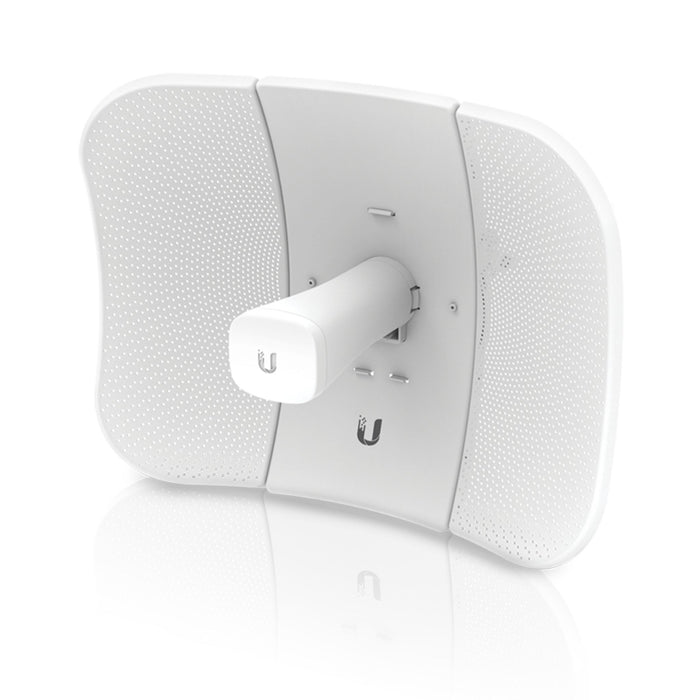

The Ubiquiti LiteBeam AC Gen 2, a lightweight CPE device capable of up to 450+Mbps throughput, improves upon its predecessor with tighter bandwidth and increased noise immunity for use in densely populated RF areas. It incorporates the successful integrated technology by placing the radio within the feedhorn, eliminating the need for cables and minimising loss. A separate WiFi radio is also included for quick and simple setup via mobile device.
Tech Specs
Click here for the Ubiquiti airMAX LiteBeam 5AC datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 358 x 271.95 x 272.5 mm (14.1 x 10.7 x 10.7") |
| Weight | Without mount: 800 g (1.8 lb) With mount: 980 g (2.2 lb) |
| Wind survivability | 200 km/h (125 mph) |
| Wind loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.3A gigabit PoE adapter (Included) |
| Supported voltage range | 22–27V DC |
| Max. power consumption | 7W |
| Max. power output | 25 dBm |
| Gain | 23 dBi |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA | U-NII-1: 5150-5250 MHz U-NII-2A: 5250-5350 MHz U-NII-2C: 5240-5725 MHz U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
FAQs
Q1: What is the Ubiquiti LBE-5AC-GEN2?
A1: The LBE-5AC-GEN2 is a compact, high-performance 5 GHz outdoor Wi-Fi radio designed for long-range point-to-point (PtP) and point-to-multipoint (PtMP) wireless links. It features an integrated 23 dBi antenna and uses airMAX ac technology for improved performance and scalability.
Q2: What throughput and range does the LBE-5AC-GEN2 support?
A2: The LBE-5AC-GEN2 offers up to 450 Mbps real TCP/IP throughput and supports link distances of 15+ km in optimal conditions.
Q3: What are the key hardware specifications of the LBE-5AC-GEN2?
A3: Key specifications include:
-
Processor: MIPS 74Kc
-
Memory: 64 MB DDR2
-
Networking Interface: (1) 10/100/1000 Ethernet Port
-
Antenna Gain: 23 dBi
-
Power Method: Passive PoE 2-pair (Pairs 4, 5+; 7, 8 Return)
-
Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
-
Max. Power Consumption: 7W
-
Supported Voltage Range: 24V ±10%
-
Operating Temperature: -40 to 70°C (-40 to 158°F)
-
Weight: 980 g (2.16 lb) with mount
-
Dimensions: 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73")
-
Mounting: Pole mounting kit included
-
Enclosure Material: Reflector (SGCC 0.6T) / Plastic: PC
-
Wind Survivability: 200 km/h (125 mph)
-
Wind Loading: 275 N @ 200 km/h (61.8 lbf @ 125 mph)
-
ESD/EMP Protection: ± 24 kV Contact / Air
-
Certifications: CE, FCC, IC
Q4: Does the LBE-5AC-GEN2 include a backup radio?
A4: No, the LBE-5AC-GEN2 does not include a backup radio. For redundancy, consider pairing it with another LBE-5AC-GEN2 or a compatible device.
Q5: What software features does the LBE-5AC-GEN2 support?
A5: The LBE-5AC-GEN2 supports features such as UISP management, airMAX ac protocol, and a dedicated Wi-Fi radio for management and spectral analysis. It operates in bridge mode and is compatible with UISP web and mobile applications.
