Ubiquiti UISP Fiber OLT XGS
The Ubiquiti UISP Fiber OLT XGS - a high-speed optical line terminal with eight ports that can provide 10 Gbps speeds for more than 2,000 subscribers. This product boasts features such as XGS-PON and 10 Gbps bi-directional capacity, 2048 client capacity, (4) 25G SFP28 uplink ports, and 1U rack mount AC/DC power module redundancy support.
Tech Specs
Click here for the UISP Fiber OLT XGS datasheet.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight | 5.29 kg (11.7 lb) |
| Enclosure Material | SGCC steel |
| Hardware | |

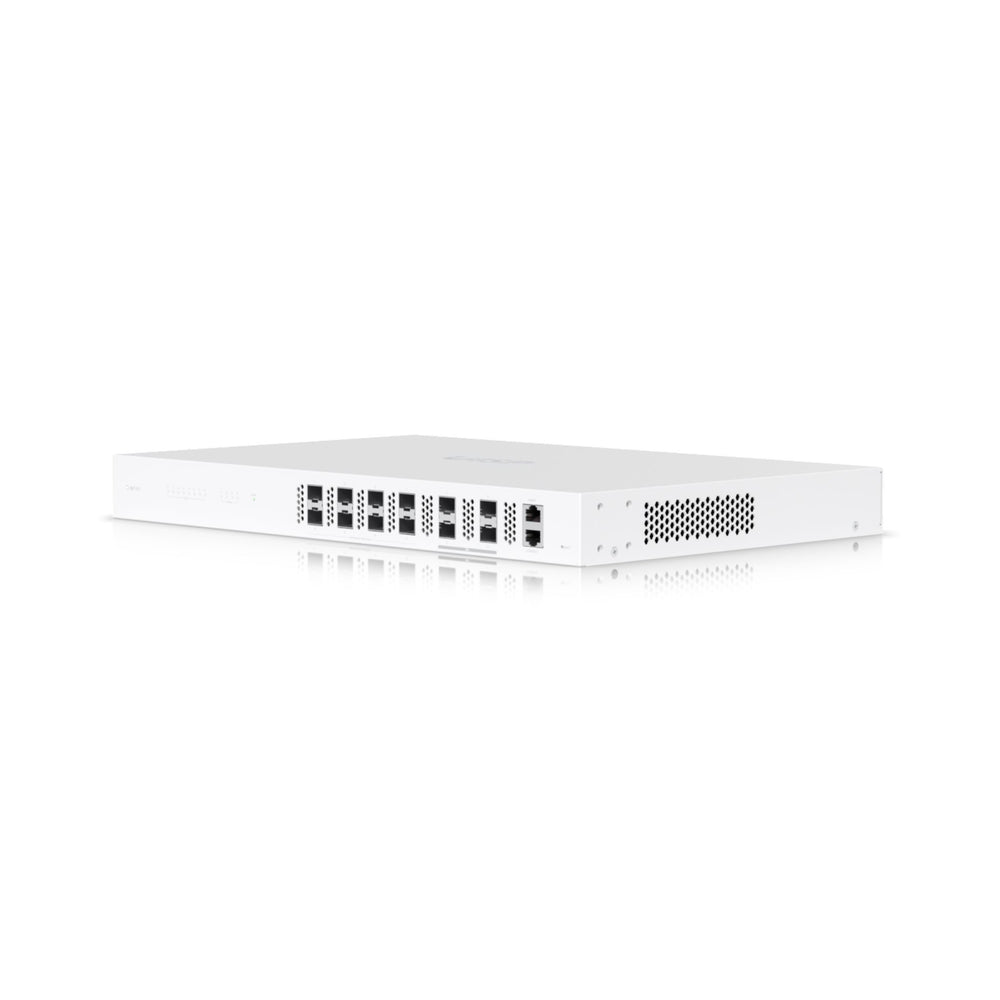

| Networking Interface | (8) XGS/XG/GPON ports (4) 1/10/25G SFP28 ports* *The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps. |
| Management Interface | Ethernet out-of-band Ethernet in-band RJ45 serial console port Bluetooth |
| Memory | 512 MB DDR3 |
| Onboard Flash Storage | 64 MB NOR + 512 MB NAND |
| Power Method | (1) Universal AC input, 100–240V AC, 50/60 Hz |

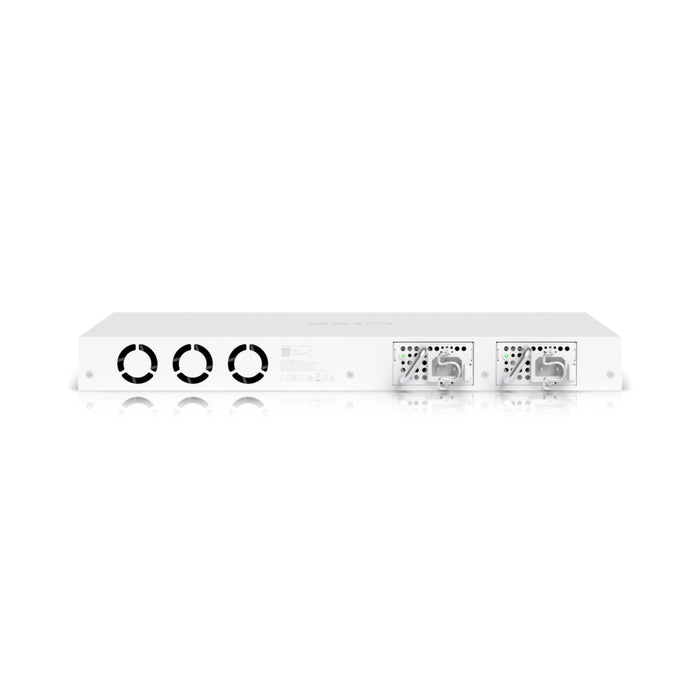

| Power Supply | (2) Hotswap AC/DC PSU |
| Supported Voltage Range | 100–240V AC |
| Max. Power Consumption | 70W |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 10 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Slow blinking white: system is booting Fast blinking white: reset to default Blinking white/blue: system is upgrading Slow blinking blue: system is connecting to UISP Fast blinking blue: locate system Steady white: system is ready Steady blue: system is ready and connected to UISP |
| MGMT Port | (1) White, steady on after link is up |
| PON Ports | (8) Steady white: PON link |
| SFP28 Ports | (4) White, steady on after link is up |
| NDAA Compliant | Yes |
FAQs
Q: What is the Ubiquiti UISP-FIBER-OLT-XGS used for?
A: The UISP-FIBER-OLT-XGS is a 10G GPON optical line terminal designed for high-capacity fiber networks, providing reliable connectivity for enterprise and ISP deployments.
Q: What type of ports does the UISP-FIBER-OLT-XGS include?
A: It features 10G uplink ports and multiple GPON ports, enabling scalable deployment and high-speed fiber access for multiple subscribers.
Q: Can the UISP-FIBER-OLT-XGS handle large-scale subscriber networks?
A: Yes, it is engineered for high-density GPON networks, supporting multiple clients simultaneously with stable, high-speed connectivity.
Q: What management capabilities are available with the UISP-FIBER-OLT-XGS?
A: The device integrates with UISP software, offering centralized monitoring, configuration, and network analytics for efficient operation.
Q: Is the UISP-FIBER-OLT-XGS suitable for enterprise and ISP networks?
A: Yes, its high-capacity 10G GPON architecture and advanced management make it ideal for enterprise, campus, and ISP fiber deployments.
