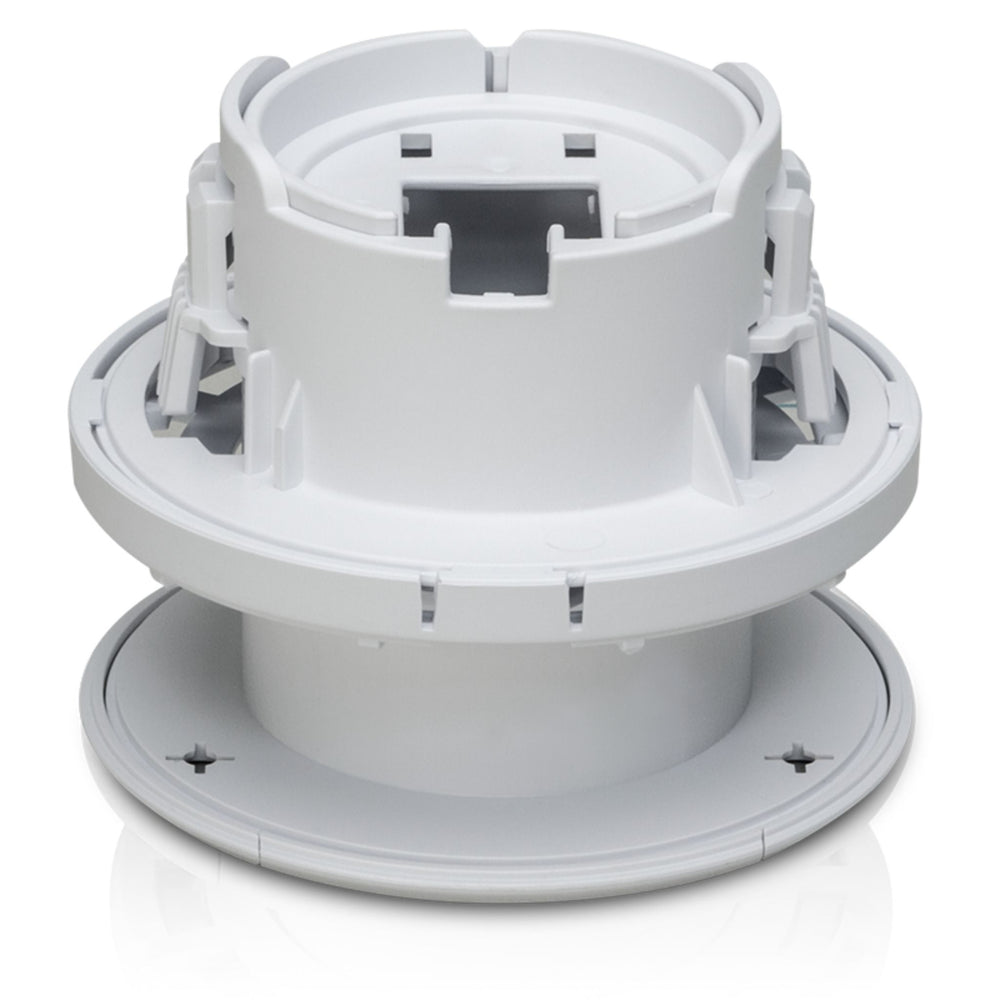

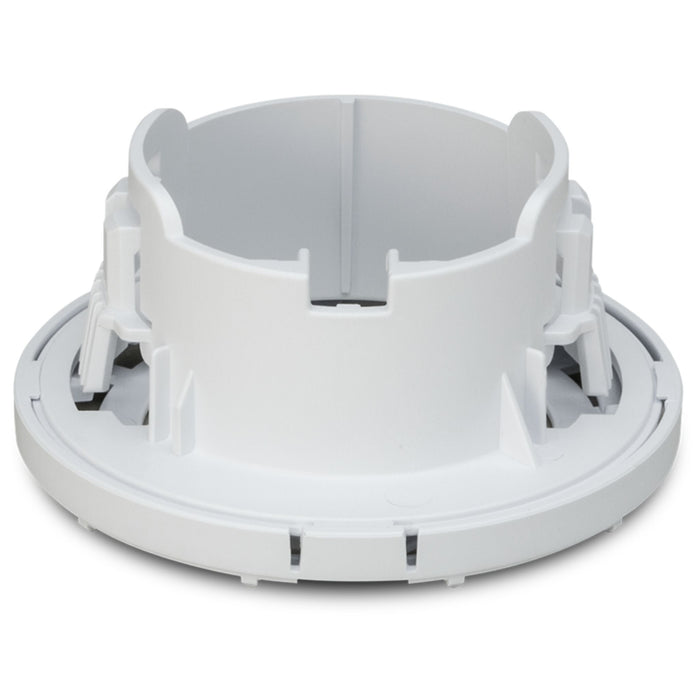

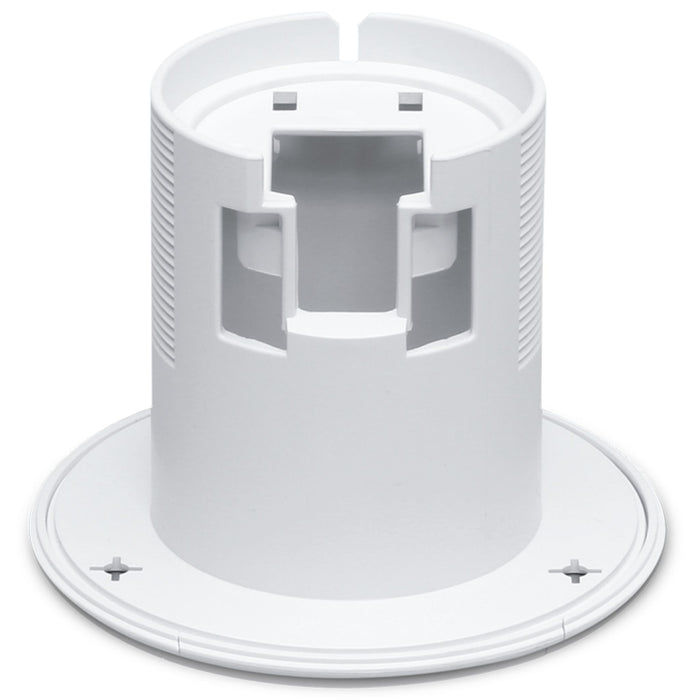

Ubiquiti Flex Camera Ceiling Mount

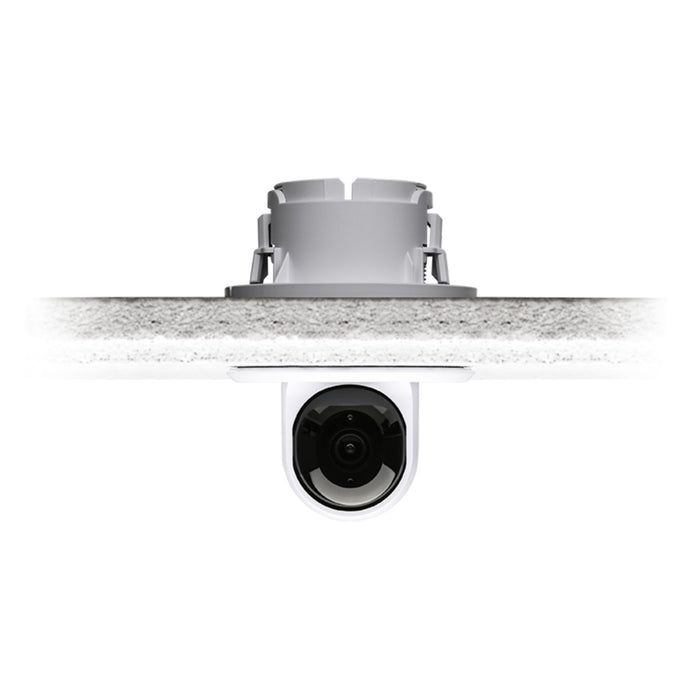

The Ubiquiti Flex Camera Ceiling Mount provides an easy solution for mounting your UVC-G3-FLEX camera inside the ceiling or a ceiling tile. With included mounting hardware for drywall, solid surface, or ceiling tile, you can achieve a professional, low-profile installation. This mount also offers an optional security screw for added protection by locking the camera in place from above.
Tech Specs
Note: Also compatible with the UVC-G5-Flex!
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions | Ø88.3 x 67.8 mm (Ø3.5 x 2.7") |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
FAQs
Q. What is the Ubiquiti UVC-G3-F-C Ceiling Mount?
A: The UVC-G3-F-C is a recessed ceiling mount designed specifically for the UniFi Protect G3 Flex camera. It allows for a clean, low-profile installation, making it ideal for ceiling-mounted surveillance setups.
Q. What are the dimensions of the UVC-G3-F-C mount?
A: The mount has a diameter of 88.3 mm (3.5 inches) and a height of 67.8 mm (2.7 inches).
Q. What is the weight of the UVC-G3-F-C ceiling mount?
A: The mount weighs approximately 136 grams (4.8 ounces).
Q. What material is the UVC-G3-F-C mount made of?
A: The mount is constructed from durable polycarbonate, ensuring longevity and reliability.
Q. What is the operating temperature range for the UVC-G3-F-C mount?
A: The mount is designed to operate in ambient temperatures ranging from -20°C to 40°C (-4°F to 104°F).
Q. What is the operating humidity range for the UVC-G3-F-C mount?
A: The mount can function in environments with humidity levels between 20% and 90% (non-condensing).
Q. Does the UVC-G3-F-C mount support upside-down installation?
A: Yes, the mount supports upside-down installation, providing flexibility in mounting orientations.
Q. What mounting hardware is included with the UVC-G3-F-C?
A: The mount includes drywall mounting anchors and a retainer for ceiling tile installation, facilitating easy and secure mounting.
Q. Is the UVC-G3-F-C mount available in multi-packs?
A: Yes, the UVC-G3-F-C mount is available in single units or in a 3-pack (UVC-G3-F-C-3), catering to different installation needs.
