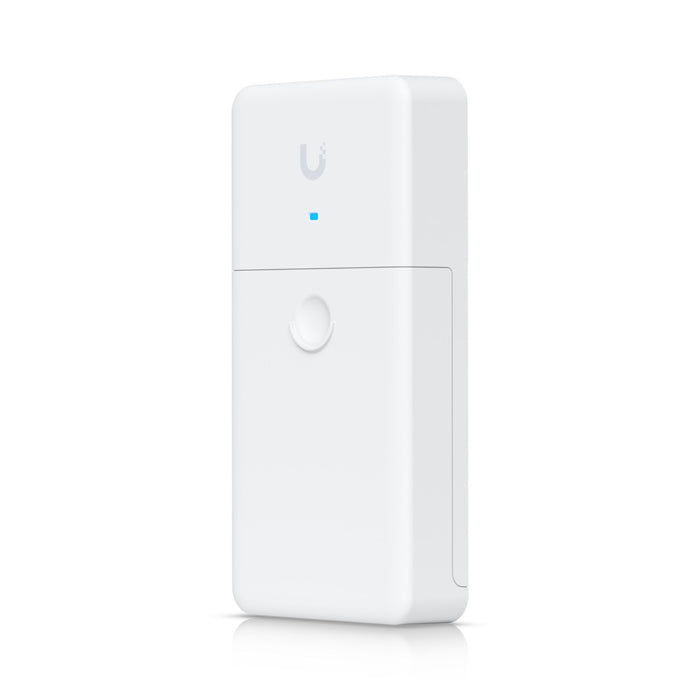

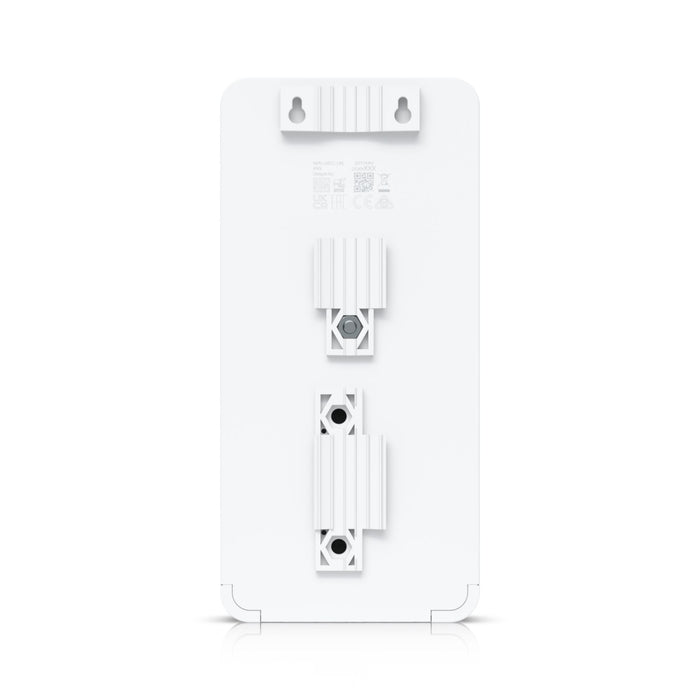

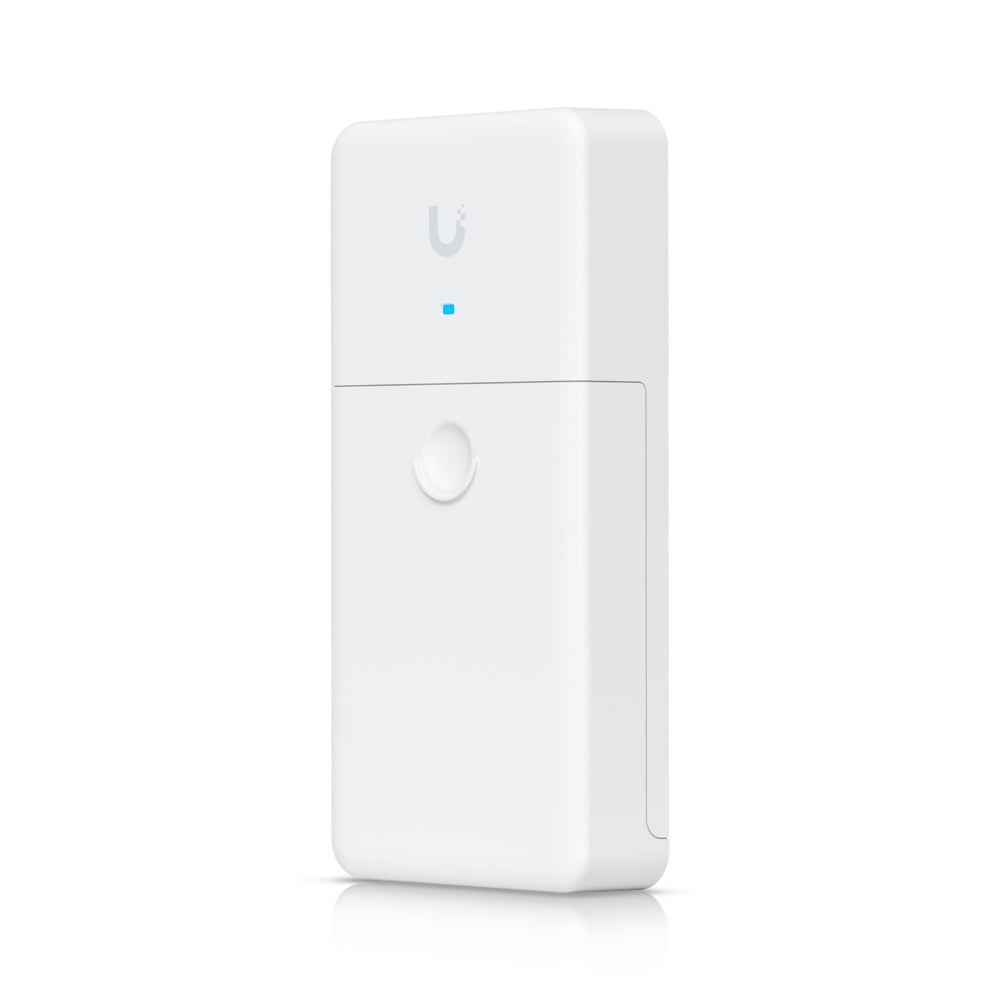

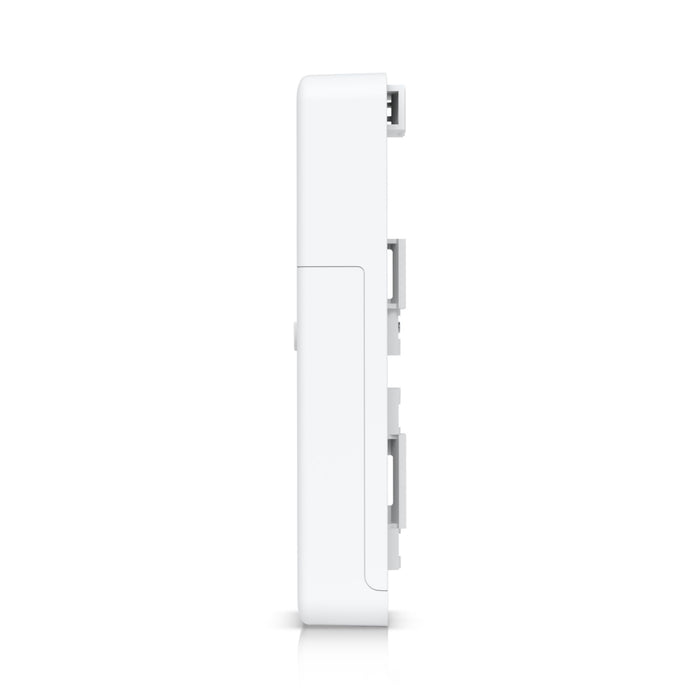

Ubiquiti Long-Range Ethernet Repeater
Please contact us for stocking information.
The Ubiquiti LRE is an indoor/outdoor Gigabit adapter that expands Ethernet network range. It has 2 GbE RJ45 ports for PoE/PoE+ passthrough and 10kA+ surge protection. Can be chained for long-distance connections and withstands extreme temperatures for weather and electrical damage protection.
Tech Specs
Click here for the Ubiquiti Long-Range Ethernet Repeater datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 196.5 x 93.5 x 39 mm (7.7 x 3.7 x 1.5") |
| Mechanical | |
| Weight | 350 g (12.3 oz) |
| Enclosure Material | UV stabilized polycarbonate |
| Mounting Material | Stainless steel |
| Weatherproofing | IPX5 |
| Hardware | |
| Power Method | PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-) |
| Max. Power Consumption | 1.5W (Excluding PoE output) |

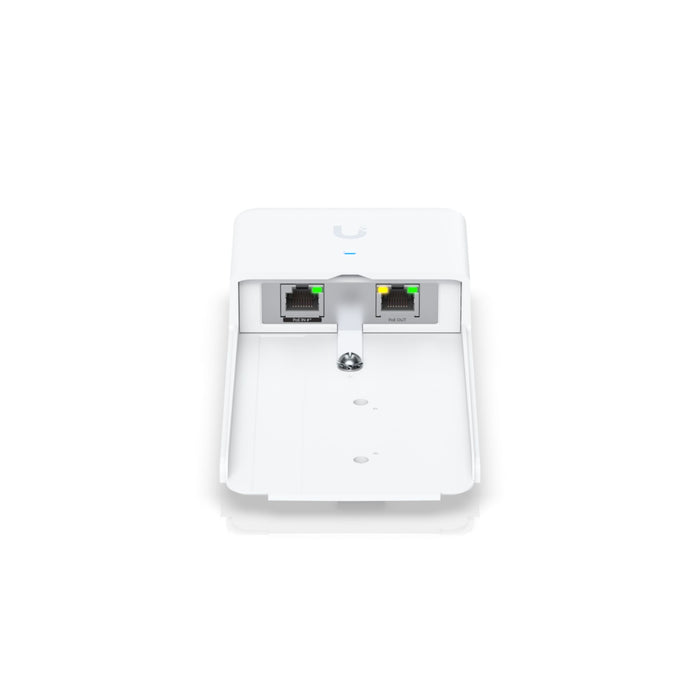

| Networking Interface | (2) GbE RJ45 ports |
| PoE Interface | (1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-) |
| Total Non-Blocking Line Rate | 2 Gbps |
| Switching Capacity | 4 Gbps |
| Forwarding Rate | 1.488 Mpps |
| Total Available PoE | 22.5W |
| Voltage Range PoE Mode | 37—57V DC |
| ESD/EMP Protection | Air/contact: ± 30kV |
| DC Sparkover Voltage | 90V at 100V/s |
| Max. Impulse Sparkover Voltage | 700V at 1kV/μs |
| Discharge Current | 10kA+ |
| Max. MTU | 1,500 bytes |
| LEDs | System: Blue: power ON Ethernet: Green: 1 Gbps, Amber: 10/100 Mbps PoE: Amber: passthrough PoE out |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
FAQs
Q1: What is the Ubiquiti UACC-LRE used for?
A1: The UACC-LRE is a mounting bracket designed to securely install Ubiquiti LRE (Long-Range Ethernet) devices on walls, poles, or other stable surfaces.
Q2: Is the Ubiquiti UACC-LRE weather-resistant?
A2: Yes, it is made from durable, weather-resistant materials, making it suitable for both indoor and outdoor deployments.
Q3: Which devices are compatible with the Ubiquiti UACC-LRE?
A3: This bracket is specifically designed for Ubiquiti LRE devices, ensuring proper fit, alignment, and stability for reliable operation.
Q4: How is the Ubiquiti UACC-LRE installed?
A4: Installation involves securing the bracket to a surface with screws or straps, then mounting the LRE device onto the bracket for stable positioning.
Q5: Does using the Ubiquiti UACC-LRE affect device performance?
A5: No, the bracket is engineered to maintain proper device alignment and airflow, ensuring optimal signal strength and performance.
