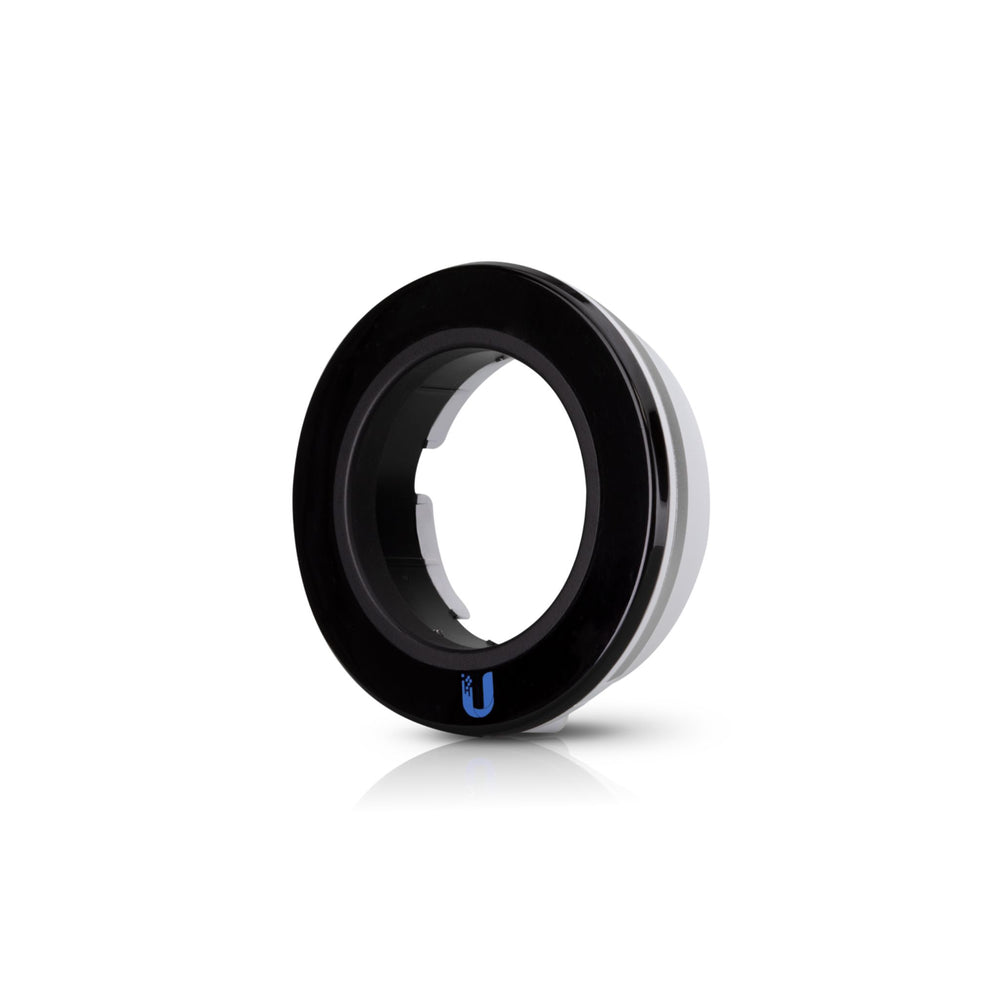

Ubiquiti Long-range IR LED accessory for UVC-G4
Enhance the reach of your G4 Bullet camera with the Ubiquiti UniFi Video Camera G4 IR Range Extender, a long-range IR LED accessory.
Tech Specs
| Device Specifications — Mechanical | |
|---|---|
| Dimensions | Ø 80 x 26 mm (Ø 3.15 x 1.02") |
| Weight | 75 g (2.7 oz) |
| Enclosure Material | UV-stability plastic, aluminum alloy |
| Weatherproofing | IPX4 |
| Device Specifications — Hardware | |
| IR Distance | 25 m (82 ft) |
| Power Method | Accessory connector |
| Power Supply | UniFi Protect G4 Bullet camera |
| Max. Power Consumption | 4.5W |
| Compatibility | UVC-G4-Bullet |
| LEDs | (6) Built-in high-intensity infrared |
| Ambient Operating Temperature | -20 to 40°C (-4 to 104°F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
FAQs
Q1: What is the UVC‑G4‑IRExtender used for?
A: The UVC‑G4‑IRExtender is an external infrared (IR) LED module that attaches to a supporting camera to extend its night‑vision range. It enhances low‑light performance by adding stronger IR illumination.
Q2: How much extended IR range does the IRExtender provide?
A: It provides IR illumination with effective night‑vision range up to 25 metres.
Q3: What kind of environment is the UVC‑G4‑IRExtender designed for?
A: The extender is built for outdoor‑rated cameras: it uses weather‑resistant materials and supports outdoor use (i.e. in external installations under typical weather exposure).
Q4: What power and connection method does the IRExtender use?

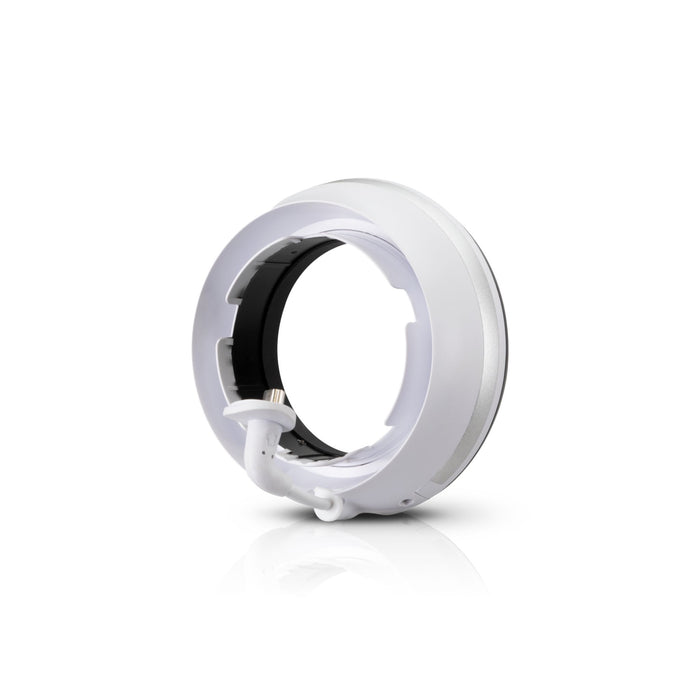

A: The module draws power directly from the compatible camera — no separate power supply is required. Once connected to the camera’s accessory port, it operates automatically according to the camera’s IR or night‑vision settings.
Q5: What are the physical characteristics (size, weight) of the IRExtender?
A: The extender is compact: approximately 80 mm × 26 mm, and weighs around 75 g, making it unobtrusive and easy to install alongside the camera.
