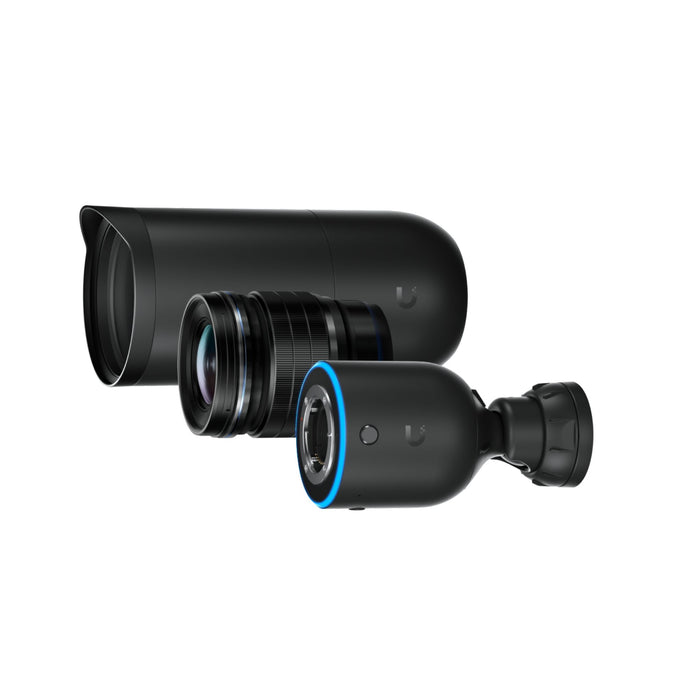

Ubiquiti UniFi AI DSLR
The Ubiquiti AI DSLR is equipped with a 17mm lens, making it perfect for both indoor and outdoor use. This camera boasts an impressive 4K (8MP) video resolution and a high-sensitivity imaging sensor for superior quality footage. It also includes an advanced AI feature, allowing it to detect people and read license plates. With its PoE+ connection, powering and connecting the camera is a breeze. Plus, its weatherproof design makes it suitable for outdoor use in any condition.
Tech Specs
Click here for the UniFi AI DSLR datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | Without mount: Ø80 x 89 mm (Ø3.1 x 3.5") With mount: Ø80 x 153 mm (Ø3.1 x 6") M. Zuiko Digital ED 17 mm PRO: Ø68.2 x 87 mm (Ø2.7 x 3.4") M. Zuiko Digital ED 45 mm PRO: Ø70 x 84.9 mm (Ø2.8 x 3.3") Outdoor case: Ø91.6 x 196.3 mm (Ø3.6 x 7.7") |
| Face Recognition | ✓ |
| License Plate Recognition | ✓ |
| Smart Detections | People, Vehicles, Animals |
| Resolution | 4K |
| Field of View | M. Zuiko Digital ED 17 mm PRO: H: 52°, V: 39°, D: 65° M. Zuiko Digital ED 45 mm PRO: H: 21.6°, V: 16.2°, D: 27° |
| Audio | Two-way audio |
| Weatherproofing | IPX5 (With the outdoor case) |
| Mounting | Wall, pole mount (Included) Tripot mount (Optional) |
| Performance | |
| Networking Interface | GbE RJ45 port |
| Video | Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Optics | Sensor: 4/3" 10MP CMOS Lens: M. Zuiko Digital ED 17 mm ƒ/1.2 PRO M. Zuiko Digital ED 45 mm ƒ/1.2 PRO |
| Hardware | |
| Max. Power Consumption | 17.77W (With lens working) |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE+ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Weight | Without mount: 660 g (1.5 lb) With mount: 820 g (1.8 lb) M. Zuiko Digital ED 17 mm PRO: 390 g (0.9 lb) M. Zuiko Digital ED 45 mm PRO: 410 g (0.9 lb) Outdoor case: 510 g (1.1 lb) |
| Enclosure Material | Aluminum alloy |
| Mount Material | Wall mount: aluminum alloy Pole mount: aluminum alloy |
| Button | (1) Factory-reset (1) Lens release key |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
FAQs
Q. What type of camera is the Ubiquiti UVC-AI-DSLR?
A: The UVC-AI-DSLR is a professional surveillance camera that combines DSLR-grade imaging with AI-powered analytics for advanced security monitoring.
Q. What AI features does the Ubiquiti UVC-AI-DSLR include?
A: It includes AI-based person and vehicle detection, motion alerts, and smart notifications to reduce false positives and improve monitoring accuracy.
Q. What resolutions and video formats does the UVC-AI-DSLR support?
A: The camera supports ultra-high-definition video up to 4K with H.264 and H.265 encoding, delivering professional image quality with efficient storage usage.
Q. How does the Ubiquiti UVC-AI-DSLR integrate with UniFi Protect?
A: The UVC-AI-DSLR integrates seamlessly with UniFi Protect, allowing live view, playback, and AI-driven analytics directly through the UniFi Protect platform.
Q. What networking and power options are available for the UVC-AI-DSLR?
A: The camera uses Gigabit Ethernet with PoE (Power over Ethernet), combining power and data delivery through a single cable for simple installation.
