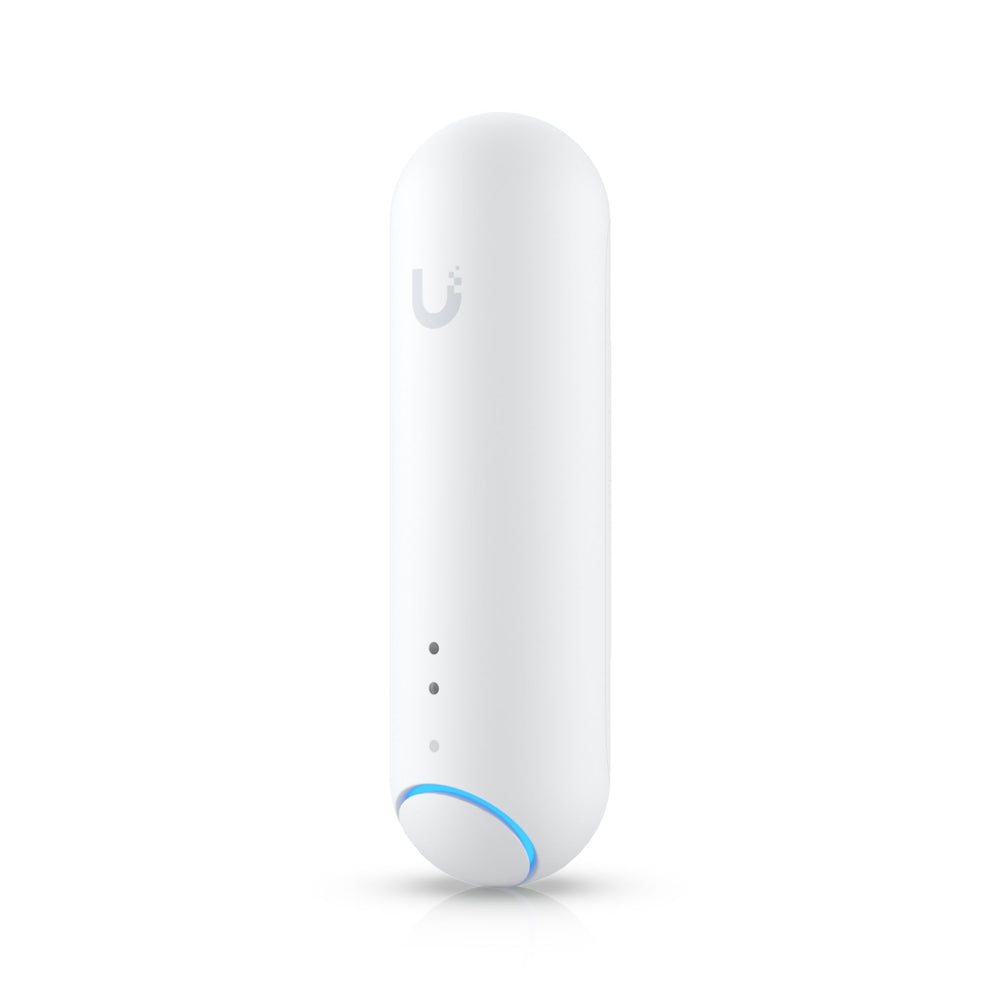

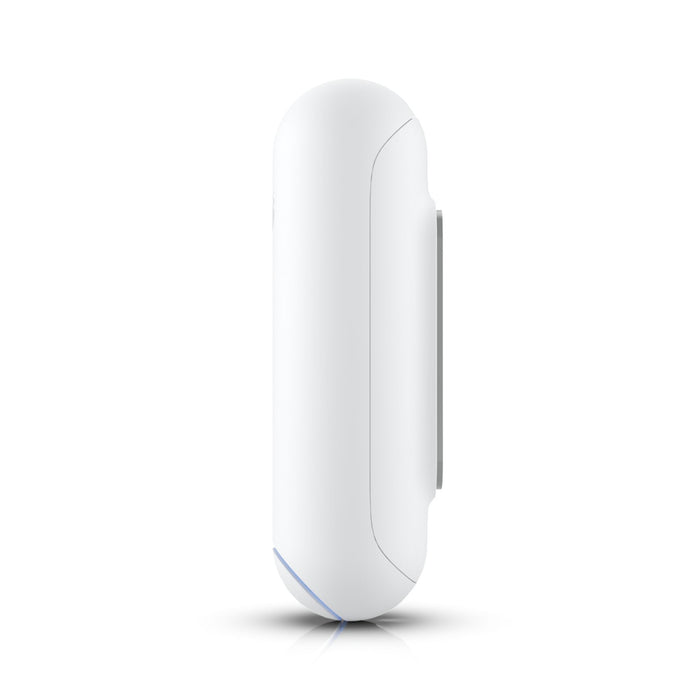

Ubiquiti UniFi Protect All-In-One Sensor
This battery-powered sensor is able to detect motion, lighting, and environmental changes with its advanced technology. Notable features include motion detection up to 5 m (16 ft), temperature and humidity sensing, ambient light sensing, alarm sound sensing*, and door and window state sensing. With up to 1 year of battery life, it easily connects to a UniFi Bluetooth-enabled access point**, making it a reliable and convenient device for any setup. (*Based on UL217 and UL2034 alarm patterns.) (**Requires connection to an up-to-date Bluetooth-supported UniFi Access Point.)
Tech Specs
Click here for the UniFi All-In-One Sensor datasheet.
| Device Specifications | |
|---|---|
| Dimensions | Ø24 x 83.5 mm (Ø0.9 x 3.3") |
| Weight | 50.2 g (1.8 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Flat wall mount: polycarbonate, adhesive Corner mount: polycarbonate, adhesive |
| Additional Gear | Magnet (1) Water sensor adapter (Only available in the 3-pack.) |
| Hardware | |
| Networking Interface | Bluetooth 5.0, BLE |
| Sensor Features | Motion Sensor ✓ Magnetic Entry Sensor for Door or Window Open/Close ✓ Accelerometer for Garage Door Open/Close ✓ Temperature Sensor ✓ Humidity Sensor ✓ Ambient Light Sensor ✓ Alarm Sound Sensor ✓ Water Sensor ✓ BLE Connectivity from SuperLink or a UniFi Access Point in an Indoor Setting Must be connected to an up-to-date Bluetooth-supported UniFi access point. |
| Antennas | (1) 2.4GHz |
| LEDs | R/B/W |
| Buttons | (1) Factory-reset |
| Ambient Operating Temperature | 0 to 45° C (32 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
| Software | |
| Application Requirements | Web Application: UniFi Protect Mobile App: UniFi Protect iOS™ and Android™ |
FAQs
Q: What is the Ubiquiti UP-Sense?
A: The UP-Sense is a battery-powered smart sensor designed for the UniFi Protect ecosystem. It detects motion, ambient light, temperature, humidity, and door/window status, providing comprehensive environmental monitoring.
Q: How does the UP-Sense connect to the network?
A: The UP-Sense connects via Bluetooth 5.0 to compatible UniFi access points, such as the U6-LR, U6-Lite, or U6-Pro, which must be updated to specific firmware versions to support the sensor.
Q: What are the key features of the UP-Sense?
A: Key features include:
-
Motion detection up to 5 meters (16 feet)
-
Temperature and humidity sensing
-
Ambient light sensing
-
Alarm sound pattern recognition (UL217 and UL2034)
-
Magnetic entry sensor for door/window open/close
-
Optional water leak detection (requires additional adapter)
Q: What is the battery life of the UP-Sense?
A: The UP-Sense offers up to 1 year of battery life, depending on usage and environmental conditions.
Q: What are the operating conditions for the UP-Sense?
A: The sensor operates within a temperature range of 0°C to 45°C (32°F to 113°F) and humidity levels of 10% to 90% non-condensing.
