Ubiquiti UniFi Cloud Gateway Max
UniFi Cloud Gateway Max – Compact 2.5G UniFi Gateway with Multi-WAN and NVR Storage
The UniFi Cloud Gateway Max is a compact and powerful UniFi OS Console that delivers full-stack network and application management in a sleek, space-saving form factor. Supporting over 30 UniFi devices and 300+ clients, it’s ideal for professional home setups, branch offices, and compact business deployments that demand enterprise-level control without the footprint.
It delivers up to 2.3 Gbps routing performance with integrated intrusion detection and prevention (IDS/IPS), and includes support for multi-WAN load balancing to maintain uptime and optimise bandwidth. Built-in 512 GB NVMe SSD storage enables use of UniFi Protect for local video recording with optional NVR functionality.

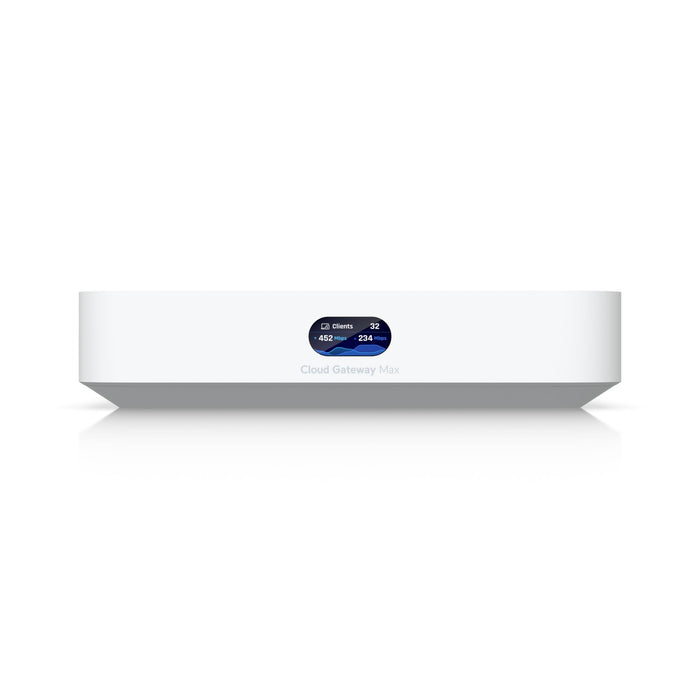

The device features a 0.96" LCM display for real-time status monitoring and is powered via USB-C, with an adapter included for simple installation. With support for the full UniFi application suite, the Cloud Gateway Max offers a versatile and reliable platform for small to medium UniFi deployments.
Tech Specs
Click here to see the Ubiquiti UniFi Cloud Gateway Max Datasheet.
| Device Specifications | |
|---|---|
| Overview | |
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| UniFi Application Suite | Network ✓ Protect ✓ Access ✓ Talk ✓ Connect ✓ |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (15) HD (8) 2K (5) 4K |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |

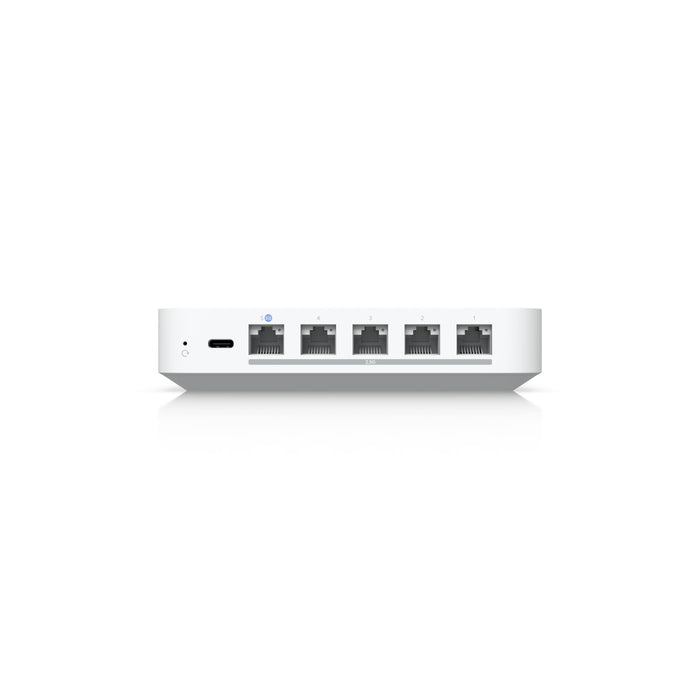

| Port Layout | 2.5 GbE RJ45 - 5 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Security | |
| Features | Stateful Firewall ✓ Application-Aware Layer 7 Firewall ✓ DPI & Traffic Identification ✓ Zone-Based Firewall Filtering ✓ Content Filtering ✓ Intrusion Prevention (IPS/IDS) ✓ Ad Blocking ✓ IDS/IPS Signatures: 55,000+ with CyberSecure VLAN/Subnet-based Traffic Segmentation ✓ |
| VPN & SD-WAN | |
| Features | License-Free SD-WAN ✓ Site-to-Site VPN (Site Magic) ✓ IPsec ✓ OpenVPN ✓ VPN Server: Identity Endpoint One-Click VPN ✓ Teleport Zero-Configuration VPN ✓ WireGuard ✓ L2TP ✓ VPN Client: OpenVPN ✓, WireGuard ✓ |
| Networking | |
| Features | Multi-WAN Load Balancing ✓ Dynamic Routing (OSPF) ✓ Advanced QoS ✓ Multicast DNS (mDNS) ✓ Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓ Integrated RADIUS Server ✓ RADIUS over TLS (RadSec) ✓ Additional Internet Failover with UniFi LTE Backup ✓ Internet Quality & Outage Reporting ✓ MAC Address Table Size: 2,000 Policy-based WAN and VPN Routing ✓ Customizable DHCP Server ✓ IPv6 ISP Support ✓ IGMP Proxy ✓ |
| Hardware | |
| NVR Storage | Selectable NVMe SSD up to 2 TB |
| Max. Power Consumption | 16.1 W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Supported Voltage Range | 100—240V AC |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| LEDs | Ethernet ✓ |
| Button | (1) Factory-reset |
| ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel, SRRC |
| Software | |
| Application Requirements | Mobile App: UniFi iOS™ and Android™ (Version 10.17.2 and later) |
FAQs
Q: What is the Ubiquiti UniFi Cloud Gateway Max and what is it used for?
A: The UniFi Cloud Gateway Max is a high-performance UniFi appliance that combines multi-gigabit routing, advanced firewall security, VPN, and SD-WAN features for modern business networks.
Q: What firewall and security capabilities does the UniFi Cloud Gateway Max include?
A: It offers enterprise-grade firewall protection with intrusion detection and prevention (IDS/IPS), deep packet inspection (DPI), and advanced threat management tools.
Q: Does the UniFi Cloud Gateway Max support VPN and SD-WAN?
A: Yes, it supports both site-to-site and client VPNs along with SD-WAN functionality, ensuring secure and reliable connectivity across multiple business locations.
Q: What kind of performance does the UniFi Cloud Gateway Max deliver?
A: The device provides multi-gigabit routing capacity with low latency, making it ideal for high-bandwidth environments where speed and reliability are critical.
Q: Is the UniFi Cloud Gateway Max scalable for growing networks?
A: Absolutely. It integrates seamlessly with the UniFi Network Application, allowing centralised management of additional UniFi access points, switches, and security devices.
