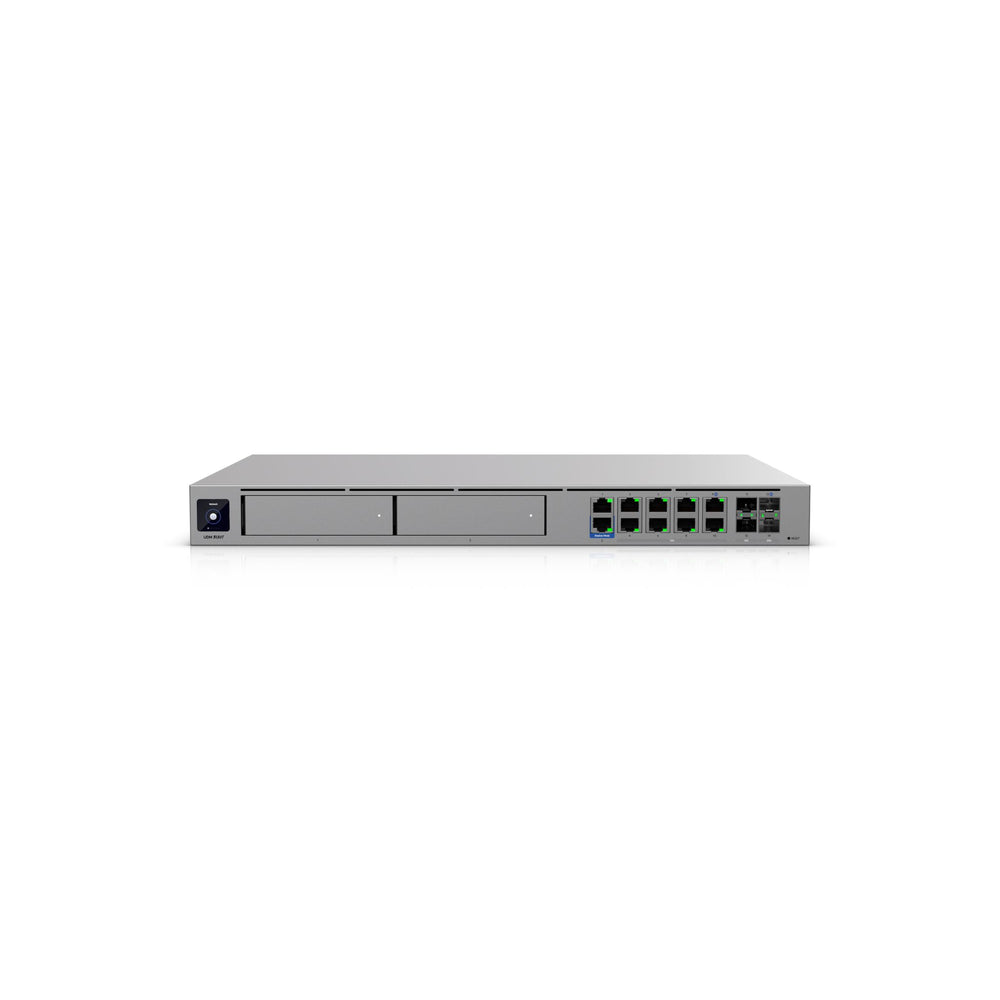

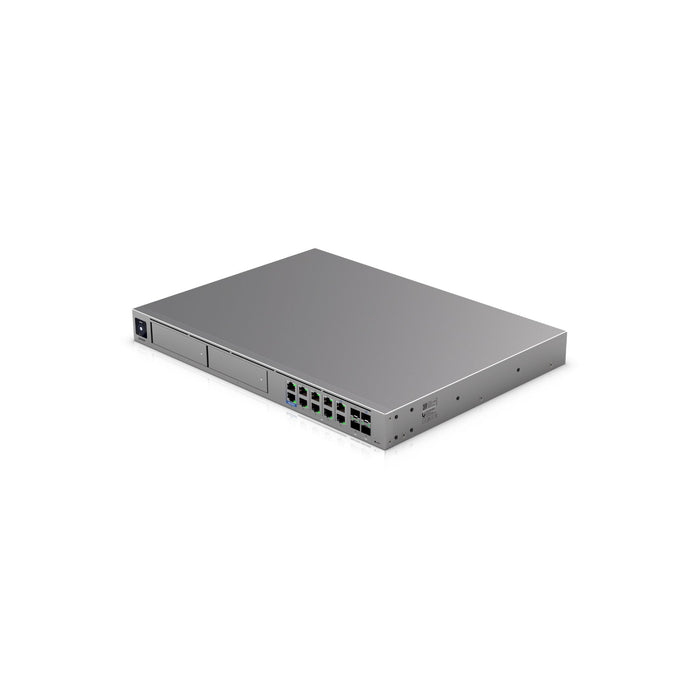

Ubiquiti UniFi Dream Machine Beast
Ubiquiti UniFi Dream Machine Beast – Hyperscale Cloud Gateway with 25G IDS/IPS
The Ubiquiti UniFi Dream Machine Beast is a hyperscale-class cloud gateway built for extreme performance, advanced security, and full UniFi application support. Designed for large-scale networks, it supports 750+ managed UniFi devices and more than 7,500 connected users, making it suitable for enterprise campuses, high-density sites, and demanding multi-site deployments.
With 25G SFP28, 10G SFP+, and 10 GbE RJ45 connectivity, the Dream Machine Beast is ready for high-bandwidth clients, core uplinks, and data-intensive applications. Multi-WAN support across up to eight WAN ports enables intelligent failover, traffic distribution, and performance monitoring across complex networks.
For resilience, it supports Shadow Mode High Availability, DC power backup, and dual-bay 3.5" redundant NVR storage protection. With 25 Gbps IDS/IPS throughput, it can detect and block threats in real time while maintaining high-speed performance across inbound and outbound traffic.
Tech Specs
View the full UniFi Dream Machine Beast datasheet here.
| Device Specifications | |
|---|---|
| NVR Storage | (2) 3.5" NVR HDD bays Built-in 128 GB SSD for faster experience |
| Max. Power Consumption | 100 W |
| Power Method | (1) Universal AC input: 100–240 V AC, 3 A max., 50/60 Hz (1) USP-RPS DC input: 11.5 V DC, 13.05 A |
| Power Supply | Internal AC/DC, 150 W |
| Supported Voltage Range | 100–240 V AC |
| Heat Dissipation | 342 BTU/hr |
| Processor | Octa-core ARM v9 at 2.1 GHz |
| System Memory | 16 GB |
| On-board Storage | Integrated 128 GB SSD |
| Weight | 5.5 kg (12.13 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet Bluetooth |
