MSDist Ubiquiti 10G Bidirectional Single-Mode Optical Module UACC-OM-SM-10G-S Pair LC
MSDist Ubiquiti 10G Bidirectional Single-Mode Optical Module UACC-OM-SM-10G-S Pair LC

Ubiquiti Optical Module Single-Mode Module, 10Gbps

by Ubiquiti
Excl. VAT: £130.20 Incl. VAT: £156.24
SKU UACC-OM-SM-10G-S-2
17 in stock

The 10 Gbps Bidirectional Single-mode Optical Module is a simplex transceiver that delivers up to 10 Gbps speed over distances up to 10 kilometres.

Tech Specs

Click here for the Ubiquiti Optical Module Single-Mode Module datasheet.

Device Specifications
Overview
Form Factor SFP
Connector Simplex LC UPC
Supported Media Single-Mode Fiber
BiDi ✓
TX Wavelength Blue latch: 1270 nm
Red latch: 1330 nm
RX Wavelength Blue latch: 1330 nm
Red latch: 1270 nm
Supported Data Rate 1 / 10 Gbps
Supported Cable Distance 10 km (6.2 mi)
Max. Power Consumption 1 W
Pack Options 2-Pack
20-Pack
Ambient Operating Temperature 0 to 70° C (32 to 158° F)
WARNING CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014
Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
NDAA Compliant ✓



FAQs

Q1: What is the Ubiquiti UACC-OM-SM-10G-S?
A1: The UACC-OM-SM-10G-S is a bidirectional SFP+ transceiver module designed for 10Gbps data transmission over single-mode fiber. It utilizes Wavelength Division Multiplexing (WDM) technology, transmitting on a 1270 nm wavelength and receiving on a 1330 nm wavelength, enabling full-duplex communication over a single fiber strand.

Q2: What are the key specifications of the UACC-OM-SM-10G-S?
A2: Key specifications include:

  • Data Rate: 10 Gbps

  • Connector Type: Simplex LC UPC

  • Transmission Distance: Up to 10 km (6.2 miles)

  • Wavelengths: 1270 nm (TX) / 1330 nm (RX)

  • Power Consumption: Maximum 1 W

  • Operating Temperature Range: 0°C to 70°C (32°F to 158°F)

  • Form Factor: SFP+

Q3: How does the UACC-OM-SM-10G-S differ from other SFP+ modules?
A3: Unlike standard SFP+ modules that require two fiber strands for transmit and receive paths, the UACC-OM-SM-10G-S employs bidirectional (BiDi) technology, allowing both transmit and receive functions over a single fiber strand. This reduces cable requirements and simplifies installation.

Q4: What applications are suitable for the UACC-OM-SM-10G-S?
A4: The UACC-OM-SM-10G-S is ideal for high-speed, long-distance networking applications such as:

  • Connecting remote network segments in enterprise environments

  • Establishing links between data centers or server rooms

  • Integrating with UniFi switches and routers to expand network reach

Q5: What is included in the UACC-OM-SM-10G-S package?

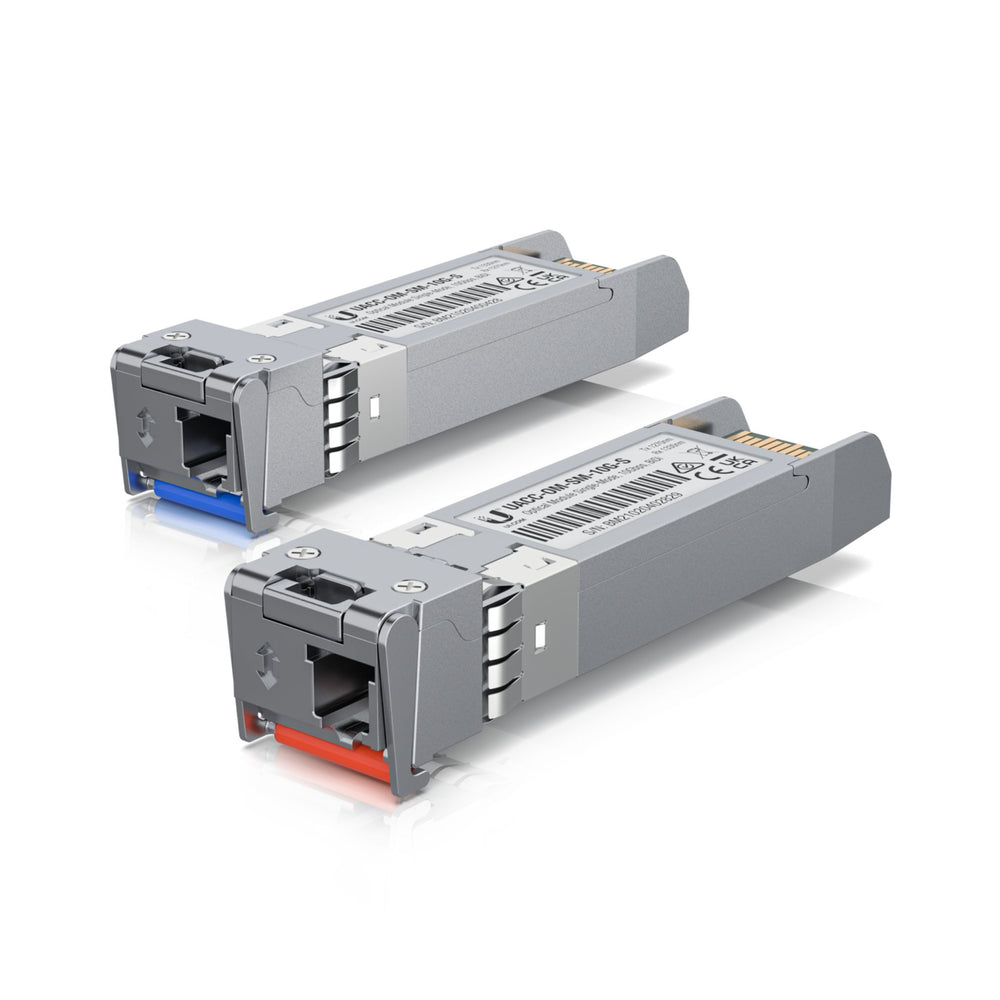

A5: The UACC-OM-SM-10G-S is typically sold in pairs, with each package containing two modules—one with a blue latch (transmitting on 1270 nm) and one with a red latch (transmitting on 1330 nm). This pairing is necessary for proper bidirectional communication.
