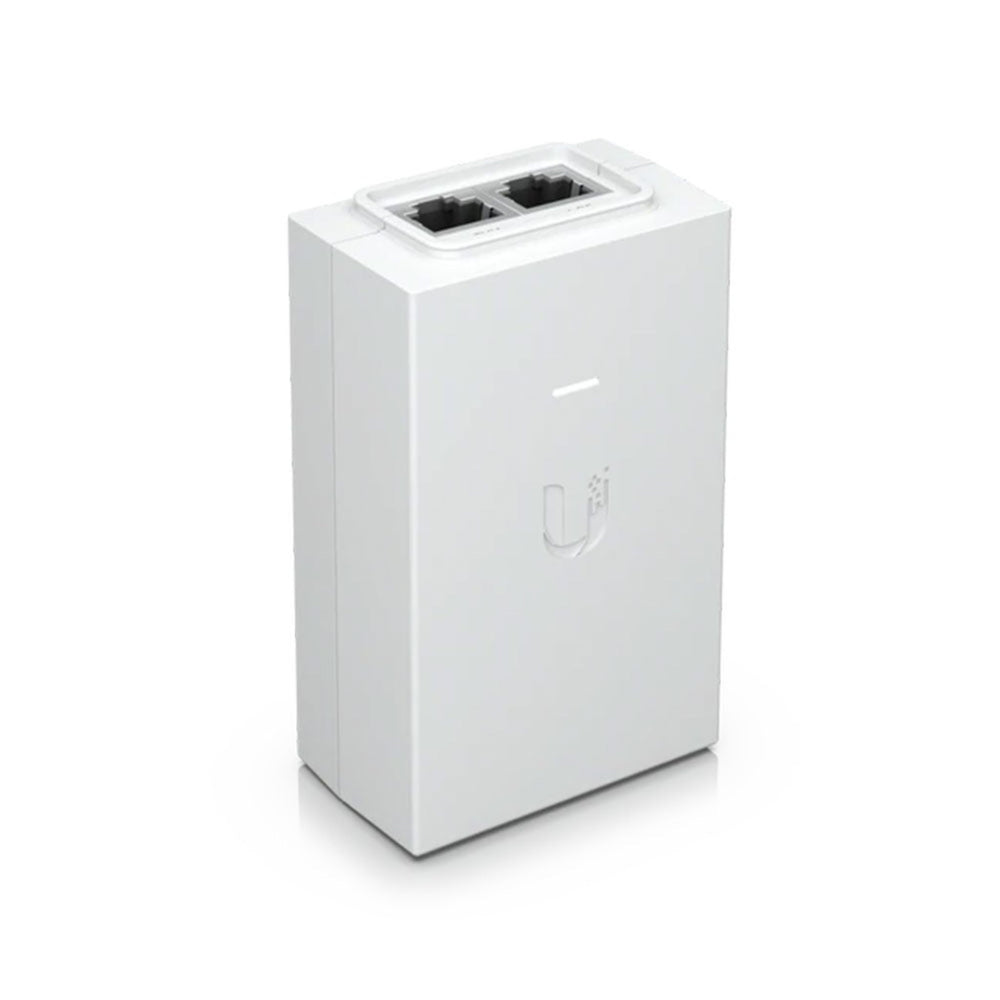

Ubiquiti 10/100/1000 24v 1250mA PoE Injector White (2-Pair)
24v 1250mA Power over Ethernet injector for use with a variety Ubiquiti products. Please note this PoE injector uses two pairs to send power, unlike the black variant, which uses four.
Tech Specs
| Device Specifications | |
|---|---|
| Model | POE-24-30W-G-WH |
| Dimensions | 94 x 60 x 33 mm (3.70 x 2.36 x 1.30") |
| Weight | 156 g (5.5 oz) |
| Output Voltage | 25VDC @ 1.25A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC 0.4A @ 240VAC |
| Inrush Current | <60A Peak @ 120VAC <120A Peak @ 230VAC |
| Efficiency | 83+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | - |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / PoE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
| Shunt Capacitance | <5 pF Data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | Yes |
FAQs
Q1: What is the Ubiquiti POE‑24‑30W‑G‑WH used for?
A: It’s a PoE injector that injects 24 V DC power over Ethernet, allowing you to power compatible PoE devices (e.g. Ubiquiti access points) over a single Ethernet cable — combining both data and power delivery.
Q2: What are the electrical output specifications of the injector?
A: The injector outputs 24 V DC at up to 1.25 A, delivering a total power of 30 W to the connected PoE device.
Q3: What are the input requirements for the POE‑24‑30W‑G‑WH?
A: It accepts a standard mains AC input of 100–240 V AC (50/60 Hz) via the included power cable.
Q4: What kind of network port and data speeds does it support?
A: It provides a Gigabit Ethernet RJ45 port for data passthrough + PoE, ensuring full 1 Gbps network capability to the powered device.
Q5: What environmental and safety protections does the injector include?
A: The unit incorporates surge protection, clamping protection, and is designed with shielding for its RJ45 port. It supports operating conditions from 0 °C to 40 °C, and storage from –30 °C to +70 °C, with non‑condensing humidity tolerance.
